A2Z TruView T-DVR32D 32 channel DVR 960fps D1

  • A2Z TruView T-DVR32D 32 channel DVR System Real-time 960fps D1

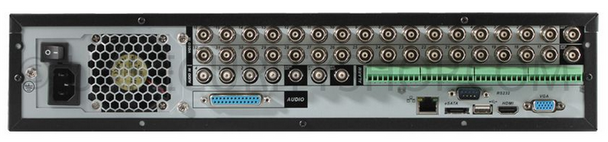

  • A2Z TruView T-DVR32D 32 channel DVR rear panel
  • A2Z TruView T-DVR32D 32 channel DVR SPEC PG 1
  • A2Z TruView T-DVR32D 32 channel DVR SPEC PG 2
  • A2Z TruView T-DVR32D 32 channel DVR connection diagram
No Longer Available - Contact Us

Product Description

A2Z TruView T-DVR32D 32 channel Digital Video Recorder is a high-end Linux embedded DVR system for professional CCTV video security. The unit allows 960fps Real-time D1 High Resolution recording and uses the latest H.264 compression methods. Its Linux OS and Dual Core processor create a powerful and reliable pentaplex DVR solution for a wide range of video surveillance systems. The units local and remote monitoring abilities are comprehensive at the price is outstanding. This 32 channel DVR is a top choice for an all-around feature rich unit with excellent price versus performance ratio.

The hardware of the A2Z TruView T-DVR32D DVR is well designed offering complete integration with all the typical forms of devices including support for Two Way Audio, I/O interface and RS-485 PTZ Camera control. The units accommodates local viewing with HMDI output and optional VGA or TV output while also providing three spot monitor connections. The built-in DVD-RW, USB ports and even eSATA port also offer easy back up. Full system control via front DVR panel, IR remote or mouse and keyboard are all possible. Remote viewing is equally satisfying with all forms of video monitoring including web browser, remote client software, CMS and mobile viewing is achievable. All of this with in-depth functionality and effective, easy to use design.

On-board Storage is also outstanding, up to 24TB can be supported in six SATA internal Drive slots and up to 16TB more can be supported via the eSATA connection. The Digital Video Recorder includes all sorts of advantages from Privacy masking to multiple network protocol support for maximum versatility. The T-DVR32D DVR is an exceptional choice for security camera systems concentrated on the best performance, features and cost.

A2Z TruView T-DVR32D Main Features:

  • Dual Core Embedded OS Linux DVR
  • 32 Channel Video Input
  • H.264 video Compression dual-streaming
  • 960FPS Real-time at D1 High Resolution (4CIF)
  • 1080P HD Live Display via HDMI output
  • Two Way Audio Communication: 16 inputs/ 1 output
  • Local Display Support HDMI, VGA, TV and BNC Spot Monitor
  • Easy back-up with USB Devices, eSATA Devices, DVD-RW or Network options
  • Multiple Record Modes: Schedule, Manual, Alarm, Motion Detection, Stop
  • Search Modes: Time/Date, Alarm, Motion Detection, Exact Search, Smart Search
  • Full Playback options including rewind, fast forward, slow motion and digital zoom
  • Intelligent Event Triggers, PTZ Camera, Tour, Email, FTP, SPOT, Buzzer, etc.
  • Remote Video Monitoring: Web Viewer, CMS (DSS/PSS) and DMSS
  • Complete Mobile viewing with Android, IPad, IPhone, and Windows Phone
  • Six (6) SATA Internal Hard Drive Slots for up to 24TB* and One (1) eSATA for up to 16TB*
  • I/O communications Alarm Interface: 16 Inputs and 5 Outputs
  • RJ-45 (10M/100M/1000M) Gigabit LAN with multiple network protocol methods supported
  • USB interface 2 USB 2.0, RS-232 PC communication and Keyboard, RS-485 PTZ Camera Control
  • 1TB HDD DEFUALT - Alternate HArd Drive Sizes Available 2TB, 3TB, 4TB, 6TB, 8TB, 12TB, etc. (contact A2Z sales)
