Description
The A2Z AZMSMB-1L81D is a professional-grade 8MP UHD mini CCTV security camera equipped with a 2.8~12mm manual varifocal lens for flexible adjustment of viewing angles. It features the Sony STARVIS IMX515 sensor and EYENIX EN781 ISP to deliver ultra-sharp 3840 x 2160 (4K) video at 15fps. The device also provides exceptional low light performance making it highly adaptable to many scenarios.
Standard models output AHD, TVI, CVI, and CVBS, while an optional version supports EX-SDI and HD-SDI. This allows the unit to easily adapt to new HD CCTV systems, legacy analog CCTV systems or other video solutions. The compact powerhouse further includes a full set of video enhancement tools: D-WDR, defog, mirror, shading, motion detection, and multilingual OSD.
Its compact 36mm housing is ideal for indoor installations requiring ultra high-resolution and precise lens control—such as transactional areas or detailed scene coverage in tight spaces.
Key Features
- 8MP UHD 3840x2160 @ 15fps
- 1/2.8” Sony STARVIS CMOS (IMX515)
- Manual Varifocal 2.8~12mm Lens
- AHD / TVI / CVI / CVBS (EX-SDI optional)
- D-WDR, Motion Detection
- Shading, Defog, Flip, Mirror
- Compact 36mm Mini Body
- Min. Illumination B/W: 0.007 Lux
- OSD Menu, DC12V
- NDAA and TAA Compliant
- Made in Korea
Specifications Summary
Video & Display
Sensor: 1/2.8” 8.40MP Sony STARVIS CMOS
Max Resolution: 3840 x 2160 (8MP)
Frame Rate: 15fps
Output: AHD / TVI / CVI / CVBS (EX-SDI optional)
Lens: Manual Varifocal 2.8~12mm
Min. Illumination: 0.07 Lux (Color), 0.007 Lux (B&W)
Recording & Playback
Motion Detection: 24 Zone
OSD: Yes
Shading / DNR / WDR / Flip: Supported
Shutter: 1/30 ~ 1/30,000 (NTSC)
Power, Environmental, Mechanical
Power: DC12V ±10%
Consumption: 180mA
Temp: -10°C ~ +50°C

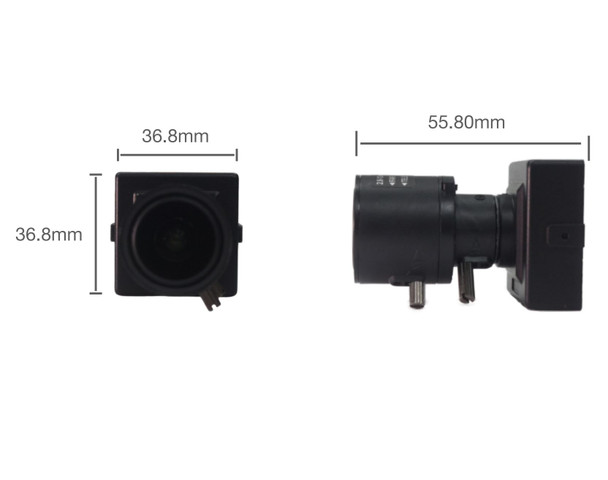

Dimensions: 36mm x 36mm
Weight: 0.15kg
