Description
The A2Z AZMSCB-1L81D brings 8MP ultra-HD resolution to the miniature security camera class. Engineered with a 1/2.8” Sony STARVIS CMOS (IMX515) and powered by the EYENIX EN781 ISP, it captures stunning 3840 x 2160 (4K) video at 15fps or lower resolutions in downscale modes.
Primary video output formats include AHD, TVI, CVI, and CVBS for CCTV video security systems. Special versions offer EX-SDI and HD-SDI outputs for expanded integration. A fixed 3.6mm pinhole lens combined with a tiny 36mm housing provides the ideal combination for concealed or covert custom solutions with highly detailed monitoring.
The security camera includes a full suite of image enhancements and smart functions scuh as D-WDR, shading, defog, motion detection, and multi-language OSD. Rugged, efficient, and made in Korea, the AZMSCB-1L81D is ideal for financial kiosks, transportation, industrial environments and so much more.
Key Features
- 8MP 4K UHD (3840x2160) @ 15fps
- 1/2.8” Sony STARVIS CMOS Sensor (IMX515)
- Standard AHD / TVI / CVI / CVBS output (EX-SDI optional)
- 3.6mm Fixed Pinhole Lens
- Wide Dynamic Range, Defog, Shading
- Privacy Masking & Motion Detection
- Full OSD Menu with Language Options
- Compact Metal Body – 36x36mm
- Efficient DC12V Power Use
- NDAA and TAA Compliant
- Made in Korea
Specifications Summary
Video & Display
Sensor: 1/2.8" Sony CMOS (8.40MP)
Max Resolution: 3840 x 2160 (8MP / 4K) @ 15fps
Output: AHD / TVI / CVI / CVBS (EX-SDI / HD-SDI optional)
Downscale Modes: 1440P / 1080P
Min. Illumination: 0.12 Lux (Color), 0.012 Lux (B/W)
Recording & Playback
OSD Menu: Built-in
Electronic Shutter: 1/30 ~ 1/30,000 (NTSC)
Defog, D-WDR, Shading, Flip/Mirror: Supported
Motion Detection: 24-Mask Zones
Privacy Masking: Yes
Power, Environmental, Mechanical
Power: DC12V ±10%
Consumption: 180mA
Operating Temp: -10°C ~ +50°C

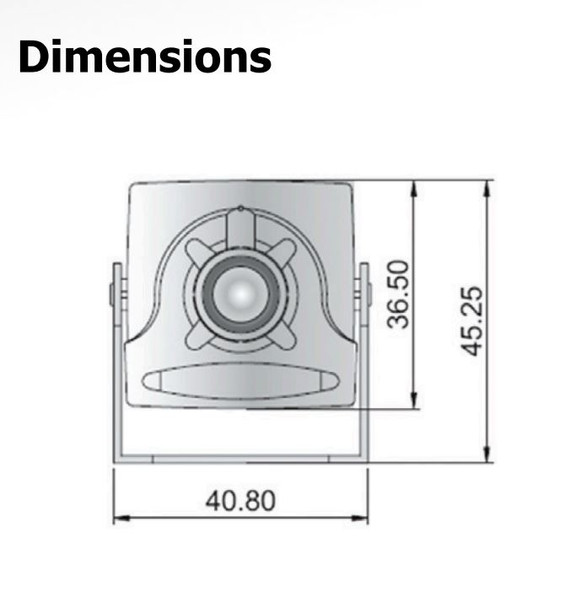

Housing: 36mm x 36mm
Weight: 0.15kg
