Description

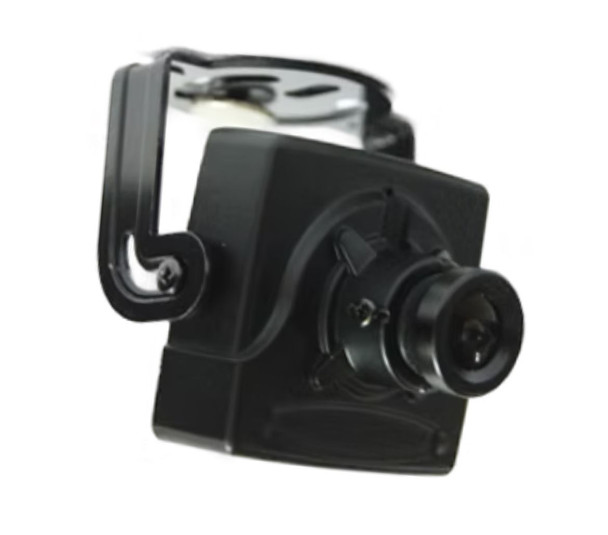

The AZMSFB-1G81D from A2Z offers 4MP QHD video surveillance performance in a micro-form metal housing. Using the high-sensitivity Sony STARVIS IMX335 CMOS and the EYENIX EN781 image processor, it supports resolutions up to 2560x1440 (QHD or 2K) with advanced functions despite its miniature size.
This camera outputs to AHD, TVI, CVI, and CVBS formats for seamless use in modern or legacy coaxial security camera systems. Optional EX-SDI and HD-SDI signal support is available in special models. A 3.6mm fixed board lens and strong aluminum body make it ideal for discreet placements like kiosks or embedded environments.
Rich video features include D-WDR, defog, shading, OSD menu, privacy masking, motion detection, and mirror/flip functions. With low light performance down to 0.015 Lux and intuitive setup options, the AZMSFB-1G81D is a versatile compact CCTV security camera made with the finest quality in Korea.
Key Features
- 4MP (2560x1440) QHD Resolution
- 1/2.8” Sony STARVIS CMOS (IMX335)
- AHD / TVI / CVI / CVBS (EX-SDI optional)
- Fixed 3.6mm Lens
- D-WDR, Defog, Motion Detection
- Privacy Masking, Flip, Mirror
- Multi-language OSD Interface
- Compact 36mm Aluminum Square Housing
- DC12V Low Power Draw
- NDAA and TAA Compliant
- Made in Korea
Specifications Summary
Video & Display
Sensor: 1/2.8” 5.14MP Sony STARVIS CMOS
Resolutions: 1MP / 2MP / 4MP
Output: AHD / TVI / CVI / CVBS (EX-SDI optional)
Min. Illumination: 0.15 Lux (Color), 0.015 Lux (B/W)
Recording & Playback
Motion Detection: 24 Zones
Shutter: 1/30 ~ 1/30,000 (NTSC)
DNR, WDR, Defog, Shading: Supported
OSD: Yes
Power, Environmental, Mechanical
Power: DC12V ±10%
Consumption: 150mA
Temp: -10°C ~ +50°C
Dimensions: 36mm x 36mm
Weight: 0.15kg
