Description

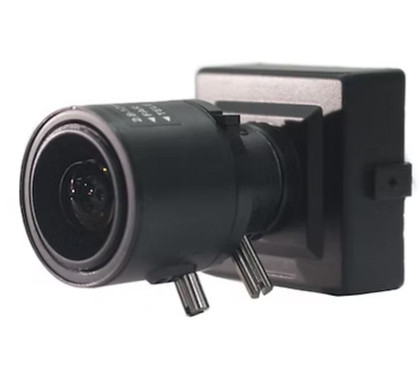

The A2Z AZMSFB-1D71D delivers 2MP full HD CCTV video performance in an ultra-compact form factor. Using the Sony STARVIS 1/2.9” CMOS sensor (IMX323) and EYENIX EN771T ISP, this mini camera produces up to 1080p video at up to 30fps with exceptional clarity and low-light sensitivity.
Its primary output formats include AHD, TVI, CVI, and CVBS, ensuring smooth integration with existing legacy or modern security camera systems. Special versions supporting HD-SDI or EX-SDI are also available for expanded compatibility.
Packed into a durable 36mm x 36mm die-cast housing and equipped with a 3.6mm fixed board lens, it is an ideal solution for tight or semi-hidden surveillance points. Enhanced imaging options include D-WDR, motion detection, privacy zones, and defog functions.
Key Features
- 2MP Full HD 1080p Video
- 1/2.9” Sony STARVIS CMOS Sensor (IMX323)
- Coaxial Video Output: AHD, TVI, CVI, CVBS (EX-SDI/HD-SDI optional)
- Ultra Low Light Sensitivity – 0.014 Lux B/W
- D-WDR, Defog, Motion Detection
- Fixed 3.6mm Board Lens
- Multi-language OSD Menu
- Energy Efficient – 12V DC
- Compact Size – 36mm x 36mm (camera body)
- NDAA and TAA Compliant
- Made in Korea
Specifications Summary
Video & Display
Sensor: 1/2.9” 2.1MP Sony STARVIS CMOS
Resolution: 1920 x 1080
Output: AHD / TVI / CVI / CVBS (EX-SDI/HD-SDI optional)
Frame Rate: 25/30fps
Min. Illumination: 0.14 Lux (Color), 0.014 Lux (B&W)
Recording & Playback
OSD Menu: Built-in
Shutter: 1/30 ~ 1/30,000 (NTSC)
Motion Detection: 4 Zones
DNR / BLC / HLC / WDR: Supported
Privacy Masking: 16 Zones
Power, Environmental, Mechanical
Power: DC12V ±10%
Consumption: 100mA
Temp: -10°C ~ +50°C
Dimensions: 36mm x 36mm (camera body)
Weight: 0.15kg
