Description
The Milesight MS-N5008-E is a robust and NDAA-compliant 8-channel professional NVR designed for advanced 4K surveillance deployments. Featuring H.265+/H.265/H.264+/H.264 video codec support, the NVR significantly reduces bandwidth and storage needs without compromising image quality. Built to handle incoming/outgoing bandwidths of 80Mbps, it supports high-resolution IP cameras for more than simply live viewing and playback. The device offers A.I. video content analysis support for Milesight AI powered security cameras including LPR (license plate recognition) management when paired with Milesight LPR enabled IP cameras.

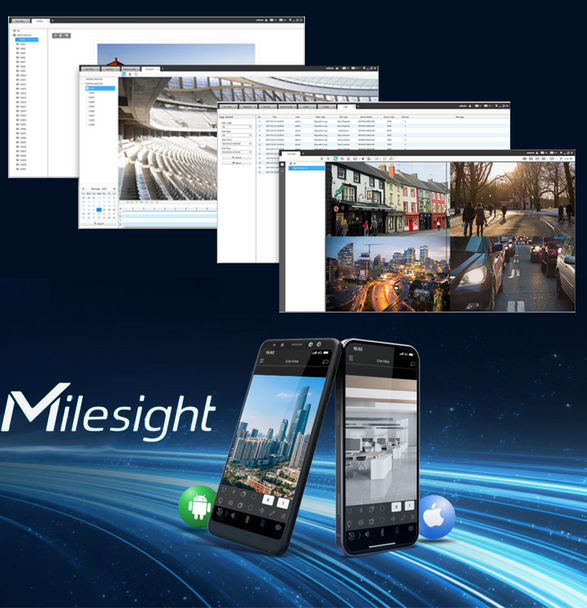

The Milesight 5000 series Network Video Recorders further provide diverse remote video system management with web browser, PC CMS software and mobile applications. From HTML5 plug-in free web browser operation to intelligent detections and search actions, the Milesight NVR offers cutting edge pro video security at a competitive cost.
It features 1 HDMI port supporting up to 3840×2160 resolution, ensuring crystal-clear display output. The system supports advanced video analytics (VCA), ANR for uninterrupted video backup on edge storage, and ONVIF (Profile S/G/T) for universal camera integration. With dual SATA ports supporting up to 10TB each, this compact and reliable recorder is perfect for business environments needing streamlined, NDAA-compliant solutions.
✨ Key Features
- 8CH IP camera input with H.265+/H.264+ support
- NDAA-compliant components
- HTML5 H.265 Streaming
- AI VCA & LPR Management
- HDMI output up to 3840×2160 (4K)
- 80 Mbps incoming/outgoing bandwidth
- 2 SATA ports with up to 10TB HDD capacity each
- Dual USB ports for export/backup
- Supports Milesight Smart VCA events
- ONVIF Profile S/G/T compatibility
- Compact and fanless design
- Embedded Linux OS
✨ Specifications Summary
System
- OS: Embedded Linux
- IP Video Input: 8CH
- Video Codec: H.265+/H.265, H.264+/H.264
- Bandwidth: 80Mbps (in/out)
- VCA: Supports Smart VCA event playback
Video & Display
- Output: 1× HDMI (3840×2160 max)
- Display Split: 1/4/8
- OSD: Camera name, motion, alarm, video loss
Recording & Playback
- Recording: Manual, Schedule, Event
- Playback: 8CH simultaneous
- Smart Search: By event/time
Storage
- HDD Bays: 2× SATA (up to 10TB each)
- ANR: Supported
- Backup: USB/NAS/FTP
Network & Protocols
- LAN: 1× RJ45 (10/100/1000Mbps)
- Protocols: TCP/IP, HTTP, HTTPS, SMTP, UPnP, etc.
- ONVIF: Profiles S, G, T
Audio
- Codec: G.711/AAC/G.722/G.726
Interface & Ports
- USB: 1× USB 3.0, 1× USB 2.0
- Alarm: 4 In / 1 Out
- RS485: 1× port
Mechanical
- Dimensions: ~300mm × 248mm × 50mm
- Weight: ~2.5kg
- Construction: Metal Housing
Power & Environmental
- Power: DC 12V / 3A
- Operating Temp: -10°C to +55°C
- Humidity: 10% to 90% RH
