Description
The MS-N1008-UNPC from Milesight is a sleek and ultra-compact 8-channel 4K 4 PoE NVR built for environments requiring full IP surveillance capabilities without bulky equipment. This unit supports powerful 4K UHD HDMI output and efficient H.265+/H.265 compression technologies, delivering outstanding video clarity with reduced storage needs.

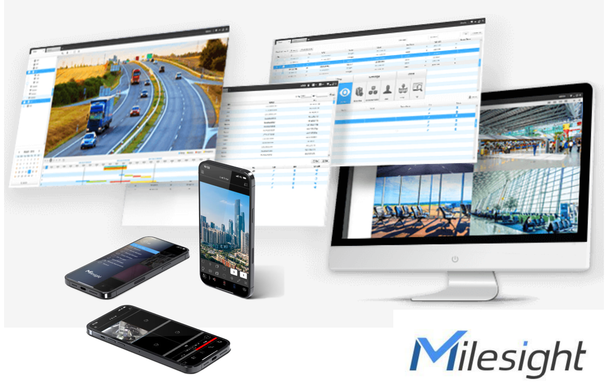

This compact yet powerful Mini NVR delivers state of the art functionality including support for Milesight AI security cameras and their video content analysis to convenient connectivity like HTML5 plug-in free web browser streaming or P2P easy remote connection. The unit also supports Milesight CMS PC Software and Mobile Applications to local display for comprehensive viewing and management options.
It features ANR support for backup video on the camera’s local storage in case of network interruption, dual USB 2.0 ports for export and control, and a SATA interface that allows up to 10TB of internal storage. This compact form factor (115mm × 115mm × 180mm) fits even in tight spaces without sacrificing performance. including a built-in 4-port PoE Network Switch the device easily accommodates direct connection of up to four IP Cameras.
✨ Key Features
- 8CH IP video input with 4K resolution
- HDMI output up to 3840×2160/30Hz
- 80 Mbps total bandwidth
- Embedded Linux OS with Milesight GUI
- 4 Port PoE Built-in
- ANR for redundant edge video storage
- HTML5 H.265 Streaming
- AI VCA Management
- H.265+/H.265/H.264+/H.264 support
- Ultra-compact housing (115×115×180mm)
- 1 SATA HDD up to 10TB
- Dual USB 2.0 for control/export
- ONVIF compliance for integration
✨ Specifications Summary
System
- OS: Embedded Linux
- Input: 8 IP Cameras
- Codec: H.265+/H.265/H.264+/H.264
- Throughput: 80 Mbps
Video & Display
- HDMI Output: 1× up to 3840×2160
- Split: 1/4/8
- Display Overlay: Time/Date, Channel Name
Recording & Playback
- Methods: Manual, Schedule, Alarm/Event
- Simultaneous Playback: 8-CH
- Playback Tools: Frame-by-frame, Backup
Storage
- HDD: 1× SATA 3.5”, up to 10TB
- ANR Support: Yes
Network & Protocols
- Interface: 1× RJ45 10/100Mbps
- PoE Interface: 4*RJ45 10/100Mbps, ≤40W, IEEE 802.3af/at
- Protocols: TCP/IP, HTTP, HTTPS, NTP, ONVIF (S/G/T)
Audio
- Codec: G.711/AAC/G.722/G.726
- Audio In/Out: N/A
Interface & Ports
- USB: 2× USB 2.0
- LAN: 1× RJ45
- LAN: 4x PoE RJ45
Mechanical
- Size: 115×115×180mm
- Material: Metal & Plastic
- Weight: ~0.85kg
Power & Environmental
- Power Input: DC 12V, 2A
- Consumption: <10W (No HDD)
- Operating Temp: -10°C to 55°C
- Humidity: 10–90%
