Description

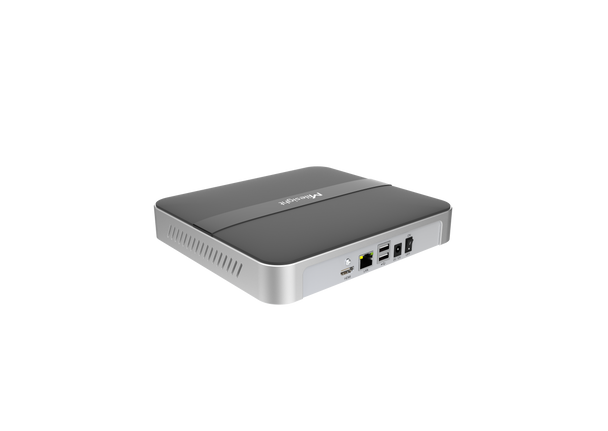

The Milesight MS-N1004-UC is a compact 4-channel 4K H.265 mini network video recorder designed to deliver robust performance in space-constrained environments. With support for 4K HDMI output, H.265+/H.265/ H.264+ / H.264 compression, and dual stream recording, this NVR ensures smooth video management across modern surveillance systems. Users gain full access to Milesight CMS PC software, M-Sight Pro Mobile Apps and state of the art HTML5 H.265 plug-in free web browser streaming to ensure it. Even advanced AI video content analysis is supported when used with Milesight's many AI powered IP Cameras.
It features Automatic Network Replenishment (ANR), allowing for backup recording directly on the camera’s SD card when the network is down. Upon reconnection, recorded footage is automatically transferred to the NVR. Its support for up to 10TB of internal HDD capacity provides extended archiving, while dual USB 2.0 ports and standard 10/100Mbps Ethernet offer flexible peripheral and network connectivity.
Engineered with efficient heat dissipation and a small footprint (220mm × 200mm × 43.6mm), the MS-N1004-UC NVR is a smart fit for retail, office, or residential installations. It supports ONVIF and works with a wide range of IP cameras for flexible deployment.
✨ Key Features
- 4-channel network video input
- 40 Mbps incoming & outgoing bandwidth
- Supports H.265+/H.265/ H.264+/H.264 compression
- HDMI output up to 3840×2160 resolution
- HTML5 H.265 Streaming
- AI VCA Management
- ANR for continuous video protection
- Ultra-compact metal housing with smart ventilation
- Dual USB 2.0 ports for backup/export
- 1 SATA HDD bay, up to 10TB
- ONVIF compliance for wide compatibility
- Intuitive browser-based and client-side software
- Optional 4 Port PoE Enabled Version MS-N1004-UPC Also Available
✨ Specifications Summary
System
- OS: Embedded Linux
- Video Input: 4-CH
- Compression: H.265+/H.265/ H.264+/H.264
- Max Recording Bandwidth: 40Mbps
Video & Display
- HDMI Output: 1x HDMI (3840×2160/30Hz, 1920×1080, etc.)
- Display Split: 1/4
- OSD: Time, Channel Name, Motion Detection, etc.
Recording & Playback
- Recording Mode: Manual, Scheduled, Event-based
- Playback Channel: 4-CH simultaneous
- Playback Function: Play, Pause, Stop, Fast Play, Backup
Storage
- HDD: 1× SATA, up to 10TB
- File Format: Proprietary .avi
Network & Protocols
- Interface: 1× RJ45 10/100Mbps
- Protocols: TCP/IP, HTTP, DHCP, PPPoE, etc.
- ONVIF Profile S, G, T
Audio
- Compression: G.711/AAC/G.722/G.726
- Two-way audio support
Interface & Ports
- USB: 2× USB 2.0
- Alarm I/O: N/A
Mechanical
- Dimensions: 220mm × 200mm × 43.6mm
- Weight: ~0.9kg
- Construction: Metal casing
Power & Environmental
- Power: DC 12V, 2A
- Power Consumption: <10W (without HDD)
- Temp: -10°C to +55°C
- Humidity: 10%–90% RH
