Description
The Hanwha Vision XRN-426S-1T is a compact yet feature-rich 4-channel AI NVR built for small-to-medium surveillance environments. Featuring built-in AI search when paired with Hanwha AI cameras, this NVR enables object attribute-based searches to streamline investigations. It supports resolutions up to 8MP and up to 40Mbps of recording bandwidth, making it an ideal edge device.
Equipped with 4 PoE ports for direct camera connectivity, a pre-installed 1TB SSD, and an HDMI output capable of 4K resolution, the XRN-426S-1T balances performance and simplicity. It supports mobile and remote viewing, N+1 failover redundancy, and is compatible with popular software platforms including WAVE, SSM, and Wisenet Viewer.
Designed for ease of use, this model includes QR code setup via P2P and supports all major video formats and protocols.
✨ Key Features:
- 4CH input up to 8MP per camera
- H.265, H.264, MJPEG codec support
- Built-in 1TB SSD, M.2 slot
- HDMI output: 4K (3840x2160)
- AI search with object attribute support
- 4 PoE ports (10/100 Mbps)
- 2-Way Audio and PTZ control support

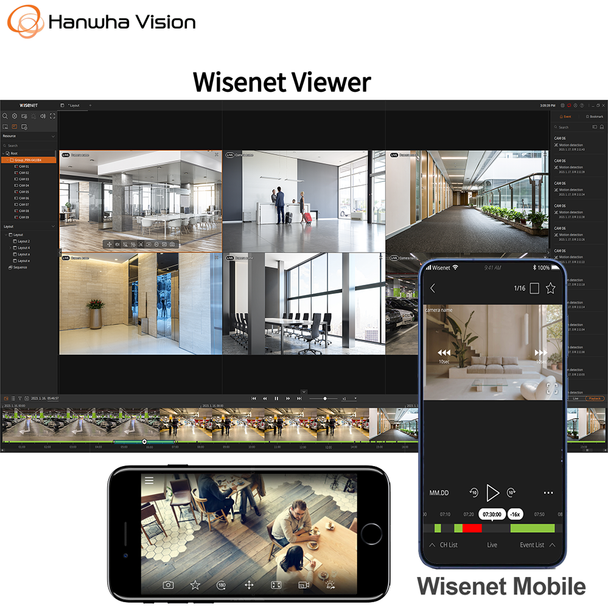

- Web/mobile monitoring with SSM, WAVE, and Viewer
- N+1 failover and ARB supported
- Wi-Fi dongle supported (for setup)
✅ Specifications Summary:
✨ Video & Display:
- Max Resolution: 8MP
- HDMI Output: 3840x2160 (30Hz)
- Multi Screen: Up to 4 Divisions
✨ Recording & Playback:
- Max Bandwidth: 40Mbps
- Modes: Continuous/Event, Schedule, Bookmark
- Smart Search: Time/Event/Text/ARB
- Playback Bandwidth: 32Mbps, Max 16CH (4CH local, 4CH remote)
⚖️ Storage:
- Storage: 1TB SSD (pre-installed)
- Slot: M.2 SSD 1EA
- Backup: Recorder/SEC/AVI/JPG, AVI/PNG (network)
↔️ Network & Protocols:
- Protocols: TCP/IP, RTSP, HTTPS, ONVIF, SUNAPI
- Ports: 4x RJ-45 PoE (LAN), 1x WAN (1Gbps)
- DDNS: Hanwha DDNS
⚡ Audio:
- Input/Output: 4CH (network), 1x RCA out
- Compression: G.711, G.726, AAC
⚠️ System & Security:
- OS: Embedded Linux
- Logs: 100,000
- Security: TLS, Encryption, Signed Firmware
- Users: Max 4 (1 local, 3 remote)
✨ Interface & Ports:
- USB: 2x USB 2.0 (front)
- HDMI: 1x 4K HDMI
- Audio Out: 1x RCA
- Alarm: 4 In / 2 Out
⚡ Power, Environmental, Mechanical:
- Input: 54VDC/1.67A
- Max Power: 68W (PoE enabled)
- PoE Budget: 50W
- Temp: 0°C to +40°C
- Dimensions: 200 x 140 x 42 mm
- Weight: 660g
