Description
The Hanwha Vision WRT-P-3104MW is a compact, high-performance micro VMS workstation purpose-built for Wisenet WAVE VMS environments. Designed to deliver flexible deployment and a reliable video management system, it is preloaded with Windows 11 IoT Enterprise LTSC 2024 and includes Wisenet WAVE VMS pre-installed, allowing users to get up and running quickly. Supporting up to 64 video channels and 470Mbps of recording bandwidth, this system is ideal for small businesses, retail operations, or edge recording nodes in larger environments.
This micro server features a dedicated 256GB M.2 SSD for the OS and a separate M.2 SSD (1TB or 2TB) for video storage. With an Intel Core i3 14th Gen processor and 8GB DDR4 RAM, it delivers smooth and efficient performance even in compact installations. The minimal footprint allows it to sit discreetly in nearly any location, while optional VESA mounting makes it easy to install behind a monitor or display.
Dual video outputs (HDMI + DisplayPort) offer flexibility for local monitoring. Additional I/O includes multiple USB ports, a 3.5mm audio jack, and standard 1GbE LAN connectivity. The system comes bundled with a USB keyboard and mouse, and is backed by a 5-Year, Next-Business-Day, Keep Your Hard Drive (KYHD) Warranty.

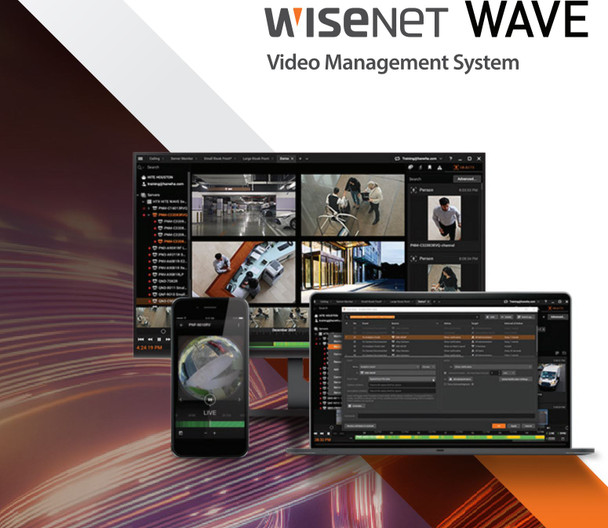

Hanwha's WAVE VMS provides the cutting edge in IP security camera system solutions with diverse interface support from Web, PC Software or Mobile Apps to next generation A.I. functionality and forensic search.
✨ Key Features:
- Preloaded with Wisenet WAVE Client & Tools
- Windows 11 IoT Enterprise LTSC 2024 OS
- Supports up to 64 video channels
- Up to 470Mbps recording bandwidth
- Dedicated 256GB M.2 SSD for OS
- 1TB or 2TB M.2 SSD for video storage
- 8GB DDR4 memory with Intel Core i3 (14th Gen)
- HDMI and DisplayPort outputs
- Compact micro form factor (7.2” x 7” x 1.4”)
- Optional VESA mount support
- Includes USB keyboard and mouse
- 5-Year KYHD, NBD On-Site Warranty
✨ Specifications Summary:
System
- Operating System: Windows 11 IoT Enterprise LTSC 2024
- VMS Software: Wisenet WAVE Client & Tools
- Max Channels: Up to 64
- Max Recording Bandwidth: 45 Mbps
- Processor: Intel Core i3 (14th Gen)
- Memory: 8GB DDR4
- Licenses: 4x WAVE Pro Licenses
- OS Drive: 256GB M.2 SSD
- Storage: 1TB or 2TB M.2 SSD
Network & Display
- LAN: 1x 1GbE RJ45 Port
- Video Outputs: 1x HDMI, 1x DisplayPort
I/O Ports
- Rear USB: 2x USB 3.2 Gen 1, 2x USB 2.0
- Front USB: 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C
- Audio: 1x 3.5mm headset input/output
Mechanical
- Form Factor: Micro Server
- Color / Material: Black, Metal & Plastic
- Dimensions (W x D x H): 1.4” x 7.0” x 7.2” (36mm x 178mm x 182mm)
- Weight: 2.95 lbs (1.34 kg)
- Mounting: Optional VESA Mount
Electrical & Environmental
- Power Input: 100–240V AC
- Power Consumption: 65W
- Operating Temp: 50°F to 95°F (10°C to 35°C)
- Storage Temp: -40°F to 149°F (-40°C to 65°C)
- Humidity: 20%–80% RH (non-condensing)
- Certifications: UL, cUL, CB, FCC
