Description

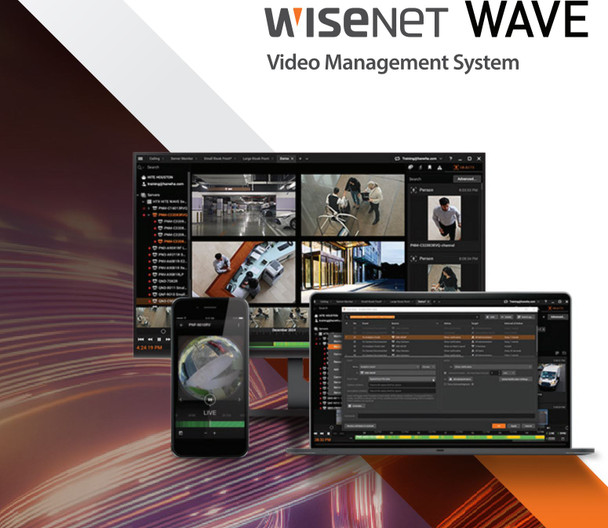

The Hanwha Vision WRT-P-3104 Series is a compact and versatile mini-tower NVR or VMS solution purpose-built for WAVE VMS deployments. Whether deployed in small offices, retail spaces, or distributed environments, this series offers the ideal blend of performance, storage capacity, and platform flexibility. From AI Metadata to intuitive PC software and Mobile application interfaces, the Hanwha WAVE solution delivers top of the line IP surveillance with next generation capabilities.
Available in two OS variants — Windows 11 IoT Enterprise LTSC 2024 (WRT-P-3104W) and Ubuntu Linux 22.04 LTS (WRT-P-3104L) — the series gives users freedom to select their preferred system architecture. Both models are preloaded with Wisenet WAVE and include 4x WAVE Professional licenses, with support for up to 64 IP camera channels and a sustained 170 Mbps of recording throughput.
Internally, these NVRs are powered by Intel 14th Gen Core i3 processors, paired with 16GB DDR4 memory and a dedicated 256GB M.2 SSD for OS operations. Each system features 3x 3.5" SATA drive bays accommodating up to 16TB of raw video storage. Display support includes dual DisplayPort with HDMI adapter, while robust USB/Type-C port combinations enable smooth device integration.
Networking is enhanced with dual Gigabit Ethernet ports (1 onboard + 1 PCIe), and both models are delivered with a USB keyboard, mouse, and a 5-Year NBD KYHD Warranty. Whether you choose Linux or Windows, the WRT-P-3104 Series delivers the performance and reliability professionals demand.
✨ Key Features:
- Choice of OS: Windows 11 IoT (WRT-P-3104W) or Ubuntu 22.04 Linux (WRT-P-3104L)
- Preloaded with Wisenet WAVE VMS + 4x WAVE Professional licenses
- Supports up to 64 IP channels @ 170 Mbps throughput
- 16TB raw video storage via 3x 3.5” SATA HDDs
- 256GB M.2 SSD for OS, 16GB DDR4 RAM, Intel Core i3 CPU
- Dual DisplayPort + HDMI video output
- Rich mix of USB 3.x, USB Type-C, and audio ports
- Includes keyboard, mouse, and rail kit
- Covered by 5-Year On-Site NBD Warranty with KYHD
✨Specifications Summary:
System
- OS Options:
- Windows 11 IoT Enterprise LTSC 2024 (WRT-P-3104W)
- Ubuntu Linux 22.04 LTS (WRT-P-3104L)
- CPU: Intel Core i3 (14th Gen)
- RAM: 16GB DDR4
- VMS: Wisenet WAVE (preloaded)
- Licenses: 4x WAVE Professional
- Max Bandwidth: 170 Mbps
- Max Channels: 64
️Storage
- OS Drive: 256GB M.2 SSD
- Data Drives: 3x 3.5" SATA bays
- Max Capacity: 16TB
Network & Video Outputs
- LAN: 2x 1GbE RJ45 (1 onboard, 1 via PCIe)
- Video: 2x DisplayPort + 1x DP-to-HDMI adapter
USB & Audio
- Rear: 2x USB 3.2 Gen 2, 2x USB 3.2 Gen 2 Type-C, 2x USB 2.0
- Front: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2x2 Type-C
- Audio: 1x 3.5mm front, 1x 3.5mm rear
✨ Mechanical
- Form Factor: Mini Tower
- Color: Black, Metal Construction
- Dimensions: 14.68" x 6.81" x 16.54"
- Weight: 24 lbs
Power & Environment
- PSU: 500W 80 Plus Platinum
- Input: 100–240V AC
- Max Power: 500W
- Operating Temp: 50°F to 95°F
- Storage Temp: -40°F to 149°F
- Humidity: 20% to 85%
- Certifications: UL, cUL, CB, FCC, 80 Plus Gold
