Description

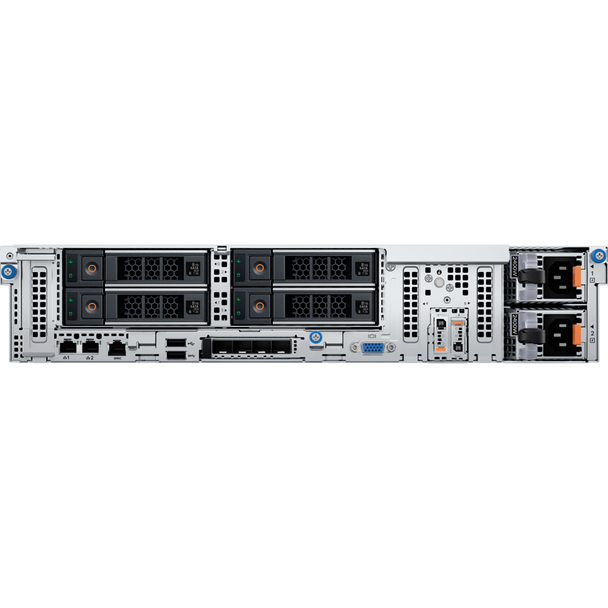

The WRR-P-S206S1 from Hanwha Vision is a performance-driven 2U rackmount WAVE recording server engineered for high-capacity, top tier IP surveillance deployments. Preloaded and configured with Wisenet WAVE VMS, it supports up to 256 channels and a massive 1100 Mbps of recording throughput. This system is ideal for high-bandwidth, multi-site, or enterprise-scale environments. WAVE VMS platform delivers the cutting edge in modern video surveillance offering, from flexible viewing and management to forensic search and AI metadata Hanwha's WAVE offers premium security camera system capabilities.
Internally, it features 64GB DDR5 memory, dual 480GB SSDs in RAID 1 for system reliability, and up to 480TB of raw storage via 28 hot-swappable 3.5" SATA bays. The Hanwha WRR-P-S206S1 VMS Server also integrates redundant power supplies and advanced network connectivity with 2x RJ45 and 2x SFP28 (10/25GbE) interfaces.
Bundled with a sliding rack rail, cable management arm, keyboard, and mouse, the server simplifies deployment. It runs on Microsoft Windows Server 2022 Standard and includes 4 WAVE Professional licenses. IPMI management and TPM security features further enhance its operational resilience.
✨ Key Features:
- 2U Rackmount form with Wave VMS preloaded
- Up to 480TB raw storage with RAID 0/1/5/6/10 options
- Supports 256 channels and 1100 Mbps throughput
- 64GB DDR5 RAM and Gold 5416S Processor
- 2x 480GB SSD OS drives in RAID 1
- Redundant 1400W power supplies (80 Plus Platinum)
- IPMI system management for remote monitoring
- Pre-installed Windows Server 2022 Standard
- 4x Wave Pro licenses included
- Sliding rail kit and I/O peripherals bundled
✨ Specifications Summary:
System:
- OS: Windows Server 2022 Standard
- Processor: Intel Xeon Gold 5416S
- RAM: 64GB DDR5
- Video Management: Wisenet WAVE
- Licenses: 4x WAVE Professional
Recording & Storage:
- Bandwidth: Up to 1100 Mbps
- Storage: 28x 3.5” hot-swappable SATA bays
- Max Storage: 480TB raw
- RAID: 0, 1, 5, 6, 10
- OS Drives: 2x 480GB SSD (RAID 1)
Networking:
- Interfaces: 2x RJ45 1GbE, 2x SFP28 10/25GbE
- IPMI Management: Yes
Ports & Peripherals:
- USB: 1x USB 2.0 (Front), 1x USB 2.0 + 1x USB 3.0 (Rear)
- Serial: Yes
- Included: USB Mouse, Keyboard, Sliding Rail Kit with Cable Arm
Security & Certifications:
- TPM: Supported
- Certifications: UL, NOM, RoHS, TUV, GS
Power, Environmental, Mechanical:
- Power Supplies: 2x 1400W 80 Plus Platinum
- Power Input: 100–240V AC
- Heat Dissipation: Max 3001 BTU/hr
- Operating Temp: 50°F to 86°F (10°C to 30.5°C)
- Storage Temp: -40°F to 149°F (-40°C to 65°C)
- Humidity: 10% to 80% RH (non-condensing)
- Dimensions: 18.96” x 32.95” x 3.41” (W x D x H)
- Weight: 102.07 lbs (fully loaded)
