Description

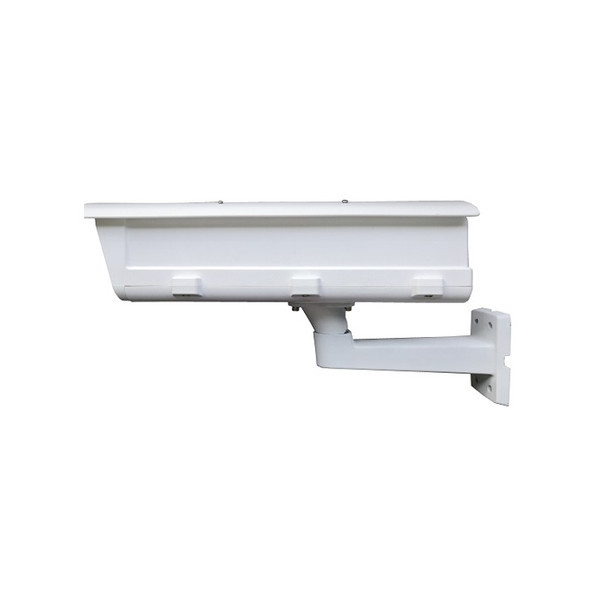

The A2Z AZ-LPCH415-W is a 4MP HD CCTV license plate capture security camera designed for environments where visible illumination is preferred. Its 4MP imaging captures both license plates and full-scene detail, making it ideal for entrances, gated communities, parking facilities and otherwise.
A 12–50mm manual telephoto varifocal lens allows precise adjustment of zoom and focus for lane targeting plus longer-range capture support. The integrated white light housing outputs daylight-balanced illumination (5500K–6500K) with a default 30° beam. Optional 15° and 45° beam angles allow installers to adapt coverage to site conditions. In practice, this LPC security camera supports up to approx. 100ft capture (depending on vehicle speed, camera angle, and scene conditions) while external illuminator options and alternate configurations are also available beyond what is described here.
Engineered with an IP66-rated housing, tempered glass, and active cooling, the AZ-LPCH415-W is built for dependable outdoor security use. White light illumination not only improves plate readability but also provides color evidence at night and acts as a visible deterrent. Multi-format HD analog video outputs guarantee integration into both new and legacy CCTV infrastructures.
Key Features:
- 4MP HD imaging sensor
- 12–50mm manual telephoto varifocal lens
- Integrated white light illumination (5500K–6500K)
- Default 30° beam; optional 15° and 45° beams
- Up to approx. 100ft night plate capture (depending on vehicle speed, camera angle, and scene conditions)
- Multi-format HD analog output: HD-CVI, TVI, AHD, CVBS
- Full-color license plate capture and scene detail at night
- IP66 housing with tempered glass and active cooling
- OSD menu for imaging adjustments
- N.C.N.R. Special Order w/Lead Time
Specifications Summary:
Imaging
- Sensor: 4MP progressive scan HD
- Resolution: 2560×1440 / 1080p selectable
- Output Formats: HD-CVI / TVI / AHD / CVBS
- OSD Control: Supported via UTC
Lens
- Focal Length: 12–50mm
- Type: Manual varifocal telephoto
- Iris: Manual iris
- IR Corrected: Yes
Illumination & Housing
- White Light LED Array: High-power, 5500K–6500K
- Beam Angle Options: 15°, 30° (default), 45°
- Capture Performance: Approx. 100ft (depending on vehicle speed, camera angle, and scene conditions)
- Housing: IP66, tempered glass, active cooling
- Operating Temp: –40°C to +60°C
- Dimensions: ~473mm length
- Weight: ~2.4kg assembled
Compatible Systems:
- Universal support for Analog CCTV and HD CCTV DVRs, XVRs, and Encoders
