Description

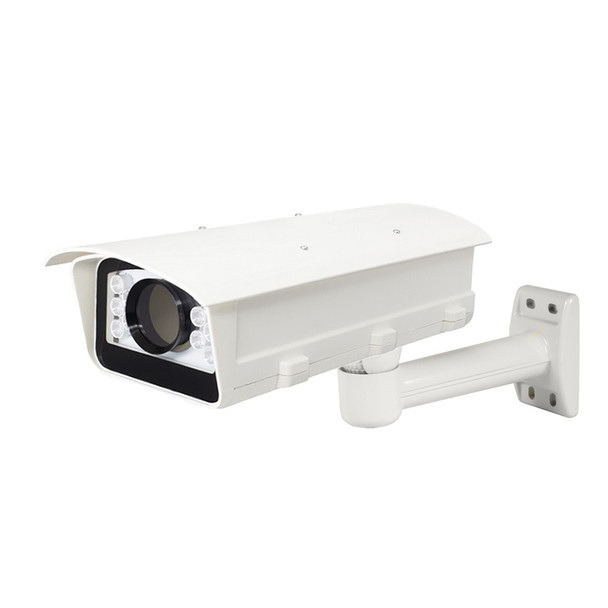

The A2Z AZ-LPCH215-IR is a specialized 2MP HD CCTV license plate capture security camera engineered for accurate plate identification in day and night conditions. Its LPC-tuned imaging supports high shutter speeds and wide dynamic range to counter headlight glare and ensure consistent readability, ideally suited for High Contrast Plates and achieving true License plate capture 24/7.
Equipped with a 12–50mm manual telephoto varifocal lens, installers can fine-tune zoom and focus to frame lanes, entrances, or approach zones with precision. The integrated infrared housing provides high-power 850nm illumination with a default 30° beam angle, delivering reliable nighttime capture performance. Optional 15° and 45° beams allow tailoring to site requirements. In real-world setups, this LPC security camera supports up to approx. 100ft night time license plate capture (depending on vehicle speed, camera angle, and scene conditions). Further, alternative illumination configurations are also available beyond as described on this page.

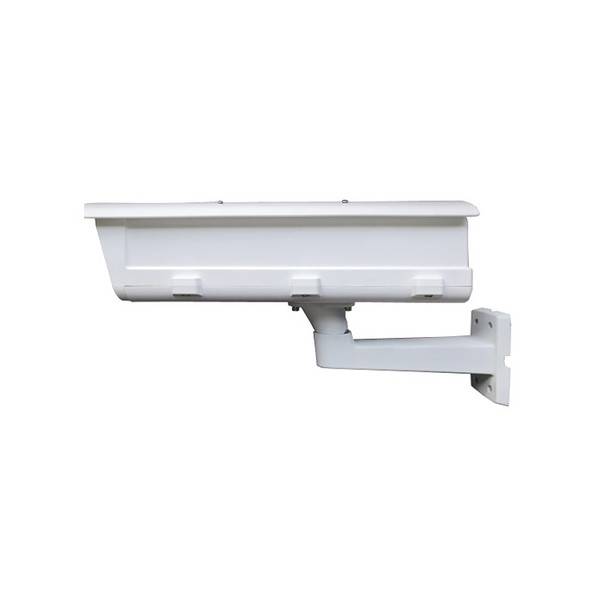

Housed in an IP66-rated enclosure with tempered glass and active cooling, the AZ-LPCH215-IR is built for rugged outdoor security applications in the traditional camera enclosure design. Installers can optimize capture accuracy using OSD menu controls for shutter speed, WDR, noise reduction, and other image settings. Multi-format video outputs ensure universal compatibility with modern and legacy HD CCTV surveillance systems.
Key Features:
- 2MP HD LPC-tuned imaging sensor
- 12–50mm manual telephoto varifocal lens
- Integrated infrared illumination with 30° default beam
- Optional 15° and 45° beam angles
- Up to approx. 100ft night plate capture (depending on vehicle speed, camera angle, and scene conditions)
- Multi-format HD analog output: HD-CVI, TVI, AHD, CVBS
- Optimized shutter and WDR for license plate capture
- IP66 weatherproof housing with tempered glass
- OSD menu for image adjustments
- N.C.N.R. Special Order w/Lead Time
Specifications Summary:
Imaging
- Sensor: 2MP LPC-optimized progressive scan
- Resolution: 1920×1080 @ 30fps
- Output Formats: HD-CVI / TVI / AHD / CVBS
- OSD Control: Supported via UTC
Lens
- Focal Length: 12–50mm
- Type: Manual varifocal telephoto
- Iris: Manual iris
- IR Corrected: Yes
Illumination & Housing
- Infrared LED Array: High-power 850nm
- Beam Angle Options: 15°, 30° (default), 45°
- Capture Performance: Approx. 100ft (depending on vehicle speed, camera angle, and scene conditions)
- Housing: IP66, tempered glass, active cooling
- Operating Temp: –40°C to +60°C
- Dimensions: ~473mm length
- Weight: ~2.4kg assembled
Compatible Systems:
- Universal support for Analog CCTV and HD CCTV DVRs, XVRs, and Encoders
