Description

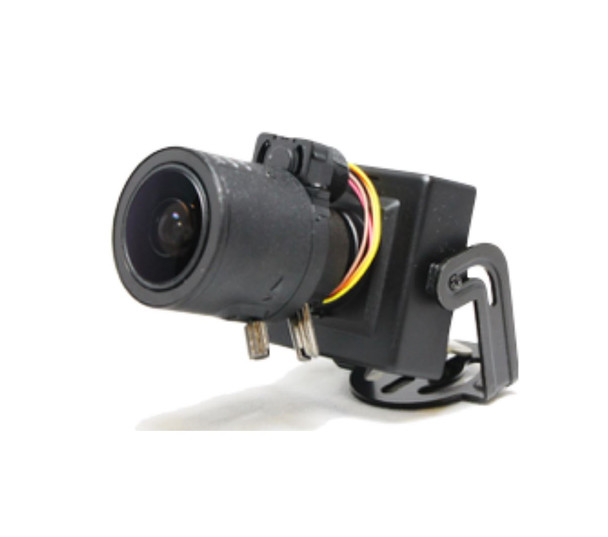

A2Z’s AZMSMB-1G81D CCTV mini security camera packs 4MP QHD resolution and a 2.8–12mm manual varifocal lens into a highly compact 36mm housing. Powered by the Sony STARVIS IMX335 CMOS sensor and EYENIX EN781 ISP, it supports up to 2560 x 1440 video output across AHD, TVI, CVI, and supports legacy CVBS (analog CCTV) formats.
EX-SDI / HD-SDI is available in an optional version. This mini varifocal model delivers enhanced low-light performance (0.01 Lux B&W), motion detection, privacy masking, and advanced image adjustments such as D-WDR, defog, shading, mirror, and flip.
With multi-language OSD control and easy mechanical adjustment, it’s suited for professional video surveillance monitoring in tight spaces like ATM machines, cash drawers, and control panels.
Key Features
- 4MP (2560x1440) QHD Video
- 1/2.8” Sony STARVIS CMOS (IMX335)
- Manual Varifocal 2.8~12mm Lens
- Outputs: AHD, TVI, CVI, CVBS (EX-SDI optional)
- OSD Menu, Motion Detection
- Privacy Masking & Flip Functions
- Compact 36mm Form Factor
- Low Light B/W: 0.01 Lux
- 12V DC Power
- NDAA and TAA Compliant
- Made in Korea
Specifications Summary
Video & Display
Sensor: 1/2.8” 5.14MP Sony CMOS
Resolutions: 1MP / 2MP / 4MP
Output: AHD / TVI / CVI / CVBS (EX-SDI optional)
Min. Illumination: 0.1 Lux (Color), 0.01 Lux (B&W)
Recording & Playback
Motion Detection: 24-Zone
DNR / BLC / HLC / WDR / Defog / Mirror / Flip: Yes
Shutter: 1/30 ~ 1/30,000
Privacy Masking: Supported
OSD: Yes
Power, Environmental, Mechanical
Power: DC12V ±10%
Consumption: 150mA
Dimensions: 36mm x 36mm
Weight: 0.15kg
