Description
The A2Z AZMBFE-1D71D is a high-performance 2MP HD CCTV mini bullet security camera designed for professional surveillance installations requiring a compact yet powerful solution. Built with a premium 1/2.9” Sony STARVIS CMOS sensor and paired with the EYENIX EN771T ISP, this camera delivers sharp, true-color images at up to 1920x1080 (1080p) resolution in real-time 25/30fps.
Truly versatile, this model offers multi-format output supporting AHD, TVI, CVI, and CVBS as the standard configuration, with optional EX-SDI or HD-SDI variants available for specialized applications. The AHD, TVI, CVI, or CVBS (Legacy Analog) formats make it compatible with a wide range of modern DVRs and video surveillance monitoring systems. With a low-light sensitivity of 0.14 Lux (color) and 0.014 Lux (B&W), the camera ensures reliable performance even in challenging lighting.

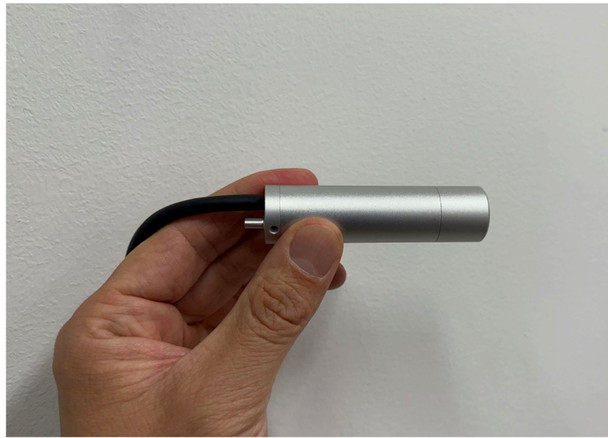

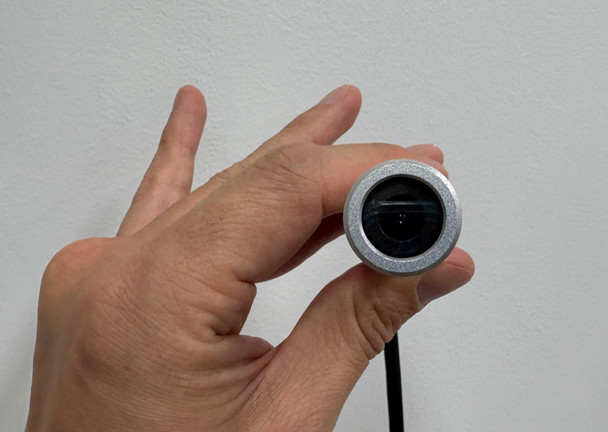

This model features a fixed 3.6mm board lens, built-in OSD menu, and a host of intelligent functions including motion detection, privacy masking, WDR, defog, and more. Engineered in a durable aluminum housing with a miniature 36mm x 36mm form factor, it’s ideal for discreet surveillance where aesthetics and size matter.
Key Features:
- Full HD 1080p @ 30fps
- 1/2.9” Sony STARVIS CMOS Sensor
- 4-in-1 Video Output (AHD, TVI, CVI & CVBS)
- Optional SDI versions (HD-SDI, EX-SDI)
- Ultra Low Light Performance (0.014 Lux B/W)
- Fixed 3.6mm Board Lens (Pinhole Lens Options)
- Digital Day & Night
- Digital WDR, Defog, DNR, Privacy Masking
- Motion Detection & OSD Menu
- Compact Metal Housing (Ø18.8mm x 74mm)
- Made in Korea
- NDAA and TAA Compliant
Specifications Summary
- Video & Display
Image Sensor: 1/2.9" 2.1MP Sony CMOS
ISP: EYENIX EN771T
Resolution: 1920 x 1080
Video Output: AHD / TVI / CVI / CVBS / HD-SDI / EX-SDI
Frame Rate: 25fps / 30fps
Min. Illumination: 0.14 Lux (Color), 0.014 Lux (B&W)
- Recording & Playback
OSD Built-in
Electronic Shutter: Auto / Flickerless / Manual
BLC / HLC / WDR: Supported
Motion Detection: On (4 Zones)
- Audio
N/A
- System / Security
Privacy Masking: 16 Zones
Language: On/Off
- Interface & Ports
Coaxial Control: AHD: Pelco-C, TVI: Hikvision-C, CVI: HD-CVI
- Power, Environmental, Mechanical
Power: DC12V ±10%
Consumption: 100mA
Operating Temp: -10°C ~ +50°C
Dimensions: 121.56 x 67 x 65 mm (with mini mount)
Weight: 0.2kg
