Description

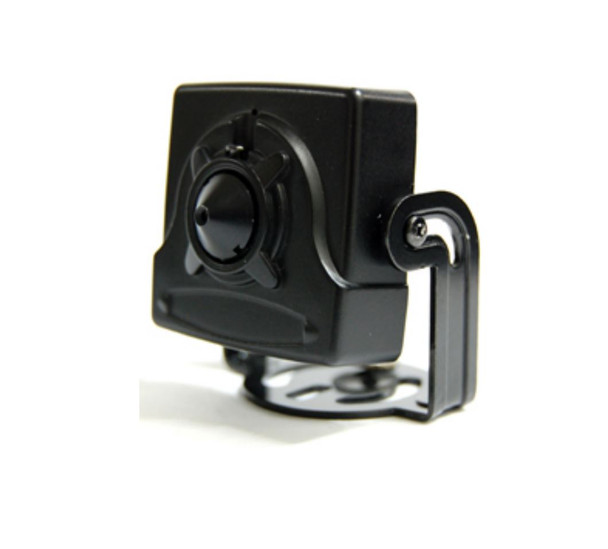

The A2Z AZMSCB-1D71D is a miniature 2MP pinhole HD security camera designed for applications demanding compact yet capable video monitoring. Utilizing the 1/2.9” Sony STARVIS CMOS sensor (IMX323) and paired with the EYENIX EN771T ISP, this camera produces clear up to full HD (1920x1080p) video at real-time frame rates.
Its primary video output options include AHD, TVI, CVI, and CVBS, supporting broad DVR compatibility in the security camera system market. For specialized setups, alternate models are available with HD-SDI or EX-SDI output. With low-light sensitivity down to 0.014 Lux in B&W mode and a 3.6mm fixed pinhole lens, it delivers discreet, close-range wide coverage.
Advanced features include D-WDR, OSD menu, privacy masking, motion detection, and more – all packed into a rugged aluminum 36mm x 36mm form factor. Engineered in Korea, it's ideal for covert surveillance in ATMs, kiosks, and access control systems.
Key Features
- 2MP Full HD Resolution (1920x1080)
- 1/2.9” Sony STARVIS CMOS Sensor (IMX323)
- AHD / TVI / CVI / CVBS output (HD-SDI/EX-SDI optional)
- Fixed 3.6mm Pinhole Lens
- D-WDR, BLC/HLC, Motion Detection
- OSD Configuration with Multi-language Support
- Ultra Compact 36x36mm Aluminum Housing
- Low Light: 0.014 Lux (B/W)
- Power Efficient DC12V Operation
- NDAA and TAA Compliant
- Made in Korea
Specifications Summary
Video & Display
Sensor: 1/2.9" Sony CMOS
Resolution: 1920 x 1080 (2MP)
Output: AHD / TVI / CVI / CVBS (HD-SDI/EX-SDI optional)
Frame Rate: 25/30fps
Min. Illumination: 0.14 Lux (Color), 0.014 Lux (B/W)
Recording & Playback
OSD Menu: Yes
Electronic Shutter: 1/30 ~ 1/30,000 (NTSC)
BLC / HLC / WDR / DNR: Supported
Motion Detection: 4 Zones
Privacy Masking: 16 Zones
Power, Environmental, Mechanical
Power: DC12V ±10%
Consumption: 100mA
Operating Temp: -10°C ~ +50°C

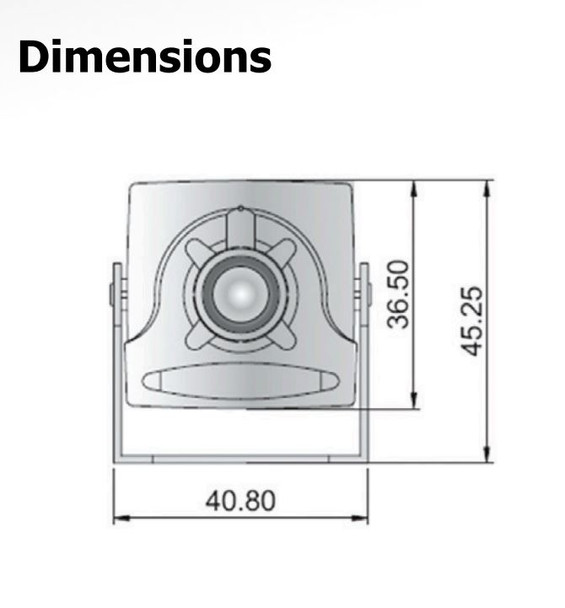

Housing Size: 36mm x 36mm
Weight: 0.15kg
