KT&C KPC-VNN101NHB IR Vandal Proof Dome Security Camera

  • KT&C KPC-VNN101NHB  IR Fixed CCTV Vandal Dome Camera
  • KT&C KPC-VNN101NHB  Key Attributes
  • KT&C KPC-VNN101NHB  features
  • KT&C KPC-VNN101NHB  features
  • KT&C KPC-VNN101NHB  diagram
Calculated at checkout

Product Description

KT&C KPC-VNN101NHB IR Vandal Proof Dome Security Camera is a high performance CCTV Armored Dome style camera built to withstand harsh environments. The unit delivers High resolution 550TVL video surveillance and includes a variety of professional image settings like BLC, AGC, AWB and ATW. The Vandal IR Dome Camera is built with a fixed 3.6mm lens but provides a wide selection of super wide to telephoto lens options to meet a variety of focal requirements. The unit is equipped with 30 Infrared IR LEDs for superior Night vision and IR illumination to 100ft.
The KT&C KPC-VNN101NHB IR Vandal Dome Security Cameras have an IP66 weatherproof rating and are constructed with a polycarbonate dome cover plus metal casing for superior protection against assaults. The dome camera also has a built in fan for operation in extended high temperatures. The unit also includes a 3 Axis Camera bracket enabling the camera to be installed in a variety of positions while also support flush and surface mounting. This CCTV Dome Security Camera has an OSD (on screen display) and local service monitor output for easy service and setup. The unit further supports dual voltage 12VDC or 24VAC power options enabling it to work with the majority of professional security camera systems.

KT&C KPC-VNN101NHB Main Features:

• Sony 1/3" Super HAD Color CCD II
• 550TVL Horizontal Resolution

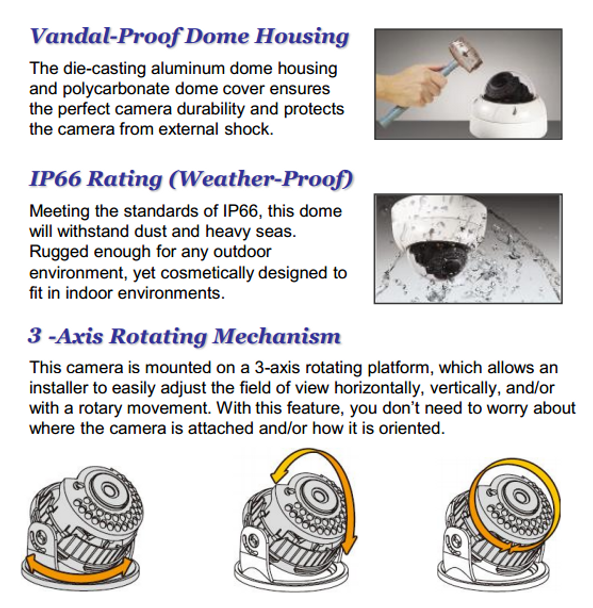

• Vandal-Proof & Weather-Proof (IP66)

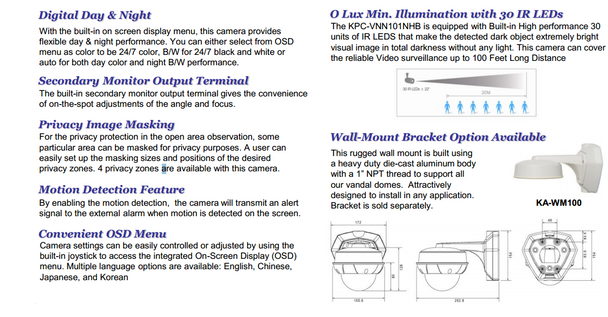

• Digital Day & Night (ICR) w/ Built-in 30 IR LEDs
• Board Lens 2.1mm / 2.45 / 2.97 / Std 3.6mm / 4 / 6 / 8 / 12 / 16
• On Screen Display (OSD) Menu
• Privacy Masking / Motion Detection / Mirror
• Adjustable Contrast & Sharpness
• Advanced Back Light Compensation (BLC)
• Automatic Gain Control (AGC)
• Automatic White Balance (AWB)
• Automatic Tracing White Balance (ATW)
• Monitor Output Terminal for Easy Servicing
• 3-Axis Gimbal Bracket
• Surface Mounting Bracket Included
• Cooling Fan for High Temperature Environment
• Supports DC 12V / AC 24V Power Supply
• Wall-Mount Bracket Available (Sold Separately)

KT&C KPC-VNN101NHB Specifications:

Signal System NTSC PAL
Image Sensor 1/3" Sony Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Synchronization Internal
Horizontal Resolution More than 550 TV Lines
Lens Size 2.1mm / 2.45 / 2.97 / Std 3.6mm / 4.0 / 6 / 8 / 12 / 16
S/N More than 48dB (AGC Off)
Min. Illumination 0 Lux (IR LED On)
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Video Output Level 1Vp-p Composite (75O), Unbalanced
On-Screen Display (OSD) Built-in
Back Light Compensation (BLC) On / Off (BLC Area & Ratio Adjustable)
Auto Gain Control (AGC) On / Off (AGC Gain Adjustable)
White Balance ATW / AWB / MANUAL / FIXED
Privacy Masking On / Off
Mirror On / Off
Motion Detection On / Off
Language Option English / Chinese / Japanese / Korean
Day & Night True Day & Night (ICR)
IR LED 30 IR LEDs, 850nm (IR Wavelength), ±30° (IR Half Angle), Max. 100ft (IR Distance)
IP Rating IP66 (Weatherproof)
Gamma ? = 0.05 ~ 1 (Adjustable)
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Humidity Less than 80%RH
Power Supply DC 12V ±10% (Max. 540mA), AC 24V ±10% (Max. 5.5W)
With Surface Mount
Dome (ø100mm), 156mm(ø) x 129.5mm(H)
Dome (ø3.937”), 6.141”(ø) x 5.098”(H)
Without Surface Mount
Dome (ø100mm), 143mm(ø) x 104mm(H)
Dome (ø3.937”), 5.630”(ø) x 4.094”(H)
