Samsung SCU-9051 Thermal Camera Positiniong System

  • Samsung SCU-9051 Thermal Camera positiniong system
  • Samsung SCU-9051 Thermal Camera positiniong system
  • Samsung SCU-9051 Thermal Camera positiniong system
Calculated at checkout

Product Description

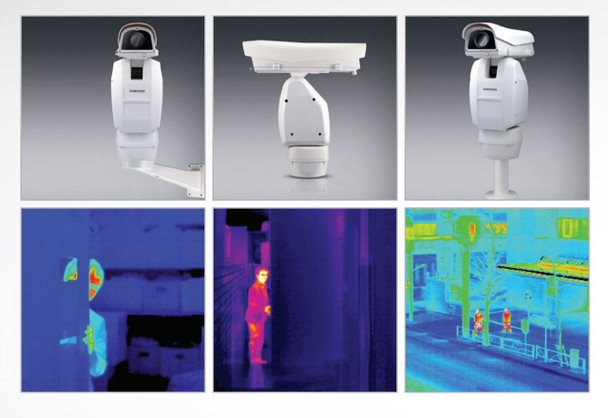

Samsung SCU-9051 Thermal Camera positioning system is a combination of an advanced Thermal infrared camera with a high grade pan/tilt, receiver and camera housing. The Samsung thermal infrared surveillance camera provides unique advantages to the traditional style of capturing visible light imaging. The modern thermal camera provides visual reproduction of heat sources and thus provides unpatrolled effectiveness in detecting or targeting objects of interest. This non-visible light aspect allows the camera also to operate in complete dark while other conditions like rain, snow, fog, smoke or similar. Therefore the camera can provide superior effectiveness in a variety of applications from safety, security, surveillance and commercial uses.

The Samsung SCU-9051 thermal pan/tilt positioning system provides a resolution of 320 x 240 pixels, which in thermal imaging equates to long range detection and excellent recognition. Everything from high value assets, transportation, ports, high security complexes, borders, military compounds to industrial, law enforcement and more make use of these advanced cameras. Top tier thermal camera features like multiple image modes including isolated temperature display and fire man offer optimal preset options. Meanwhile advancements like 3D-DNR (digital noise reduction) and contrast enhancements render an ultra-clear video.

Coupled with Samsung pan/tilt positioning system the unit offers superior precision, high speed movements and extended viewing range. Users enjoy 360 degree endless rotation and a wide -85 to 40 degree tilt range offers monitoring in any direction. The Pan tilt system provides easy control integration as well, including RS-485 or Coaxial communications with multiple protocols supported. Overall the camera is a class leading pan/tilt thermal camera system and professional attributes from On-Screen Display to Video analytics for fence, auto tracking and motion detection are all included.

Samsung SCU-9051 Main Features:

Completely integrated Thermal Camera Pan/Tilt Positioning System
320(H) x 240(H) uncooled VOX micro bolometer
Sensor Pitch 23.5µm, Wavelength Range 8 ~ 14um, LWIR
Thermal Sensitivity (NETD) 85mK @ F1.4
Full Frame rate real-time 30fps Analog video output
Focal Length 50mm Fixed Lens, Max. Aperture Ratio 1 : 1.4
Field of View (HxV) 8.6° x 6.5° / IFOV (Instaneous Field of View) 0.47mrad
Includes 3D-DNR: digital noise reduction (4 modes)
Image Mode: Color 1, Color 2, ISO and Black/White
Contrast Enhancement: Auto or Manual Setting
Digital Zoom Supported up to 4x
Temperature display 8 Zone
Alarm I/O interface 3 inputs / 2 outputs, 1 Auxiliary
Dual Pan/Tilt Control Interface: RS-485 and Coaxial Communication support
Multiple Protocol support: AD, Bosch, GE, Honeywell, Panasonic, Pelco D/P, Samsung T/E
Supports 360 Degree endless pan, -85 to 40 degree tilt
Max High Speed Pan: Preset 120 / Manual 36 / Turbo 120 Degrees per second
Max High Speed Tilt: Preset and Manual 36 degrees per second
255 preset positions with 0.1 accuracy
Operating Temperature -50°C ~ +50°C (-58°F ~ +122°F) Operating Humidity 0% ~ up to 100% RH
Power: 24VAC Consumption: 40W Max. or 100W Max. (Fan and Heater on)
Construction Aluminum die-casting
Dimensions 217.3 x 587.5 x 500mm (8.56" x 23.13" x 19.69")
Weight 17.5Kg (37.58 lb)


Mounting Accessories:

PTZ Dome Wall Mount Bracket

PTZ or Dome Camera Curved Neck Wall Mount

PTZ Camera Ceiling Pendant Tube Mount

PTZ or Dome Parapet Mount

PTZ Camera Wall Mount Back Box with Conduit Port

Pole Mount Adapter

Corner Mount Adapter


Mounting Accessories:

Hanging Pendant Mount Adapter

PTZ Camera Outdoor IP66 IK10 Dome Housing (w/Heater/Blower)

PTZ In-ceiling Flush Mount Housing
