Messoa DVR200-008 8ch DVR Digital Video Recorder D1 H.264

  • Messoa DVR200-008 8ch DVR
  • Messoa DVR200-008 8ch DVR System Features

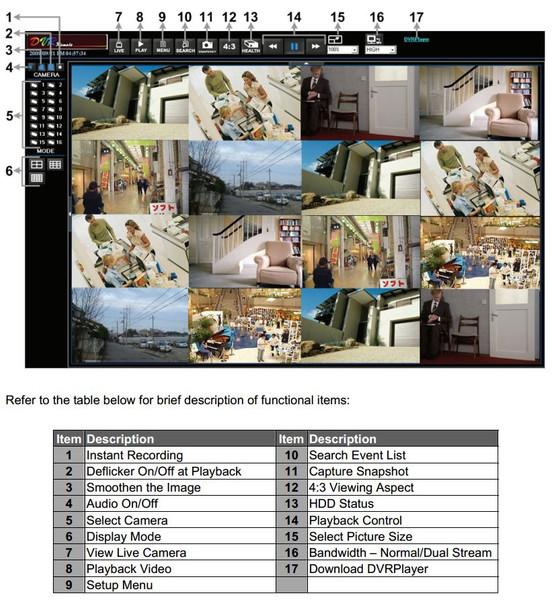

  • Messoa DVR200-008 8ch DVR Remote Viewing
  • Messoa DVR200-008 8ch DVR Diagram
Contact us on 855 376 6699

Product Description

Messoa DVR200-008 DVR system is a Linux Embedded Real-time H.264 8ch Digital Video Recorder packed with the latest advancements in CCTV Video Surveillance. The Messoa DVR200-008 8ch DVR includes H.264 Compression with 240fps Real-time monitoring and recording at Full D1 High Resolution. The DVR unit further provides Full HD Video Output with RAW camera imaging for crisp and clear viewing on High Definition monitors. Messoa DVR200-008 Digital Video Recorder further allows a diverse selection of remote viewing methods such as CMS Software, Web Browser and Client Software to mobile devices support like IPhone, IPad and Android. The enhanced GUI enables effective video management and other conveniences like IR remote control, DVD-RW and USB back-up or Export options ensure user satisfaction.
The Messoa DVR200-008 8 channel DVR System is built with all the desirable functions of the modern DVR system and promises the best performance in CCTV camera systems. The unit allows equally eight Audio inputs, has a digital I/O terminal block, and supports RS-485 for PTZ Camera Control while also a RS-232C for POS applications. The Messoa DVR200-008 also includes four SATA Hard Drive Bays for long term on-board storage capabilities. A wide range of advanced functions from front panel interface, to built-in event triggers and superior viewing, search, playback, and export are all easily achieved. The Messoa DVR200-008 8ch Real-time D1 DVR System is the perfect selection for high end CCTV Video Security Camera Systems of all types.

Messoa DVR200-008 Main Features:

  • 8CH Linux Embedded DVR
  • Advanced H.264 Compression
  • D1 Real-time 240fps Monitoring/Recording
  • Full HD 1080P High Definition output
  • Dual Streaming Technology
  • Advanced GUI for easy operation and setup
  • USB Support and DVD Writer
  • Built-in Detection Methods
  • Two Way Audio Supported
  • RS-485 PTZ Camera Control
  • RS-232C for POS Applications
  • Support Mobile Devices

Messoa DVR200-008 Specifications:

Operating System Embedded (Linux)
Display Resolution 1024x768, 1280x1024, 1920x1080p
Input BNC×8, 1.0 Vp-p, 75 ohm BNC×16, 1.0 Vp-p, 75 ohm
Digital Display Output 1024x768, 1280x1024, 1920x1080p
Main Monitor BNC × 1, 1.0 Vp-p, 75 ohm
Call Monitor BNC × 1, 1.0 Vp-p, 75 ohm
Video looping BNC×8, 1.0 Vp-p, 75 ohm BNC×16, 1.0 Vp-p, 75 ohm
 Input Terminal Block x 8, Line-In
Main Audio RCA x1, Line-Out
Call Audio RCA x1, Line-Out
 Compression Method Proprietary
 Data Rate 8 KB/s, per CH
Compression Method H.264
Recording Mode Schedule, Alarm, Motion Detection
Pre-alarm Yes
NTSC 720x480 Max 240 pps
 720x240 Max 240 pps
 360x240 Max 240 pps
PAL 720x576 Max 200 pps
 720x288 Max 200 pps
 360x288 Max 200 pps
Recording Quality 8 Levels Presets, Adjustable
Image Size 8 KB to 20 KB/Picture
Storage Mode Linear / Circular
Data Lifetime Yes (Programmable)
Built-in Storage Interface 4 SATA, 1 DVDRW, 1 eSATA
Raid Support 0, 1, 5, 10
Cartridge / DVDRW Optional
Export 1 eSATA Port, 2 USB 2.0 Ports
Alarm Input 8 Terminal Block (TTL) 16 Terminal Block (TTL)
Alarm Relay Output 3 Terminal Block, 1.0A / 30 VDC or 1.0A / 120VAC
Alarm Detection N.C. / N.O., Programmable
Motion Detection 16 × 12 Grid Array, Sensitivity, and Trigger level adjustable
Video Loss Detection Programmable
Network Connectivity RJ45, 10/100/1000 Mbps Ethernet, Supports PPPoE/ DDNS/ DHCP
Remote Control Software CMS supported
Remote Operation Monitoring, Playback, Recording, System setup, Dome camera control, Archiving
RS-485 Terminal Block
IR Remote D-SUB for POS applications
Dome Camera Control Protocol DSCP, Pelco P, Pelco D, AD422, Fastrax 2, Panasonic, JVC
Unit Dimension (W × H × D) 437 × 393 × 90 mm (17.2 × 15.47 × 3.54 inches)
Unit Weight 5.5 Kg (12.1 lbs.)
Package Dimensions (W × H × D) 552 × 552 × 187 mm (21.7 × 21.7 × 7.4 inches)
Package Weight 6.1 Kg (13.4 lbs.)
Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Relative Humidity 10% ~ 90%, Non-condensing
Power Consumption & Input ATX 200W, 100 ~ 240V
Order Information
Model No. NTSC: DVR200-008-N; PAL: DVR200-008-P
