KT&C KPC-VDW100NHV15 WDR Vandal Proof Dome Security Camera

KT&C KPC-VDW100NHV15 WDR Vandal Proof Dome Security Camera is a uniquely built camera that provides and extended dome cover for maximum camera adjustment and view. The KT&C KPC-VDW100NHV15 Vandal Dome Camera also includes a Sony Vertical Double Density Interline CCD for excellent 550TVL High resolution and superior Wide Dynamic Range function. The Cameras is able to overcome the most challenging lighting conditions as is further benefitted by an assortment of professional image settings like DSS, BLC, AGC and others. The WDR Vandal Dome Security Camera is also built with True Day/Night operation and provides superior low light video surveillance. The Camera has a built in 2.6-11mm Varifocal Lens and includes a 3 Axis Camera bracket to allow perfect camera adjustment touch surface angles.
The KT&C KPC-VDW100NHV15 WDR Vandal Proof Dome Security Camera is built tough with a polycarbonate dome with metal casing able to withstand high impact assaults. The Dome Cameras IP66 weatherproof rating and integrated fan and heater ensure outdoor operation even in harsh weather conditions. The unit available with optional mounts and support 12VDC or 24VAC power inputs. The KT&C KPC-VDW100NHV15 WDR Vandal Dome Security Camera simply stated is an ideal choice for high grade CCTV Security Camera Systems.

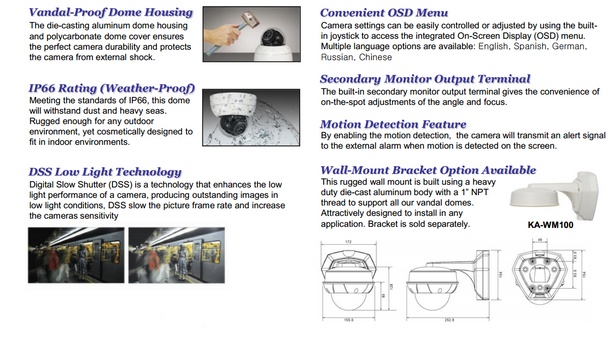

KT&C KPC-VDW100NHV15 Main Features:

• Sony 1/3" Vertical Double-Density Interline CCD
• Powerful WDR (Wide Dynamic Range) Performance
• 550TVL Horizontal Resolution
• Vandal-Proof & Weather-Proof (IP66)
• True Day & Night (ICR)
• Varifocal Lens (f2.6 ~ 11.0mm)
• Intensified DSS accumulation field number up to 500x
• On Screen Display (OSD) Menu
(OSD Languages: English, Spanish, German, Russian, Chinese)
• Privacy Masking / Motion Detection / Mirror
• Adjustable Contrast & Sharpness
• Advanced Back Light Compensation (BLC)
• Automatic Gain Control (AGC)
• Automatic White Balance (AWB)
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• Monitor Output Terminal for Easy Servicing
• 3-Axis Gimbal Bracket
• Surface Mounting Bracket Included
• Cooling Fan and Heater for High/Low
• Temperature Environment
• Supports DC 12V / AC 24V Power Supply
• Wall-Mount Bracket Available (Sold Separately)

Model KPC-VDW100NHV15 Specifications

Signal System NTSC PAL
Image Sensor 1/3" Sony Vertical Double –Density Interline CCD
Scanning System 2:1 Interlace
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Synchronization Internal
Horizontal Resolution More than 550 TV Lines
Lens Size f2.6mm ~ 11.0mm Varifocal Lens
S/N More than 48dB (AGC Off)
Min. Illumination 1.0 Lux / F2.0 0.001 Lux (DSS)
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Video Output Level 1Vp-p Composite (75O), Unbalanced
Function
On-Screen Display (OSD) Built-in
WDR Off / On / Auto (Level Adjustment)
Digital Zoom Ratio 1.0x / 1.5x / 2.0x / 2.5x (WDR Off Mode)
Digital Slow Shutter 1-500 Field
Back Light Compensation (BLC) On / Off (BLC Area & Ratio Adjustable)
Auto Gain Control (AGC) Low / Mid / High
White Balance ATW/ Push / Push Lock / User (R Gain, B Gain)
Privacy Masking On / Off (8 Zone)
Mirror On / Off
Motion Detection On / Off (Zone, Level Adjustable)
Language Option English / Spanish / German / Russian / Chinese
Day & Night True Day & Night (ICR)
IP Rating IP66 (Weatherproof)
Gamma ? = 0.45
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Humidity Less than 80%RH
Power Supply DC12(±10%),Max 490mA / AC24(±10%),Max 11.5W

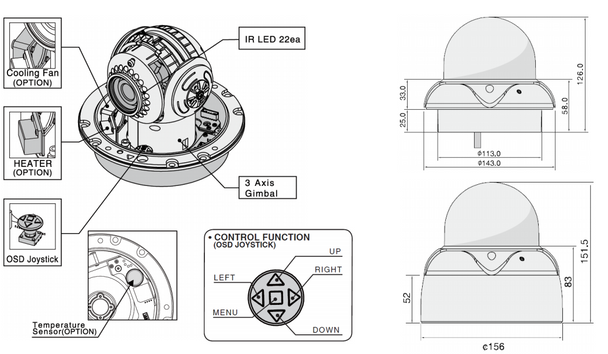

Dimensions
With Surface Mount Dome (ø100mm), ø156 x 151.5mm (H) : Dome (ø3.937”), 5.906”(ø) x 5.964”(H)
Without Surface Mount Dome (ø100mm), ø143 x 126.0mm (H) : Dome (ø3.937”), 5.630”(ø) x 4.960”(H)
