Geovision GV-VD3430 3MP WDR IR Vandal Dome IP Camera

  • Geovision GV-VD3430 3 Megapixel IR Vandal Dome IP Camera IP67 IK10
  • Geovision GV-VD3430 IR Vandal Dome IP Security Camera
  • Geovision GV-VD3430 Vandal Dome internal Diagram
  • Geovision GV-VD3430 dome dimensions
  • Geovision GV-VD3430 Internal Top View
  • Geovision GV-VD3430 Top view Vandal Proof Dome Series II
  • Geovision Electrical Power Box Dome Adapter
  • Geovision Vandal Dome In-Ceiling Mounted
  • Geovision Vandal Dome Wall Pendant Mount
  • Geovision Vandal Dome with Mini Pendant Wall Bracket
  • Geovision Vandal Dome with L-Type Wall Bracket
  • Geovision Vandal Dome with L-Bracket Cable Feed Through Wall Bracket

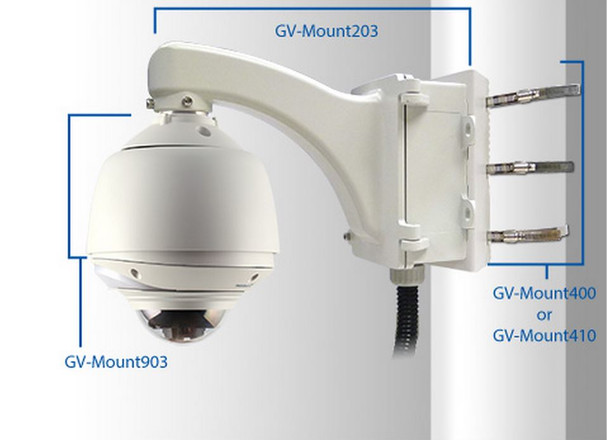

  • Geovision Vandal Dome Wall Pendant Mount with Pole Mount Adapter with Box
  • Geovision Vandal Dome Wall Pendant Mount with Pole Mount Adapter
  • Geovision Vandal Dome Wall L-Bracket with Pole Mount Adapter
  • Geovision Vandal Dome Convex Corner Wall Pendant Mount with Box
  • Geovision Vandal Dome Convex Corner L-Type Wall Bracket and Pendant Mount

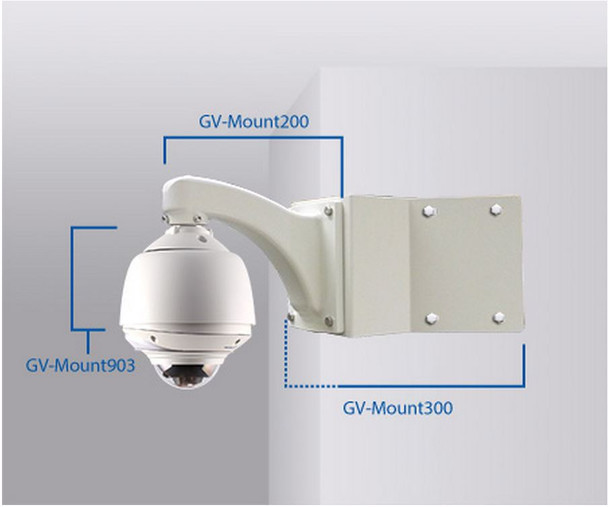

  • Geovision Vandal Dome Convex Corner Wall Pendant Mount

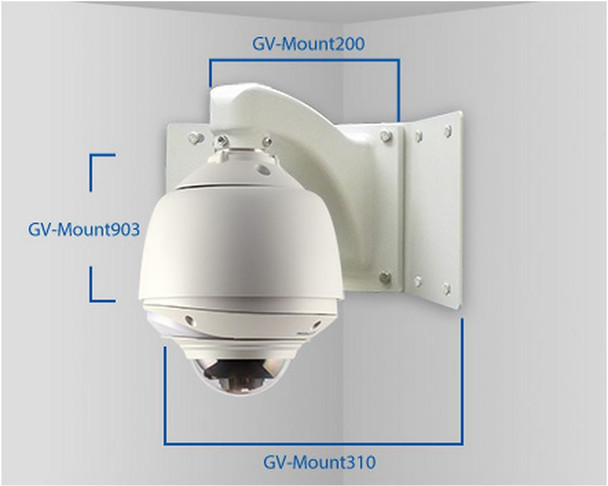

  • Geovision Vandal Dome Concave Corner Pendant Wall Mount Bracket
  • Image 20

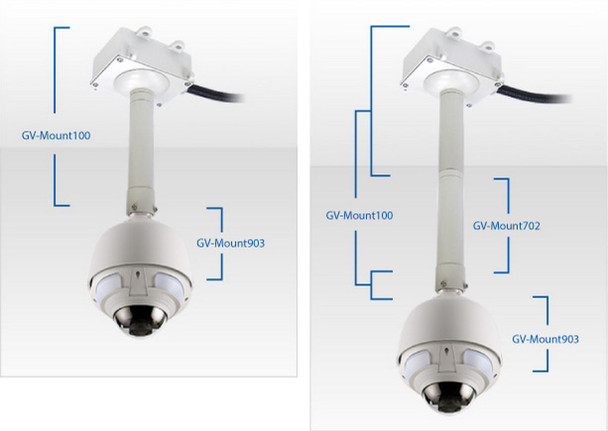

  • Geovision Vandal Dome with Ceiling Mount Straight Tube Pendant Mount with Box
  • Geovision Vandal Dome with Ceiling Mount Straight Tube Pendant Mount
Price:
$575.00
SKU:
GV-VD3430
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Geovision GV-VD3430 3MP WDR IR Vandal Dome IP Cameras are an outdoor ready, IP Surveillance solution introducing a new and improved style of vandal proof dome security cameras. Constructed with a 3 Megapixel CMOS Image Sensor the units provide up to 20fps in full 3MP resolution with optional MJPEG or H.264 compression plus dual streaming. Day/Night Performance is exceptional both in Color or B/W mode this unit produces great low lux IP Surveillance in the most minimal of lighting. However you won't have to worry about low light or even total darkness as this Vandal Proof IR Dome has a uniquely designed, High Powered LED array built into the body that provides superior IR night vision. A variety of other image enhancements from DNR to WDR further optimize video in all types of scenarios promising you crystal clear IP Video Surveillance. The units include Varifocal lens, 3 axis adjustment and a rugged outdoor IP67 weatherproof rating. Numerous accessory mounting options to PoE+ or ONVIF 3rd party compliance promise easy integration to wide range of Professional IP Security Camera Systems.


Geovision GV-VD3430 Main Features:

  • 1/3.2” progressive scan 3MP CMOS Sensor
  • Dual video streams, individually configured H.264 or MJPEG
  • Up to 20fps at Full 3 Megapixel HD (2048 x 1536)
  • Varifocal megapixel lens 3-9mm DC Iris
  • 3-axis adjustment (pan/tilt/roll)
  • Mechanical IR-cut filter for True Day/Night Color 0.08 Lux / B/W 0.05 Lux
  • Six High Power Case Mounted IR LEDs, Infrared Range of 20m (65.6 ft.)
  • Intelligent IR counters over exposure for detailed Night Vision
  • Wide Dynamic Range Pro (WDR Pro), 2D noise reduction (DNR), Defog
  • Motion detection, Tampering alarms and Privacy masking
  • Diverse Network Functions: IP address filtering, RTSP, FTP, QoS, UPnP, HTTPs, DynDNS, more
  • Two way audio with external Microphone Input and Speaker Output
  • Alarm I/O for Sensor Input and Relay Output
  • TV-out support for composite display
  • On-board Recording with micro SD card slot (SD/SDHC)
  • ONVIF (Profile S) conformance
  • Supports iPhone, iPad, Android & 3GPP mobile viewing
  • Support for 31 languages on Web interface and comprehensive monitoring controls
  • Outdoor ready, Weatherproof IP67 and Vandal Resistant, High Impact IK10+ rated
  • Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
  • Dimensions: ø 176.5mm x 118mm (6.9" x 4.6")
  • Weight: 1.76 kg (3.88 lbs.)
  • 12VDC, 24VAC or PoE+ (IEEE 802.3at)



Unfailing HD IP Surveillance:
Equipped with a 1/3.2" Progressive Scan 3MP CMOS Sensor and allowing up to 3 megapixel (2048 x 1536) full resolution at up to 20fps this unit delivers clarity with stunning detail. A mechanical IR cut-filter enables true day/night operation yet even low light color imaging is achievable in as little as 0.08 lux for truly impressive results. What is equally beneficial though, is this vandal proof dome utilizes a unique design of six High Powered Infrared LEDs built into the security camera's body for superior, well distributed IR coverage many times better than traditionally styled models. Intelligent IR adds to the mix by ensuring proper night vision exposure of subjects for maximum detail. Meanwhile more Imaging Technology like DNR (Digital Noise Reduction) to WDR Pro (Wide Dynamic Range) guarantee optimal video quality in the most challenging conditions. Installers will find that in-depth control of video imaging properties as well as dual streaming via H.264 or MJPEG with individually configurable streams allows easy adaptation to project requirements. Made to perform these models are well developed for your total satisfaction with an excellent price for performance ratio.


Smart Security, Flexible Functionality:
The Geovision GV-VD3430 3MP WDR IR Vandal Dome IP Cameras are capable of totally stand-alone IP Surveillance or can easily integrate with third party security cameras systems by compliance standards such as ONVIF. On-board intelligence provides various detection methods with automated alarm triggers which complete further action like local SD card recording or FTP upload. Other advantages like a complete selection of commonly desired Network protocols and services including RTSP, HTTPs, UPnP, QoS, 3GPP, DynDNS and more are all accessible. Countless functions are found from IP address filtering to Defog or Privacy Masking as but a few added examples. A well-crafted web interface provides high functionality with ease of navigation for all sorts of monitoring requirements, all directly from the IP camera. Aside from the 3rd party security system support, Geovision offers a great selection of NVR software and surveillance applications including Free mobile viewing with GV-EYE, Free up to 32 channel GV-NVR or large scale options like the new 64ch GV-VMS and up to 128 channel GV-Recording Software. Whatever the needs you can count on this model being a highly adaptable security camera.


Easy Installation and Project Adaptation:
Along with the innovative design of advanced video imaging technology and security to network functionality, there are also many hardware advantages in this new vandal dome line. The ability to easily fit in nearly any installation is quickly realized by its Varifocal DC iris lens and a 3 axis camera adjustment. Furthermore though a surface mount model by default, plenty of optional accessories help integrate perfectly this vandal proof dome to in-ceiling, pendant, wall, pole or even corner mount applications. Manufactured to rugged IP67 weatherproof and IK10 vandal resistant standards the dome also grants maximum protection even in the most demanding environments. Connectivity is just as well accommodated with terminal input/output for Alarm I/O connections and similarly a microphone line input and a speaker line output both allowing countless external accessory options. Power input is just one of many more strong points, offering 12VDC, 24VAC or PoE+ (High PoE IEEE 802.3at) you can with ease find an acceptable install method for any security system.
