ACTi B949 2MP IR IP PTZ Security Camera 30x

  • ACTi B949 2MP 30x IR IP PTZ Security Camera IP66 IK10
  • ACTi B949 IR IP PTZ Security Camera feature diagram
  • ACTi B949 IR PTZ Security Camera popular accessories
  • ACTi web interface live view with PTZ control sample

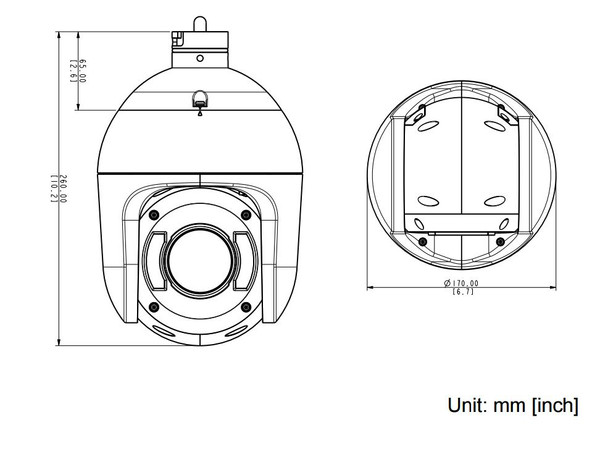

  • ACTi B949 PTZ Dimensions
Price:
$2,895.00
SKU:
B949
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

ACTi B949 2MP IR IP PTZ Security Camera is a powerful new Pan/Tilt/Zoom IP Camera that combines numerous best in class features for a superior PTZ unit. Equipped with a high quality 2MP CMOS Image sensor this PTZ Camera yields up to 60fps in full 1080P HD resolution. In addition the ability to support multiple video streams, various H.264 compression methods as well as MJPEG ensure flexible video management. In-depth Camera settings as well as added enhancements like 3D DNR, Extreme WDR and SLLS Superior Low Light Sensitivity promise vividly sharp video surveillance in the most challenging lighting conditions. Also outfitted with a 30x optical zoom and powerful IR LED Night Vision this PTZ Security Cameras provides superior night-time surveillance compared to traditional non-IR speed dome cameras.

ACTI B949 1080P IR PTZ IP Camera is innovatively designed to include maximum feature set for a top tier PTZ unit. The device includes Two Way Audio, Alarm I/O and Micro SDHC or SDXC local recording. Truly Intelligent operations support URL commands to numerous IT protocols and the latest ONVIF formats. Another significant advantage is the PTZ offers a wide selection of Edge based (on-camera) Video Analytics like PTZ Auto Tracking, Object Based Motion Detection to Line Crossing, Area Intrusion and more. The device likewise covers smart event triggers to event notifications for automated surveillance system operation. Built tough, the device is IP66 weatherproof and IK10 vandal proof, plus has specialized lens with scratch resistance and water repellent properties. Power up with traditional 24VAC and included Power Supply or High PoE for simplified single cable install. Various mounting adapters from Pole Mounts to Wall Mounts and more promise flexible installation.

ACTi B949 IR PTZ Camera Features:

  • 2 Megapixel (2MP) Image Sensor 1/2.8" Progressive Scan CMOS
  • Adaptive IR LED with 150 meter effective Infrared Illumination
  • 30x optical f4.5-135mm DC iris, Auto focus
  • Horizontal Field of View (HFOV wide 59.8° - zoom 2.34°)
  • Pan Range: 360° endless and Extended Tilt Range: -20°~200°
  • Triple-Streaming with H.264 (Baseline/ Main/ High profile) or MJPEG Compression
  • Maximum Frame Rate: 60 fps at 1920 x 1080 (1080P), 60fps at 1280 x 720 (720p), 30fps at VGA and CIF
  • Wide Dynamic Range: Extreme WDR (145 dB)
  • Superior Low Light Sensitivity: ACTi SLLS
  • Digital Noise Reduction: 2D + 3D DNR
  • Privacy Mask: 20 independent 3D privacy masks
  • Image Enhancement: White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Defogging, Digital Image Stabilizer, Shock Detection
  • Built-in Analytics Object Based Motion Detection, Tamper, Shock Detection, PTZ Auto Tracking, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering
  • Image Orientation: Flip, Mirror, Rotation
  • Two Way Audio: Line-in, Line-out
  • Network Protocol & Services: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Digital Input/Output: I/O 4/2
  • Local Storage: Micro SDHC, Micro SDXC memory card slot (card not included)
  • Power Source: AC 24V, High PoE - Power Draw: 25.5 W (PoE)
  • Environmental Casing: Weatherproof (IP66), Vandal proof metal casing (IK10), Built-in dehumidifier, Scratch-resistant and water-repellent lens glass
  • Multiple Optional Mounting Accessories for Pendant, Wall Mount, Corner Mount, Pole Mount, etc.
  • Built-in Fan, Heater and Dehumidifier
  • Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F) Low Temps within 30 Minutes of Start-up
  • Approvals: CE, FCC, IP66, NEMA 4X, IK10 (metal casing), UL (for bundled power adapter)
  • Warranty: 3 Year(s)* (3 months in continuous motion)
  • ONVIF Compliant Yes, Profile S, Profile G
  • Web Browser IE 9.0 or newer, Firefox with VLC, Chrome with VLC, and Safari with QuickTime
  • Dimensions: (Φ x H) 170mm x 260mm (6.69" x 10.23")
  • Weight: 3112 grams (6.86 lbs.)
