Samsung SNB-1001 VGA Box IP Network Color Security Camera

  • SNB-1001, samsung, VGA, IP, POE, Security, Camera, Box,
  • SNB-1001, samsung, VGA, IP, POE, Security, Camera, Box, network
  • SNB-1001, samsung, VGA, IP, POE
  • SNB-1001, samsung, VGA
Calculated at checkout

Product Description

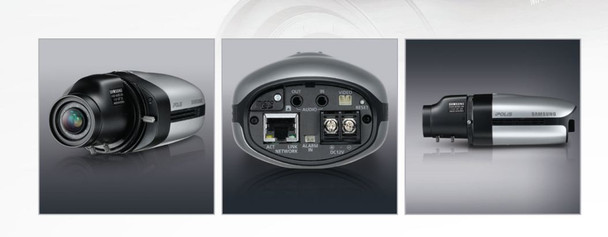

Samsung SNB-1001 is a VGA IP Box Network POE Security Camera  featuring the WiseNetS DSP with a 30 fps VGA (640x480) resolution box style camera with a small form factor for box style applications. The camera has an enormous amount of features like the incorporation of the powerful WiseNetS DSP microchip. WiseNetS lets the user have the sensible and latest operations that are very helpful in maintaining the security of the viewed area. Some of the things that this microchip comes to have are Facial Detection, Motion Detection, (SSDR) Samsung Super Dynamic Range, 2D and 3D (SSNRIII) Samsung Digital Noise Reduction and Polygonal privacy masking. The Polygonal Privacy masking is one of the newest features that come with this microchip. This feature lets the user keep certain points that are considered very private in the camera. This is a need in comfort rooms for instance where private parts should be kept in privacy. While some models have rectangular privacy masking tool, SNB-1001 has polygonal one which lets the user have freedom in adjusting the shape of the spot to be masked. Multiple streaming can be achieved with both compression formats yielded by the device, the H.264 and MJPEG dual encoding, there is never a problem when it comes to compatibility. Plus, the device has a Bi-Directional Audio that sees to it that the audio in the data taken reaches the monitors at real time with no lags. PoE provides power and secures the data that is taken by the device. Should you choose to store the data on site for back, there is a micro SD card slot. Samsung day/night feature is by software. This camera is Onvif friendly.



Samsung SNB-1001 Main features:

  • 30fps at VGA(640x480) resolution
  • H.264, MJPEG Dual Encoding
  • Multiple Streaming
  • Day and Night Function (Software)
  • PoE, Micro SD Slot, Bi-Directional Audio
  • Motion Detection, Face Detection

Samsung SNB-1001 Specifications:


  • Imaging Device 1/4" PS CMOS
  • Total Pixels 680(H) x 512(V)
  • Effective Pixels 640(H) x 480(V)
  • Scanning System Progressive
  • Min. Illumination 0.7Lux (F1.2, 50IRE)
  • S / N Ratio 50dB
  • Video Out DIP connector type, for installation
  • LENS
  • Lens Type Manual / DC auto iris
  • Mount Type C / CS
  • Camera Title Off / On (Displayed up to 15 characters)
  • Day & Night Auto (S/W) / Color / B/W / External
  • Backlight Compensation Off / BLC
  • Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
  • Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
  • Motion Detection Off / On (4 programmable zones)
  • Privacy Masking Off / On (32ea 4 points polygonal)
  • Sens-up (Frame Integration) Off / Auto (2x ~ 60x)
  • Gain Control Off / Low / Medium / High
  • White Balance ATW / AWC / Manual / Indoor / Outdoor
  • Electronic Shutter Speed Auto / A.FLK / Manual (60x ~ 1/12000sec)
  • Flip / Mirror Off / On
  • Intelligent Video Analytics Face detection
  • Alarm I/O Input 1ea
  • Ethernet RJ-45 (10/100BASE-T)
  • Video Compression Format H.264, MJPEG
  • Resolution 640 x 480 / 320 x 240 / 160 x 120
  • Max. Framerate Max. 30fps at all resolutions
  • Video Quality Adjustment H.264 : Compression level, Target bitrate level control
  • MJPEG : Quality level control
  • Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
  • Streaming Capability Multiple streaming (Up to 10 profiles)
  • Audio I/O Mic/Line in , Line out
  • Audio Compression Format G.711 u-law
  • Audio Communication Bi-directional audio
  • IP IPv4, IPv6
  • FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
  • Security HTTPS(SSL) login authentication, Digest login authentication
  • IP address filtering, User access log, 802.1x Authentication
  • Streaming Method Unicast / Multicast
  • Max. User Access 10 users at unicast mode
  • Memory Slot Micro SD/SDHC memory slot
  • ONVIF Conformance Yes
  • Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
  • Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
  • Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS
  • Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari
  • Central Management Software NET-i viewer
  • Operating Temperature / Humidity -10C ~ +50C (+14F ~ +122F) / 20% ~ 80% RH
  • Input Voltage / Current 12V DC / PoE (IEEE802.3af)
  • Power Consumption Max. 3.4W (12V DC), Max. 4W (PoE)
  • Color / Material Black, Silver / Aluminium, Plastic
  • Dimensions (WxHxD) 74.3 x 54.5 x 114.4mm (2.93" x 2.15" x 4.50") excluding projections
  • Weight 190g (0.42 lb)
