Messoa SCR510HB-HN2 High Contrast B/W License Plate Capture Camera

  • Messoa SCR510HB-HN2 High Contrast 600TVL License Plate Capture Camera
  • Messoa SCR510HB-HN2 Key LPR Camera Features

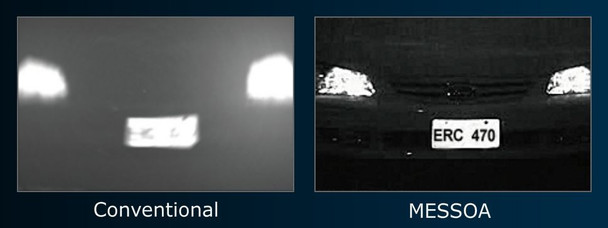

  • Messoa SCR510HB-HN2 True LPR High Contrast License Plate Capture example

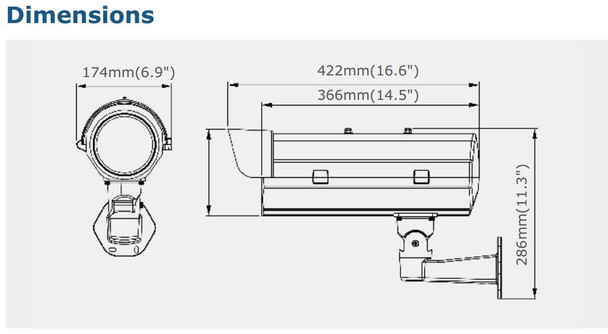

  • Messoa SCR510HB-HN2 Camera Dimensions
Calculated at checkout

Product Description

Messoa SCR510HB-HN2 License Plate Capture Camera is a high performance LPR or ANPR Camera deliver day and night vehicle plate capture. The Messoa SCR510HB-HN2 delivers class leading performance with powerful Infrared Illumination and superior High Resolution. The Camera is geared for medium to long range capture with a Fixed 75mm lens, yet also offers a 50mm lens option for closer placement to the vehicle. The Messoa SCR510HB-HN2 LPR Camera is further capable of capturing higher speed vehicle at speeds over a 100 mph.
Messoa SCR510HB-HN2 License Plate Security Camera provides superior High contrast plate capture which means clear plate images are delivered day or night regardless of light sources like head lights. The Messoa License Plate Camera also includes Messoa CatchAll engine which helps the camera deliver optimal vehicle license plates specifically to applications like LPR (License Plate Recognition) Systems. The Messoa LPR Camera is a solid unit with a vandal resistant and impact resistant construction that offers an IP67 weatherproof rating for reliable operation in harsh environments. Further benefits of the Messoa ANPR Camera are its OSD menu including RS-485 control and added protection with Cable Feed Through bracket. This unit is an ideal solution for Automatic Numeric Plate Recognition (ANPR) Systems,  License Plate Recognition (LPR) Systems as well as high security surveillance.

Messoa SCR510HB-HN2 Main Features:

  • True License Plate Capture Camera for LPR Systems and High Security
  • Superb High Resolution 600TVL B/W Optimized High Contrast Images
  • Powerful IR and 75mm Lens offer extended Capture Range (50mm Lens optional)
  • Messoa CatchAll Technology for Optimal License Plate Capture
  • Rugged Vandal-proof Weatherproof IP67 Outdoor Construction
  • Built-in Heater/Blower for extended operating range
  • CCTV Composite output and OSD Menu with Rs-485 Remote Control Supported
  • (NTSC) EIA / (PAL)CCIR Models available
  • 24VAC Power Input 45 Watts Max

Messoa SCR510HB-HN2 Specifications:

Signal system: EIA / CCIR
Imaging area: 7.4 mm x 5.95 mm
Image pickup device: 1/2" SONY CCD
Effective pixels(HxV): 768(H) x 494 (V) /752(H) x 582(V)
Scanning System: 2:1 Interlace V: 59.94Hz, H: 15.734KHz / 2:1 Interlace V: 50Hz,H: 15.625KHz
Sync system: Internal / Line-Lock (AC input only)
Horizontal resolution: 600 TVL
Infrared illuminator 70M distance, 850nm wavelength, view angle of 6 degree
LEDs: Superior power: 96 pcs LEDs; Metaphase-type LEDs, high-efficient array
Gamma correction: 0.45 / 1
Minimum illumination: IR on 0 lux
S/N ratio: More than 50dB (AGC off)
Built-in Lens: f : 75 mm; F: 3.9~32 (Manual Iris) plus 50mm Optional
Gain control: 0 / 6 / 12 / 15 / 18 / 24 / 30
Electric shutter: Auto 1/60 to 1/100,000sec. / manual 9 steps (1/60, 1/100, 1/250, 1/500, 1/1K, 1/2K, 1/4K, 1/10K, 1/100Ksec.) or CCIR : Auto 1/50 to 1/100,000sec. / manual 9 steps (1/50, 1/120, 1/250,
1/500, 1/1K, 1/2K, 1/4K, 1/10K, 1/100Ksec.)
BLC: BLC1 / BLC2 / BLC3 / BLC4 / Off
Aperture: High / Mid / Low
Remote control: RS485 via PELCO P/D
Video output: 1Vpp composite output, 75 ohm
Dimension: 422mm (L) X 174 (W) X 145mm (H)
Weight: 6 kg (13.22 lbs.)
Accessories: Wall mount/ Corner mount/ Pole mount
Operating temperature: -30 C ~ 50 C
Operating humidity: 30% ~ 90% RH
Storage temperature: -30 C ~ 60 C
Protection Class: IP66 Weatherproof
Power requirement / Power Consumption: 24VAC / 45 Watts (w/ Heater Blower)
