Geovision GV-FER5302 5MP Rugged Fisheye IP Camera

  • Geovision GV-FER5302 5 MegaPixel Rugged Fisheye IP Camera IP67
  • Geovision GV-FER5302 Rugged Fisheye Security Camera In-ceiling
  • Geovision GV-FER5302 Rugged Fisheye Top View
  • Geovision GV-FER5302 Fisheye internal Diagram of Functions
  • Sample of Fisheye Security Camera 360 degree Source Image
  • Sample of Fisheye Security Camera 360 degree Source Image day/night
  • Geovision Fisheye Tilting Wall Mount
  • Geovision Fisheye Wall Mount Bracket
  • Geovision Fisheye Electrical Power Box Adapter
  • Geovision Pendant Wall Mount with Pole Adapter
  • Geovision Pendant Wall Mount Bracket
  • Geovision Pendant Wall Mount with Concave Wall Bracket
  • Geovision Pendant Wall Mount with Convex Wall Bracket and NEMA Box
  • Geovision Pendant Wall Mount with Convex Wall Bracket

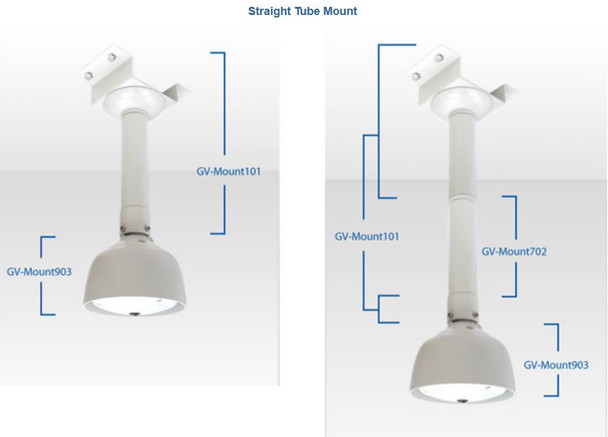

  • Geovision Pendant Straight Tube Mount
  • Geovision Pendant Straight Tube Mount with Box
Calculated at checkout

Product Description

Geovision GV-FER5302 5MP Rugged Fisheye IP Camera is design to deliver next generation IP Surveillance with 360 and 180 degree panoramic viewing. The units include up to 10fps in full 2560 x 1920 pixel (5 Megapixel) HD video surveillance and offer H.264 or MJPEG streaming. Equipped with true Day/Night, Digital Noise Reduction (DNR) and Wide Dynamic Range (WDR) the units ensure optimal video clarity in all types of lighting conditions. Designed to withstand harsh environments these units include a robust IP67 and IK10 vandal proof rating ideal for the toughest outdoor applications. On-board intelligence enables a complete IP Surveillance System with this Fisheye Security Camera alone, while third party integration such as ONVIF or Geovision GV-NVR Software included for Free enable diverse, powerful and professional Security Camera Systems.


Geovision GV-FER5302 Main Features:

  • 1/2.5" progressive scan CMOS
  • Single stream from H.264 and MJPEG
  • 10fps at (2560 x 1920) 5 Megapixel HD
  • True Day/Night w/IR Cut-Filter
  • On-board Video Storage via micro SD card slot (SD/SDHC)
  • Provides 360° and 180° panorama surveillance
  • Live viewing and Playback in any view angle and zoom level
  • Two-way audio w/Built-in microphone and speaker
  • Wide Dynamic Range (WDR), Digital Noise Reduction (2DNR) and Defog
  • Digital Object Tracking, Virtual PTZ function, Auto Pan Function
  • Tampering alarm, Privacy mask, Visual automation, Text overlay
  • Web interface Supports 31 Languages
  • ONVIF (Profile S) compliant
  • Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
  • IP67 Weatherproof outdoor ready and IK10 Vandal Resistant, High Impact rating
  • Power Input: 12VDC, 24VAC or PoE (IEEE 802.3af)
  • Dimensions:
  • Hard-Ceiling Mount Ø 160.25mm x 48.36mm (6.31” x 1.93”)
  • In-Ceiling Mount Ø 166.48mm x 48.36mm (6.55” x 1.93”)
  • Cable Length 1m (3.28 ft.)
  • Cable Diameter ø 6.2mm (0.24”)
  • Maximum Connector Diameter ø 30 mm (1.18”)
  • Weight: 500 grams (1.1 lbs)


Superb 5 Megapixel HD Fisheye IP Surveillance:
Equipped with a high definition 5 Megapixel CMOS image sensor and day/night IR cut-filter these units are designed to offer 24/7 video security in minimal lighting. Low Lighting imaging is achieved in both Color down to 0.15 lux or B/W to 0.10 lux. Other enhancements including WDR, DNR and diverse image control ensure optimal image clarity in adverse lighting. At up to 10fps in full 5 megapixel resolution and offering H.264 or MJPEG streaming units provide for modern security system requirements of all sorts. Users can also make use of the integrated Two Way Audio with built-in Microphone and Speaker for comprehensive area awareness. There are numerous more benefits of the Geovision GV-FER5302 Fisheye IP Cameras ranging from common functions like Privacy Masking to unique capabilities such as Visual Automation.


On-board Intelligence, Smart Functions:
Able to provide a complete security camera system with on-board 360 and 180 degree Panoramic viewing in any angle, these Fisheye Security Cameras include multiple recording methods, local storage, search, playback and export functions. The on-board recording is achieved via Micro SD or SDHC card while multiple recording options are presented. Mean-while professional video system management with Virtual PTZ, Auto Pan and Digital Object Tracking promise powerful IP surveillance. In other aspects such as adapting to IT network standards, optional network protocols like DynDNS, QoS, HTTPs, UPnP or RTSP are all supported. ONVIF, PSIA, FTP, SMTP or SNMP support are just further examples that enable sophisticated security system designs.


Superior Construction and Design:
Outfitted for rugged requirements these units include an IP67 weatherproof and IK10 vandal proof, high impact rating. Added Low Temperature operation to below -20 degrees Fahrenheit also ensures a solid IP surveillance solution in even the harshest environments. The device is provided with both a surface and recessed case mount (in-ceiling) while a huge assortment of mounting accessories such as tilting wall bracket, pendant or wall mounts and power box adapters are optional. Designed to integrate easily into a wide range of security system applications the device will accept 12VDC, 24VAC or PoE (IEEE 802.3af) power input. The units beyond that offer an easily managed web interface that is feature rich, yet simple to learn and every detail like multi-language support to complete menu driven settings for video, network, event, storage, system and plenty more are delivered. Geovision GV-FER5302 5 Megapixel Fisheye IP Cameras ensure superior area coverage in a sleek, low profile design that is hardly distinguishable as the HD IP security camera it is.


Packing List
1. Fisheye Camera
2. Camera Cover (Hard Ceiling Mount)
3. Screw (Hard Ceiling Mount) x 3
4. Plastic Screw Anchor x 3
5. Camera Cover (In-Ceiling Mount)
6. Screw (In-Ceiling Mount) x 3
7. Support Bracket x 3
8. Torx Wrench
9. Waterproof Rubber
10. Power Cable
11. Terminal Block x 2
12. Installation Sticker
13. Silica Gel Bag and Adhesive Tape x 2
14. Cable Connector
15. Power Adapter
16. GV-IPCAM H.264 Software DVD
17. GV-Fisheye IP Dome Hardware Installation Guide
18. GV-NVR Software DVD
19. GV-NVR Quick Start Guide
