Geovision GV-FER3402 3MP WDR Outdoor Fisheye IP Camera

  • Geovision GV-FER3402 Fisheye IP Camera Outdoor IP67
  • Geovision GV-FER3402 Fisheye IP Camera in-ceiling recessed mount
  • Geovision GV-FER3402 Fisheye Camera surface mount
  • Geovision GV-FER3402 Megapixel Fisheye IP Security Camera
  • Geovision GV-FER3402 Functions
  • Geovision GV-FER3402 Dimensions
  • Fisheye 360 Degree Source Image Sample
  • Geovision Tilting Wall Mount Bracket
  • Geovision Wall Mount Bracket
  • Geovision Electrical Power Box Bracket

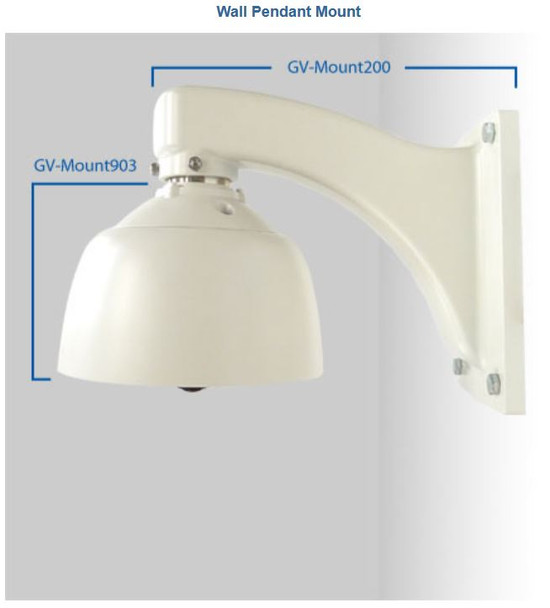

  • Geovision Pendant Wall Mount Bracket
  • Geovision Pendant Wall Mount Bracket with Concave Wall Adapter

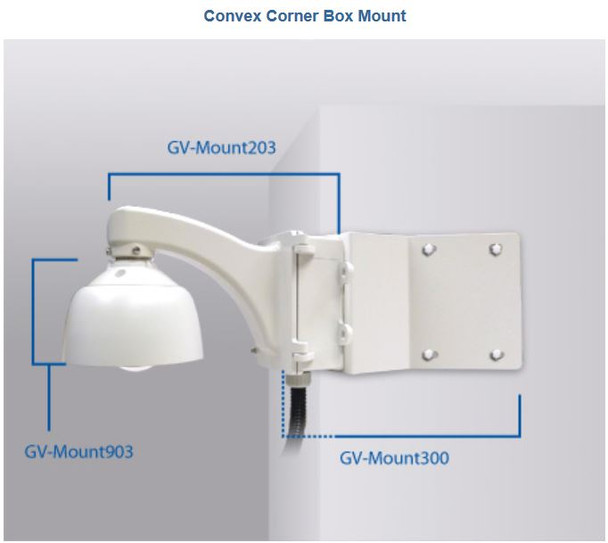

  • Geovision Pendant Wall Mount Bracket with Box and Convex Wall Adapter
  • Geovision Pendant Wall Mount Bracket with Convex Wall Adapter
  • Geovision Pendant Wall Mount Bracket with Box and Pole Mount Adpater
  • Geovision Pendant Wall Mount Bracket with Pole Mount Adapter
  • Geovision Pendant Straight Tube Mount with Box
  • Geovision Pendant Straight Tube Mount
Calculated at checkout

Product Description

Geovision GV-FER3402 3MP WDR Rugged Fisheye IP Camera is an outdoor ready, day/night solution for 360 degree and Panoramic IP Surveillance. Equipped with a powerful 3 Megapixel HD CMOS Sensor this unit delivers up to 15fps Real-motion video in H.264 or MJPEG at 2048 x 1536 pixels (3MP) for excellent clarity. The device is further enhanced with WDR Pro (Wide Dynamic Range), 2DNR (Digital Noise Reduction), Defog and supports diverse image settings for optimal scene clarity. Constructed in an IP67 weatherproof, IK10+ high impact and vandal proof metal casing this outdoor Fisheye IP Camera is rugged enough to withstand extremely harsh conditions. Loaded with features, Users will appreciate the wide range of capabilities from stand-alone IP Surveillance with local recording to ONVIF third party integration. Features from bi-directional Audio to virtual PTZ functions or Mounting accessories to included surface and recessed mounts promise professional results for all types of Security Camera System requirements.


Geovision GV-FER3402 Main Features:

  • 1/3.2" progressive scan CMOS
  • Single stream from H.264 and MJPEG
  • 15fps at (2048 x 1536) 3 Megapixel
  • True Day/Night (w/ IR-cut filter)
  • IR ring w/IR distance up to 10 meters (32.81 ft.)
  • Local Video Storage via micro SD card slot (SD/SDHC)
  • Superb 360° and 180° panorama viewing
  • Any Viewing angle and zoom, by multiple users including playback
  • Two-way audio w/Built-in Microphone and Speaker
  • WDR (Wide Dynamic Range), 2DNR (Digital Noise Reduction), Defog
  • Virtual PTZ function, Auto Pan Function, Digital Object Tracking
  • Tampering alarm, Privacy mask, Visual automation, Text overlay
  • Multi-Language (31) Web interface
  • ONVIF (Profile S) Compliant
  • Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
  • Weatherproof IP67 and IK10 Vandal Resistant Casing
  • Power Input: 12VDC, 24VAC or PoE (IEEE 802.3af)
  • Max. Power Consumption 3.6 W
  • Dimensions:
  • Hard-Ceiling Mount Ø 160.25mm x 48.36mm (6.31” x 1.93”)
  • In-Ceiling Mount Ø 166.48mm x 48.36mm (6.55” x 1.93”)
  • Cable Length 1m (3.28 ft.)
  • Cable Diameter ø 6.2mm (0.24”)
  • Maximum Connector Diameter ø 30mm (1.18”)
  • Weight 500 grams (1.1 lbs.)


3 Megapixel HD Day/Night 360 Fisheye Surveillance:
Geovision GV-FER3402 Fisheye IP Cameras deliver crisp 360 degree 3 Megapixel HD video surveillance at up to 15fps real-motion including H.264 or MJPEG video streaming. Built with a Day/Night mechanical IR cut-filter these units also include DNR (Digital Noise Reduction) and WDR (Wide Dynamic Range) for superior video quality in all types of lighting conditions. Low Light performance down to 0.05 lux promises an effective solution anywhere with minimal lighting. The benefits of in-depth camera image settings to functions like Defog ensure this unit can adapt to a variety of applications. Users can likewise utilize this full coverage IP camera with 360° and 180° panoramic viewing directly from the web interface, while specialized integration abilities like ONVIF compliance to RTSP streaming is all possible.


Advanced Security Features:
Total coverage and totally capable of performing as an all-in-one, stand-alone IP surveillance system. The GV-FER3402 3MP Fisheye security camera includes multiple recording methods, diverse viewing and control abilities as well as search, playback and export functions directly from the web interface. The device additionally adapts to all types of network protocol requirements such as FTP, DynDNS, HTTPs, QoS, UPnP and more. SD Card Recording, Two Way Audio to Simultaneous Multi-User support only scratches the surface of the advanced Megapixel Fisheye Security Camera. Tampering Alarm, Visual Automation to Virtual PTZ Function including Zoom and viewing from any angle on live or video playback, there are countless attributes to appease even the most demanding. Third party integration such as ONVIF is possible, but Geovision GV-NVR Surveillance Software is free of cost and fully professional solution.


Solid Construction, Flexible Design:
High Performance 3 Megapixel, 360 Degree Outdoor Fisheye Surveillance and an array of technology features are equally matched by the cameras hardware and physical design. The units are provided with both a surface mount and in-ceiling mount (recessed) camera case and are designed for wall, ceiling or even floor mounting. Geovision GV-FER3402 also offers a great selection of mounting accessories including pendant mounts, dome shields, wall mount pendants, tilting wall brackets to Power Box adapters for full customization of your security system installation. Multiple power input options also strengthens adaptability with PoE (IEEE 802.3af) as well as 12VDC or 24VAC all sorts installs are easily achieved. Users can also take advantage of its ability to install practically anywhere such as environments even as low as -22 degrees Fahrenheit. Thanks further to IP67 rugged weatherproof rating plus an IK10+ vandal resistant, high impact casing these Fisheye IP Cameras are made to withstand tough environments, direct assault or even attempted vandalism.


In the box:

1. Fisheye Camera
2. Camera Cover (Hard Ceiling Mount)
3. Screw (Hard Ceiling Mount) x 3
4. Plastic Screw Anchor x 3
5. Camera Cover (In-Ceiling Mount)
6. Screw (In-Ceiling Mount) x 3
7. Support Bracket x 3
8. Torx Wrench
9. Waterproof Rubber
10. Power Cable
11. Terminal Block x 2
12. Installation Sticker
13. Silica Gel Bag and Adhesive Tape x 2
14. Cable Connector
15. Power Adapter
16. GV-IPCAM H.264 Software DVD
17. GV-Fisheye IP Dome Hardware Installation Guide
18. GV-NVR Software DVD
19. GV-NVR Quick Start Guide

Last Updated March 20, 2015
