Dahua OEM NVR4216 16ch 1U Network Video Recorder

  • Dahua OEM NVR4216 16ch 1U Network Video Recorder

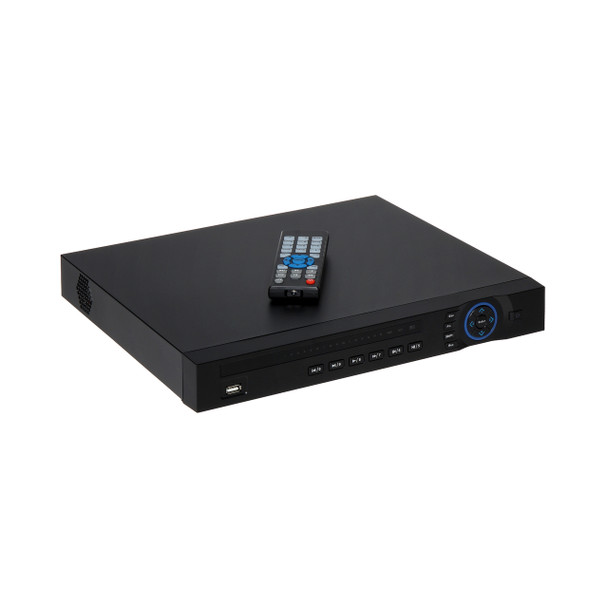

  • Dahua OEM NVR4216 16ch 1U NVR with remote
  • Dahua DMSS Mobile Surveillance System Applications
  • Dahua NVR4216 16ch rear diagram
Calculated at checkout

Product Description

Dahua OEM NVR4216 16ch 1U Network Video Recorder is a compact, high performing and highly cost effective NVR solution. The device delivers up to 200Mbps throughput for up to sixteen (16) IP Cameras. Support for both H.264 and MJPEG streaming including up to 5 Megapixel HD video per IP Camera is included. Strictly for performance, some add-on in the series like PoE switch are not included, but all the primary benefits one could ask for at this price are. The NVR supports local HDMI HD display to high capacity on-board storage with two internal SATA hard drive slots. The remote monitoring will surely impress with a full function web interface, free CMS software for MAC or PC computers and Free Mobile Applications for iPhone, iPad to Android are also provided. Despite such Economic NVRs typically being used only with the same IP Camera brand the Dahua OEM NVRs support a wide range of 3rd party brands on a per model basis while also offering ONVIF to RTSP streaming compliance.

Dahua OEM NVR4216 NVR Features:

  • Linux Embedded Network Video Recorder
  • 16 channel IP camera Support up to 5 Megapixel Streams
  • 200Mbps bandwidth throughput with H.264 or MJPEG dual codec decoding
  • HDMI/VGA simultaneous HD video display output
  • All channel synchronous real-time playback, GRID interface
  • Full Function Web Interface plus PC or MAC supported VMS and CMS Software (DSS/SmartPSS)
  • DMSS Dahua Mobile Viewing Applications are also available for Windows, iPhone, iPad and Android devices
  • 3rd Party IP cameras: Dahua, Arecont, AXIS, Bosch, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and more
  • ONVIF Compliant plus IT functions like IPv4/IPv6, UPNP, RTSP, DNS, IP Filter, DDNS, FTP, Alarm Server
  • 3D intelligent positioning with Dahua PTZ camera
  • Supports 2 SATA HDD, External Rear USB 3.0 and Front USB 2.0
  • Power Supply Included: Auto AC 100~240V, 50/60Hz to 12VDC
  • Power Consumption NVR: 20W (without HDD)
  • Working Environment: -10°C~+55°C / 10%~90%RH / 86~106kpa
  • Dimensions: (W×D×H) 1U, 375mm×327mm×53mm
  • Weight: 4.4lbs. Or 2KG (without HDD)

NOTICE: OEM products are original to referenced model except produced without brand labels for re-branding.


Pro Video Security System Management:
The Dahua OEM NVR4216 16 channel NVR system will provide you the absolute best performance and feature set you can get for such an amazing cost. The device is purpose built for performance and includes the primary attributes for success in many IP Surveillance projects. Local HDMI, front panel to USB mouse or optional System Controller deliver localized management in a sleek, simple to learn GUI. The remote viewing capabilities are even far more advanced but likewise deliver user friendly operation that you will simply enjoy. Versatility is likewise no hurtle, Web browser Interface to CMS Software that supports MAC or PC allows users to access this system from practically any computer console. Take into account next Windows Phone, iPhone, iPad or Android mobile applications and convenience plus ability is a sure thing.

Professional Hardware and Software Standards:
Dahua OEM NVR4216 16ch Network Video Recorder is a 1U small form factor Linux embedded video recorder that offers maximum price for performance ratio. The device includes however still lots of benefits like Two Way Audio via RCA input/output as well as an Alarm I/O interface for integration of external devices directly to the recorder. Functions like these are paralleled in the on-board intelligence that ranges from various detection and notification methods to privacy masking or precise search or playback options. Administrators, Users or Installers will appreciate device simplicity yet capability with countless IT network protocols supported to in-depth user access management and overall easy installation.

Last Updated May 2nd, 2016
