Bosch VJR-F801 AutoDome Junior HD IP Dome Camera IVA

  • Bosch VJR-F801 Series AutoDome Junior HD IP Dome Camera with IVA
  • Bosch VJR-F801 Series AutoDome Junior HD Dome Key Features:
  • Bosch VJR-F801 Series AutoDome Junior HD IP Dome mounting examples
  • Bosch VJR-F801 Series AutoDome Junior HD IP Dome Camera sizes

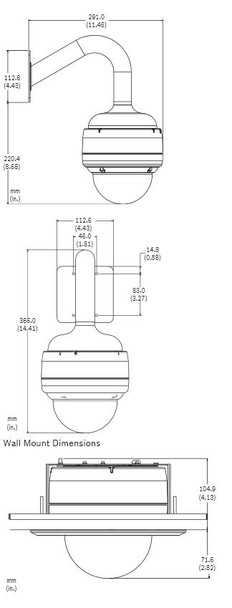

  • Bosch VJR-F801 Series AutoDome Junior HD IP Dome Camera mounting options

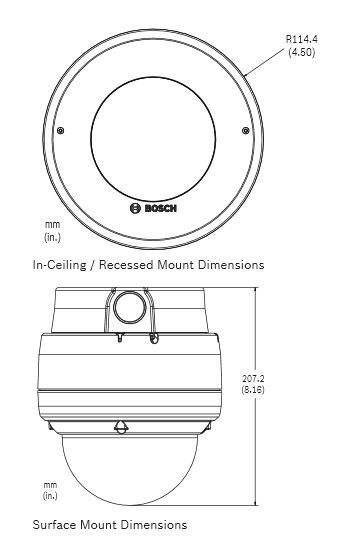

  • Bosch VJR-F801 Series AutoDome Junior HD IP Dome Camera mounting options 2

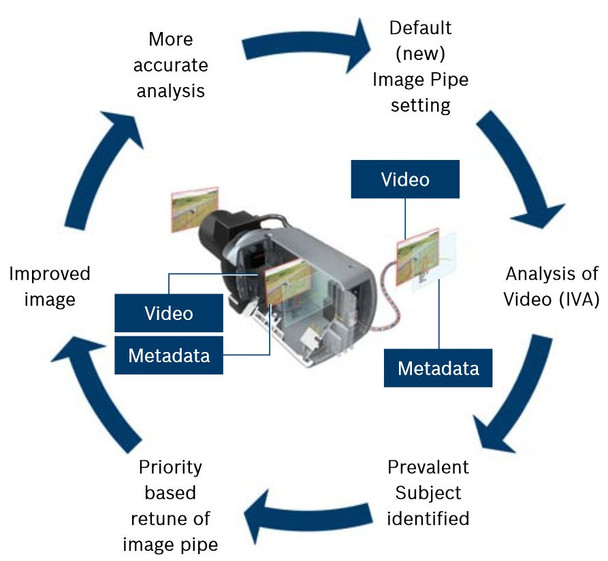

  • Bosch VJR-F801 Series AutoDome Junior HD Built-in IVA (intelligent video analysis) video analytics
Price:
$1,640.00
SKU:
VJR-F801-IWCV
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Bosch VJR-F801 Series AutoDome Junior HD IP Dome Camera is a modernized fixed High Definition 1080P Network Dome Security Camera. The Bosch VJR-F801 AutoDome is equipped with a high performance 2.1 Megapixel progressive scan CMOS sensor while utilizing H.264 and MJPEG compression methods for quality video streaming. The unit provides Real-time 30fps in full 1080P HD or higher frame rates of up to 60fps in 720P High Definition. With Triple Streaming the Autodome Junior HD is perfect applications requiring alternative video streams for optimized viewing and recording. The Bosch Autodome Junior HD Dome Camera is also a Day/Night camera and has a WDR 50db specification for high quality IP Surveillance.
Bosch VJR-F801 Series AutoDome Junior HD IP Dome Security Camera is built with advanced Motion Plus which is an advanced motion detection algorithm with size filtering and intelligent tamper detection capabilities. This superior Edge Based Video Analysis or Video Analytic reduces the workload on NVR Systems\ or even allows the unit to operate as a stand-alone surveillance system thanks to on board recording to High Capacity MicroSDXC memory Card. Another impressive features of the Bosch AutoDome is that the unit can be entirely commissioned remotely even allowing positioning and focusing from the head end unit or built-in web browser. The unit is built with a 10x optical zoom lens, features Audio and alarm inputs plus relay output for a wide range of professional installations. The Bosch AutoDome Junior HD Dome Camera allows 24VAC or PoE+ (high PoE IEEE 802.at) and is ONVIF Complain for flexible third party IP system integration. Furthermore the Bosch VJR-F801 Series AutoDome Junior IP HD Dome Security Cameras are IP54 weather rated and constructed from aluminum die cast casing with acrylic vandal dome design for maximum protection against the toughest environments. Bosch Autodome Junior HD Dome camera is also available with a selection of mounting options for all you IP Surveillance needs.

Bosch VJR-F801 Series Main Features:

  • 1080P HD (High Definition) Video Surveillance
  • Real-time 30fps Video in 1080P HD  and 60fps in 720p
  • Bosch IVA (Intelligent Video Analysis) Edge-based Video Analytics
  • Multi-streaming in H.264 or MJPEG video codec.
  • 10x Automatic Varifocal Lens (Motorized remote Focus/Zoom plus Auto back-focus.
  • Ultra-low profile, indoor compact mini dome camera
  • Internal Camera 3 Axis Adjustments
  • Vandal-Resistant IP54 ingress Rated.
  • Memory Card Slot, Alarm Input, Relay output and (Service Only) Monitor Output
  • ONVIF Support for integration with third party IP Systems.
  • Flexible Power Input with 24VAC or PoE+ (High PoE) Support



Bosch VJR-F801 Technical Specifications:

10x HD Day/Night Camera
Imager
1/2.5 inch progressive scan CMOS
Number of Pixels
2.1 Megapixels
Aspect Ratio
16:9
Lens
10x optical zoom (6.3 to 63 mm)
(F1.8/F2.5 to close)
Focus
Single-shot autofocus
Iris
Automatic with manual override
Field of View
Horizontal: 5.5° to 50.6°
Vertical: 3.1° to 29.3°
Automatic Gain Control
Normal, Medium, High, Fixed
Synchronization
Internal
Aperture Correction
On/Off
Digital Zoom
16x
Sensitivity(typical)
1
30 IRE
2
50 IRE
Day Mode
SensUP Off
1.2 lx
2.0 lx
SensUP On (64x)
0.038 lx
0.063 lx
Night Mode
SensUP Off
0.06 lx
0.1 lx
SensUP On (64x)
0.0018 lx
0.0031 lx
Electronic Shutter Speed
(AES)
1x to 64x; 1/50 (1/60) to 1/10000
Signal to Noise Ratio
> 50 dB (AGC off)
Wide Dynamic Range
50 dB
Backlight Compensation
On/Off
White Balance
ATW, Indoor, Outdoor, AWB Hold, Extended ATW, Manual
(adjustable R and B signals in Manual mode)
Day/Night
Monochrome, Color, Auto
1. F1.8, 1/30 (1/25) shutter, maximum AGC.
2. Tinted bubble adds 0.8 f-stop loss.
Software Control
Camera Setup/Control
Via Internet Explorer Web browser version
7.0 version or later, Bosch Configuration
Manager, or BVMS
Software Update
Firmware upload
Network
Standards
H.264 (ISO/IEC 14496-10), M-JPEG, JPEG
Streaming
Individually configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth;
• 1080p3
0
One (1) H.264 1080p30 stream plus one (1)
M-JPEG and one (1) I-frame stream
• 720p60
One (1) H.264 720p60 stream plus one (1)
M-JPEG and one (1) I-frame stream
• 720p30
Two (2) independently configurable H.264 streams:
One (1) H.264 720p30 stream,
One (1) H.264 BP+ or H.264 MP SD stream,
plus one (1) M-JPEG and one (1) I-frame stream
GOP Structure
IP, IBP, IBBP
Data Rate
9.6 kbps to 6 Mbps
Overall IP Delay
240 ms
Resolutions (H x V) and Frame Rates
Stream 1
• Full HD/1080p
1920 x 1080, 30 ips
• HD/720p
1280 x 720, 60 ips
• HD/720p
1280 x 720, 30 ips
Stream 2
3
• SD/480p (WVGA)
4
854 x 480, 30 ips
• SD/240p (WQVGA)
4
432 x 240, 30 ips
3. Stream 1 must be set to 720p at 30 ips.
4. Images displayed in 16:9 aspect ratio.
Network
Protocols
RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP NTCIP Protocols
• CCTV Camera
Control
NTCIP 1205
• Application
Layer
SNMP per NTCIP 1101:1996 & NTCIP 2301
• Transport/Network
Layers
TCP/IP per NTCIP 2202:2001
• Sub-network
Layer
PMPP (Point to Multi-Point Protocol) per
NTCIP 2101:2001 & NTCIP 2102:2003
Ethernet
10-Base T/100 Base-TX, auto-sensing, half/
full duplex, RJ45
PoE+ IEEE 802.3at, class 4
Electrical
Rated Voltage
24 VAC ± 10%, 50/60 Hz or PoE+ (IEEE 802.3at, class 4)
Power Draw
14 W typical
Environmental
Operating Temperature
–10°C to 40°C (14°F to 104°F)
Storage Temperature
–20°C to 60°C (–4°F to 140°F)
Operating Humidity
0% to 90% relative, non-condensing
Water/Dust Protection
IP54
(excluding VJR-A3-IC mounting option)
Miscellaneous
Masking
Fifteen (15) individually configurable
privacy masks
Protocol Support
Bosch (OSRD), ONVIF
Supported Languages
English, German, Dutch, French, Italian, Spanish, Portuguese, Polish, Russian, Chinese, and Japanese
User Connections
Power
• PoE+, Indoor Models
RJ-45 100 Base-TX Ethernet PoE+ IEEE
802.3at, class 4
• Camera, All Models
24 VAC, 50/60 Hz
Video and Control
RJ-45 100 Base-TX Ethernet
Alarm Input (2)
NC/NO
Alarm Output
Open collector NPN
32 VDC @ 150 mA max
Audio
9 K Ohm typical 5.5 Vp-p max
Construction
Size (Diameter x Height)
153.0 x 133.0 mm
(6.02 x 4.61 in.)
Bubble Size
128.0 mm (5.04 in.)
Weight
1.92 kg (4.24 lb.)
Material
• Housing
Cast aluminum
• Bubble
Acrylic
Color
White or Charcoal



Ordering Information
VJR-F801-ICCV Fixed Indoor 10x AutoDome Junior HD
with IVA, Charcoal, Clear Bubble
Indoor AutoDome Junior HD Fixed camera with IVA,
charcoal, 10x day/night camera with clear bubble
Order number
VJR-F801-ICCV

VJR-F801-IWCV Fixed Indoor 10x AutoDome Junior HD
with IVA, White, Clear Bubble
Indoor AutoDome Junior HD Fixed camera with IVA,
white, 10x day/night camera with clear bubble
Order number
VJR-F801-IWCV

VJR-F801-ICTV Fixed Indoor 10x AutoDome Junior HD
with IVA, Charcoal, Tinted Bubble
Indoor AutoDome Junior HD Fixed camera with IVA,
charcoal, 10x day/night camera with tinted bubble
Order number
VJR-F801-ICTV

VJR-F801-IWTV Fixed Indoor 10x AutoDome Junior HD
with IVA, White, Tinted Bubble
Indoor AutoDome Junior HD Fixed camera with IVA,
white, 10x day/night camera with tinted bubble
Order number
VJR-F801-IWTV

Accessories
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50
VG4-A-PSU0 24 VAC Power Supply Unit
24 VAC, 100 W, white, for an AutoDome Series camera
Order number
VG4-A-PSU0
VG4-A-PSU1 120 VAC Power Supply Unit
120 VAC, 100 W, white, for an AutoDome Series
camera
Order number
VG4-A-PSU1
VG4-A-PSU2 230 VAC Power Supply Unit
230 VAC, 100 W, white, for an AutoDome Series
camera
Order number
VG4-A-PSU2
VJR-A3-IC AutoDome Junior HD Indoor In-ceiling Mount
Order number
VJR-A3-IC
VJR-A3-IC54 AutoDome Junior HD Plenum-rated In-ceiling Mount
Order number
VJR-A3-IC54
VJR-A3-SP In-ceiling Support Kit for AutoDome 700/800
Series and AutoDome Junior HD
Suspended ceiling support kit for AutoDome 700 and
800 Series and AutoDome Junior HD In-ceiling mounts
Order number
VJR-A3-SP
VEZ-A2-JC Surface Mount Adapter
Charcoal adapter for AutoDome Junior surface
installations
Order number
VEZ-A2-JC
VEZ-A2-JW Surface Mount Adapter
White adapter for AutoDome Junior surface
installations
Order number
VEZ-A2-JW
VEZ-A2-PC AutoDome Junior Pipe Mount
Charcoal
Order number
VEZ-A2-PC
VEZ-A2-PW AutoDome Junior Pipe Mount
White
Order number
VEZ-A2-PW
VEZ-A2-WC AutoDome Junior Wall Mount
Charcoal
Order number
VEZ-A2-WC
VEZ-A2-WW AutoDome Junior Wall Mount
White
Order number
VEZ-A2-WW
VJR-SBUB2-CL AutoDome Junior HD Clear Bubble
Order number
VJR-SBUB2-CL
VJR-SBUB2-TI AutoDome Junior HD Tinted Bubble
Order number
VJR-SBUB2-TI
