ACTI B95 2MP 1080P Mini PTZ Vandal Dome IP Camera 10x

  • ACTi B95 2MP 1080P HD VANDAL MINI PTZ IP CAMERA
  • ACTi B95 2MP Outdoor Mini PTZ IP Security Camera

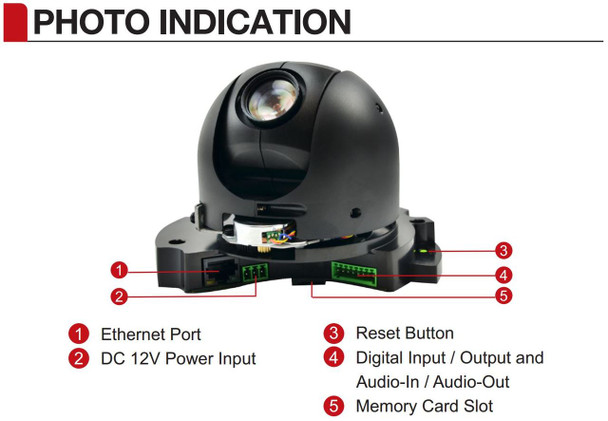

  • ACTi B95 internal PTZ diagram
  • ACTi B95 PTZ dimensions

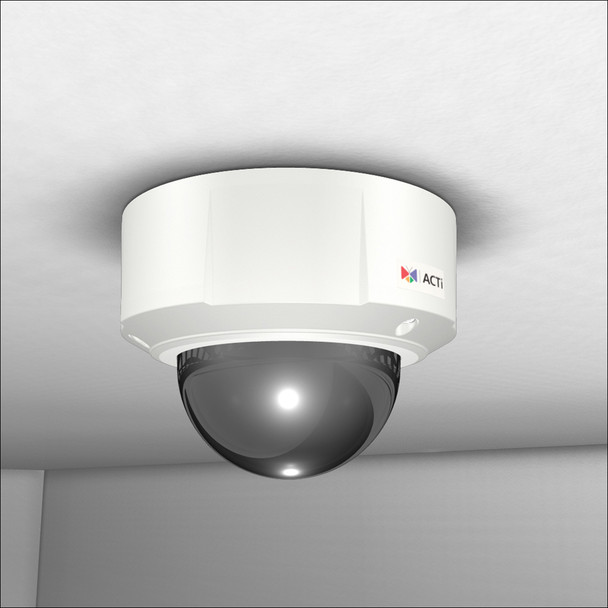

  • ACTI B95 Standard Surface Mounting
  • Optional Mini PTZ In-ceiling recessed (flush) mount kit PMAX-1013

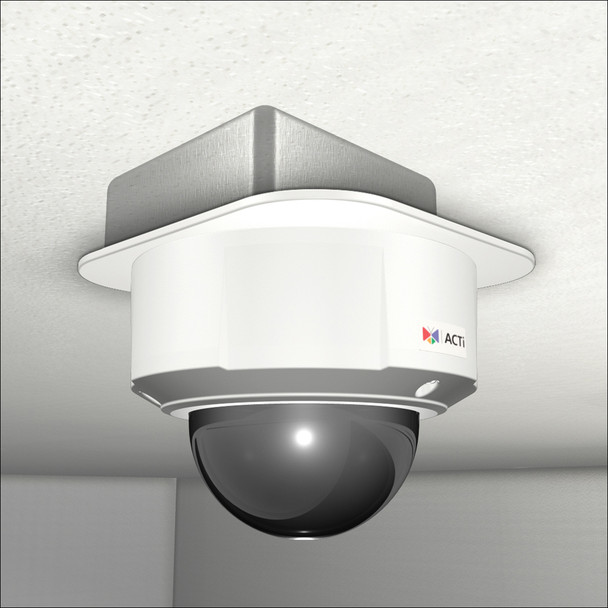

  • Optional Mini PTZ Electrical Power Box Adapter Plate PMAX-0804
  • Optional Mini PTZ Wall Mount SMAX-0246
  • Optional Mini PTZ Wall Mount L Type Bracket PMAX-0308

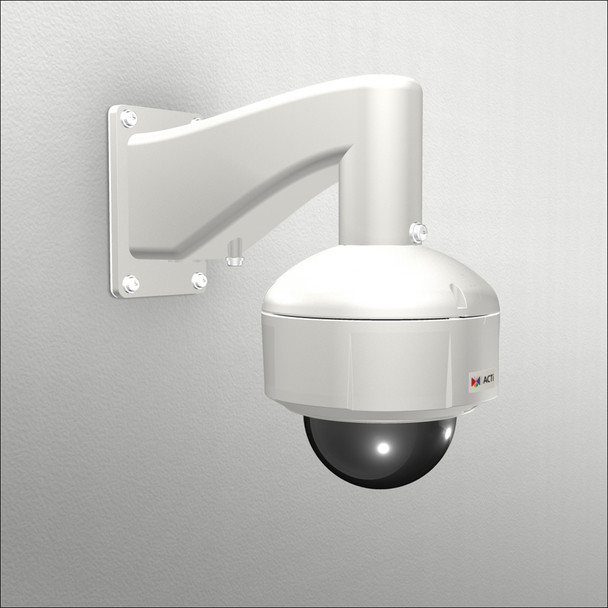

  • Optional Outdoor Wall Mount Pendant Mini PTZ Kit SMAX-0150
  • Optional Outdoor Mini PTZ Ceiling Pendant Tube Mount Short Kit SMAX-0051

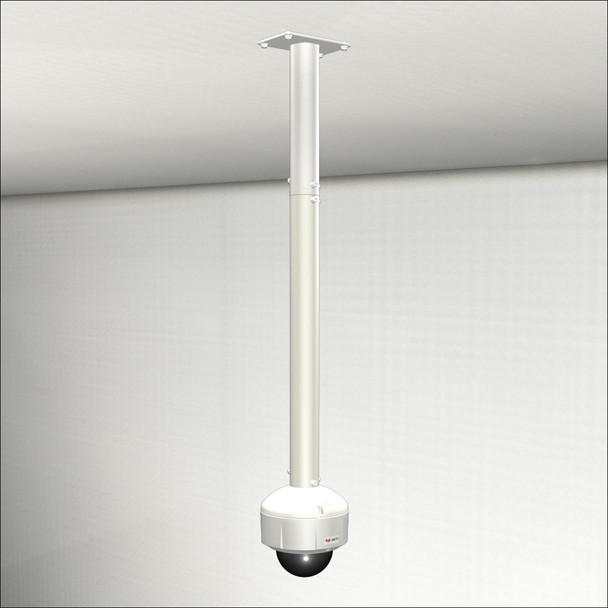

  • Optional Outdoor Mini PTZ Ceiling Pendant Tube Mount Extended Kit SMAX-0047
  • Optional Outdoor Mini PTZ Vertical Pole Pendant Tube Mount Extended Kit SMAX-0100
  • Optional Goose-neck Mini PTZ Wall Mount Kit SMAX-0065

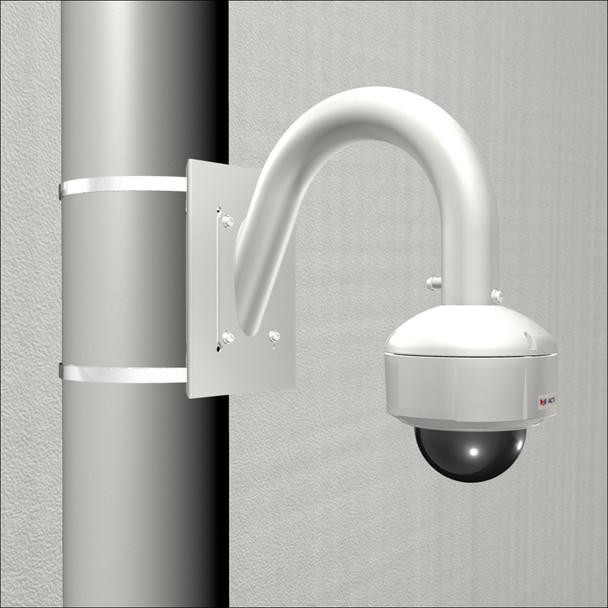

  • Optional Goose-neck Mini PTZ Wall plus Pole Mount Adapter Kit SMAX-0110
  • Optional Mini PTZ Wall and Pole Mount Adapter Kit SMAX-0252

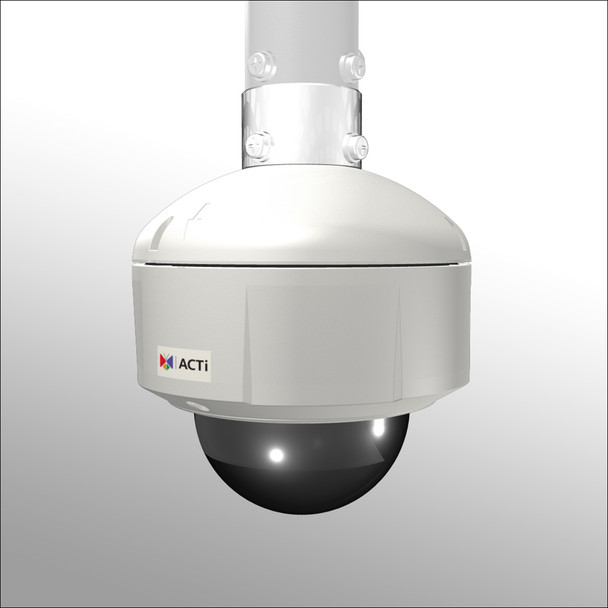

  • Optional Pendant NPT Adapter Kit SMAX-0152
Price:
$755.00
SKU:
B95A
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

ACTi B95 2MP Mini PTZ IP Cameras are an ideal choice for high performing, pro IP surveillance requiring a low profile, rugged Pan/Tilt/Zoom Security Camera. These units couple an HD progressive Scan CMOS sensor with an IR Cut-filter for true Day/Night while a variety of added image enhancements like WDR or DNR ensure optimal video quality. Built to deliver best in class features in a compact package, the ACTi B95 Mini PTZ Camera offers Full 1080P HD resolution in Real-time. Likewise Support for Dual Streaming to H.264 efficiency or the many selectable network protocols promise to ease integration for all types of security system requirements. Outfitted with a 10x optical zoom, a wide Pan/Tilt Range plus support for Preset Positions or Guard Tours delivers the experience of a full sized HD PTZ Camera. As clearly another advantage, these units are discreet with the size of a typical Vandal Proof Dome, these devices are small form factor, IK10 high impact and IP67 weatherproof ready making them perfect for nearly any environment.


ACTi B95 Main Features:

  • 2MP Progressive Scan CMOS HD Sensor
  • Dual Streaming with H.264 or MJPEG
  • 2MP (1920x1080) at 30fps Real-time
  • 10x Optical Zoom Lens (f4.9mm-49mm DC Iris Auto Focus)
  • Pan: -175°-175°, Tilt: 0°-180° (with E-flip)
  • True Day/Night ICR Color: 0.1 lux, B/W: 0.05 lux at F1.8
  • Basic WDR (75dB Wide Dynamic Range), SLLS (Superior Low Light Sensitivity), DNR (Digital Noise Reduction)
  • On-Board Storage via MicroSDHC or MicroSDXC
  • Two Way Audio with Line Input (Terminal)
  • Alarm Digital I/O 1 input/1 output (Terminal)
  • Alarm Triggers: Motion, Sound and Digital Input Detection
  • Alarm Response: FTP, Email Notification, Activate External Output, Trigger PTZ, Local Save/Record and more
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122 °F)
  • Weatherproof IP67 and IK10 High Impact, Vandal Resistant
  • ONVIF, TCP, UDP, HTTP, HTTPS, PPPoE, RTP, RTSP, DDNS, NTP, ICMP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P
  • Dimensions (Φ x H): 153mm x 116mm (6" x 4.6")
  • Weight: 1263 grams (2.78 lbs)
  • Power Source / Consumption: PoE Class 3 (IEEE 802.3af) / 12.95 Watts (built-in heater and fan on)
  • 12VDC / 10.36 Watts (built-in heater and fan on)
  • Countless Optional Mounting Configurations, Call our Experts for Assistance


Versatile Full HD 1080P IP Surveillance:
ACTi B95 Mini PTZ IP Cameras provide a fully professional security camera that also features complete pan/tilt/zoom operation and all in a totally rugged, compact case. A 2 Megapixel HD CMOS Image Sensor couples with True Day/Night operation and ACTi's Superior Low Light Sensitivity (SLLS) for superior performance in low lux environments. Additionally the Basic WDR (Wide Dynamic Range) and DNR (Digital Noise Reduction) functions as well as a variety of customizable image settings ensure optimized performance in all sorts of challenging lighting. Video Compression is achieved with dual streaming abilities and either H.264 or MJPEG compression. Supporting Real-time 30fps in Full 1080p High Definition users can also take advantage of sub streams with other resolution settings for special application requirements. Furthermore complete integration capabilities ranging from the popular ONVIF compliance to RTSP streaming and many more guarantee a flexible IP security Camera.


Smart Security, Intelligent Pan/Tilt/Zoom:
The ACTi B95 Mini IP PTZ Camera delivers powerful Pan/Tilt/Zoom operation with a full range of motion and professional PTZ functions. Outfitted with a 10x Optical (4.9mm-49mm) DC Iris, Auto Focus Zoom Lens these units Support 350 degrees Pan and 180 Degrees Tilt (with Auto Flip) for comprehensive area coverage. High Speed Movement, Precision Accuracy, Preset Positions and Guard Tours are all on-board to other perks like multiple PTZ protocols such as Pelco D. Intelligence goes further than that, First there is Detection Methods like Motion or Sound which can then activate actions like email notification, local recording or PTZ presets. On-board recording from MicroSDHC or MicroSDXC to FTP are simply further examples of the products diversity. Obviously with Sound Detection the units can support Audio, Two Way Audio in fact with external microphone and speaker line inputs to be precise. Meanwhile even more can be achieved as these PTZ Security Cameras also offer an Alarm I/O terminal block for other external devices that further provide smart software functions. Simply stated, there is plenty to talk about with the B95, but it doesn't take much to see how capable it is.


Adaptive Design, Rugged Construction:
ACTi B95 Mini PTZ Security Cameras are constructed in a traditional style vandal proof dome casing. They maintain the same size and characteristics as full featured Vandal Domes, yet offer the clear benefit of Pan/Tilt/Zoom. Due to their low profile design and ultimately their weatherproof IP67 and high impact IK10 ratings these IP PTZs are suitable for discreet surveillance system needs almost anywhere. Additionally there is an assortment of mounting accessories offered, enabling all sorts of custom mounting styles like Pendant, Flush (recessed) or Wall mounts. Another beneficial factor is the units allow standard PoE (Power over Ethernet) as a power source or alternatively a 12VDC power input assures easy security system adaptation. Installation is easy with a fully capable web interface to Free Software Utilities, FREE ACTi NVR Software plus more for maximum customer satisfaction.

TONS OF OPTIONAL MOUNTING ACCESSORIES:

acti-ptz-wall-mount-with-junction-box-smax-0089.jpg flushmount.jpg
pmax-0308-l-type-wall-bracket.jpg vertical-pipe-mount-junction-box-pendant-tube-and-adapter-kit-dome-smax-0206.jpg
smax-0063-goose-neck-wall-mount-bracket.jpg npt-dome-ptz-mount-adapter-smax-0152.jpg smax-0015.jpg
