OEM D 16ch+ 16x 4K IR + White Light Cams CCTV AI Camera System ODX16-OD16FC

OEM D series ODX16-OD16FC 16ch A.I. HD CCTV Camera System delivers cutting edge performance, feature rich hardware and software capabilities with the simplified install methods of traditional CCTV. Providing maximum performance for price ratio, this complete security camera system offers a high quality, professional grade system with added AI intelligence. Utilizing a Hybrid Digital Video Recorder (DVR or aka XVR) the system can support the combined use of Analog CCTV, HD CCTV and IP Cameras in a single recording system. Additionally, this Hybrid DVR boast up to 32ch support with its added 16 IP camera channels available for future expansion. It also grants users a rich CMS Software for PC and MAC as well as effective Mobile Apps for Android or Apple devices enabling convenient full function remote monitoring and management. Including all the necessary parts for a working solution, the package promises pro-grade video surveillance that is smart, versatile, powerful and yet affordable.

Supplied with Sixteen 4K (8 Megapixel) Smart Illumination IR & White Light LED HD CCTV Security Cameras of the bullet and/or turret style, these cameras easily adapt to project and customer demands. Their excellent imaging performance is not only based on resolution but enhanced image processing like Wide Dynamic Range and 3D Digital Noise Reduction ensuring optimal video clarity even in adverse lighting conditions. The innovative Dual Illumination attribute features three modes of operation including Smart IR mode, White Light mode or Intelligent Smart IR to White Light Mode via AI intrusion detections from the XVR (DVR). Equipped with Fixed 2.8mm lens these security cameras deliver a wide area coverage hassle free. Constructed to IP67 weatherproof standards these cams perform through harsh weather in outdoor conditions while are compact enough for indoor needs as well.

OEM D series ODX16-OD16FC 16 channel A.I. HD CCTV Camera System packaged by A2Z Security Cameras' Experts includes all the major parts for a working surveillance system solution. Systems can include a mix of camera styles as referenced below at no cost change to best adapt to your project needs. Otherwise almost endless customizations, optional accessories and other changes are available with the help of our Security Experts. Contact us today for assistance.

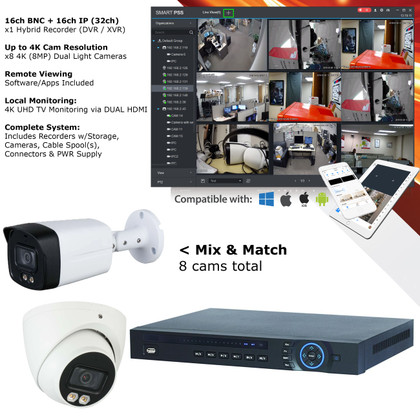

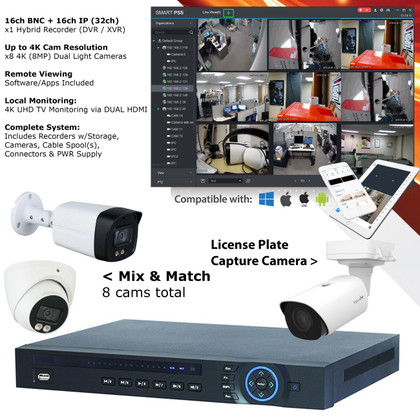

Includes:

(1x) OEM-D HD CCTV 4K 16ch+ XVR / DVR w/8TB Storage
(16x) OEM-D 8MP Smart Illumination HD CCTV cameras: Choose from the below models
- AZD-DCC8TD-DI-A 8MP / 4K Smart Dual Light White Light + IR Turret Fixed 2.8mm
- AZD-DCC8FB-DI-A 8MP / 4K Smart Dual Light White Light + IR Bullet Fixed 2.8mm
(1) 16ch+ CCTV POWER Supply Units
(3) 500ft Spool Siamese RG59 75ohm 95% Copper Braid Coax + 18/2 PWR Cable
(1) Pack of Twist on BNC Connectors

Countless optional system customizations are available with the assistance of our Experts Pre & Post Sale!

Main Features:

- Pentabrid (5-in-1) DVR / XVR Operation
- 16ch Including a mix selection of BNC HD CCTV Channels, CVBS (Analog) and IP Camera channels + 16ch IP Camera Channels (Total 32ch BNC + IP)
- HD CCTV Camera Recording up to 8MP(4K) 7fps; 6MP @ 10fps; 5MP @ 12fps; 8MP (4K-N), 4MP (2K), 3MP @ 15fps; 4MP-N, 2MP/1080p > @ 30fps
- Supports 16ch HD CCTV A.I. Encoding for intelligent detection such as Human/Vehicle Classification (SMD) Plus Perimeter Function, Face Detection and Recognition Functions
- Supports H.265, H.264 & MJPEG Codec
- Supports 128Mbps IP Camera Recording
- Supports Free Mobile Apps (android/apple), Free CMS PC/MAC Software & Intuitive Web Client
- Supports Audio I/O: 1ch RCA Audio Input, 16ch BNC (via Cam Coaxial Audio) Input, 1ch RCA Output, 1ch BNC Two Way Talk output
- Supports HDMI and VGA HD video output
- Supports up to 1 SATA HDDs, up to 16TB size each HDD for large storage capacity
- Supports Over Coax or Up the Coax (UTC) communication
- P2P (QR Code) easy connectivity to viewing/monitoring applications
- 4K (8MP) & 15fps Ultra HD Video Cameras with Smart IR + White Light LED Illumination Modes
- All Indoor/Outdoor ready Security Cameras
- Complete System with all the primary parts for a functioning solution that is easy to install

Last Updated October 2023
