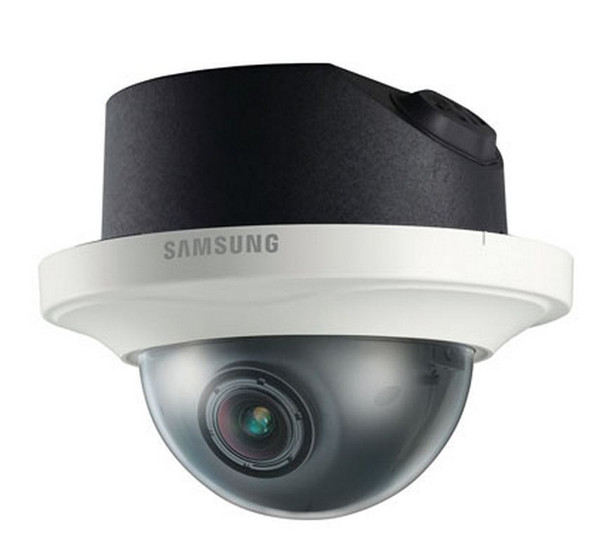

Samsung SND-7082 3-MP IP HD Megapixel Dome Security Camera

  • Samsung SND-7082
  • Samsung SND-7082
  • Samsung SND-7082
  • Samsung SND-7082
  • Samsung SND-7082
Price:
$659.00
SKU:
SND-7082
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Samsung SND-7082 IP HD Megapixel Dome Security Camera is a Full HD 3-MP with true WDR Day/Night ICR feature. This IP dome camera supports 2048 x 1536 at a maximum of 3-MP at 20 frames per second and 2-MP 16:9 (1080p) 1920 x 1080 at 30 frames per second for full high definition resolution. One of the advanced features that the camera has is its Advanced Wide Dynamic Range (96dB) to provide superior images in areas where there are challenging lighting conditions as well as 30fps at 2MP WDR. The additional security features are Audio Detection and Face Detection which lets the camera stay in focus with a certain point where there is a visible mark of human face. Together, it works with the camera�s ROI function which confines also its focus with a certain region. Audio detection on the other hand lets the camera change its focus on a certain point that is not covered by the camera but is a source of sounds of interest. The Samsung SND-7082 is only a small dome style device that weighs a total of 635 grams. In comes with a body made up of plastic in an ivory color.



Samsung SND-7082(F)Main Features:



  • Max 3M (2048 x 1536), 16 : 9 Full HD (1080p) resolution
  • H.264 & MJPEG dual codec
  • 3 ~ 8.5mm (2.8x) motorized varifocal lens • Simple Focus
  • Advanced WDR (96dB) / 30fps@2MP WDR
  • Face Detection, Audio Detection
  • UPnP (Auto Port Forwarding)



Samsung SND-7082(F) Specifications:



  • VIDEO
  • Imaging Device 1/3" 3.1M PS CMOS
  • Total Pixels 2,064 (H) x 1,578 (V)
  • Effective Pixels 2,052 (H) x 1,536 (V)
  • Scanning System Progressive
  • Min. Illumination Color : 0.7 Lux (F1.2, 50IRE), 0.011 Lux (Sens up 60X) B/W : 0.07 Lux (F1.2, 50IRE), 0.001 Lux (Sens up 60X)
  • S / N Ratio 50dB
  • Video Out CVBS : 1.0 Vp-p / 75O composite, 704 x 480(N), 704 x 576(P), for installation
  • LENS
  • Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
  • Max. Aperture Ratio F1.2
  • Angular Field of View H : 87.3 (Wide) ~ 31.2 (Tele), V : 64.5 (Wide) ~ 23.4 (Tele)
  • Min. Object Distance 0.5m (1.64ft)
  • Focus Cotrol Manual, Simple focus, Day&Night
  • Lens Type DC Auto Iris
  • Mount Type Board-in type
  • PAN / TILT / ROTATE
  • Pan Range 0 ~ 355
  • Tilt Range 0 ~ 90
  • Rotate Range 0 ~ 355
  • OPERATIONAL
  • Camera Title Off / On (Displayed up to 15 characters)
  • Day & Night Auto (ICR) / Color / B/W / External
  • Backlight Compensation Off / BLC / HLC
  • Wide Dynamic Range Off / On (96dB) 3M Mode : 20fps, 2M Mode : 30fps
  • Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
  • Digital Noise Reduction SSNRIII (2D+3D Noise Filter) (Off / On)
  • Motion Detection Off / On (4 Rectangular zones)
  • Privacy Masking Off / On (1ea 4 Point Polygonal + 16ea Rectangular zones)
  • Sens-up (Frame Integration) Off / Auto (2x~60x)
  • Gain Control Off / Low / Midium / High
  • White Balance ATW / AWC / Manual / Indoor / Outdoor
  • Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 1/12,000sec)
  • Flip / Mirror Off / On
  • Intelligent Video Analytics Audio detection, Face detection, Scene change, Virtual line, Enter / Exit, Appear / Disappear
  • Alarm I/O Digital 1/1
  • Alarm Triggers Motion detection, Video analytics, Sensor input
  • Alarm events File upload via FTP, E-Mail / Notification via E-Mail, TCP / local storage (SD/SDHC) recording at Network disconnected
  • External output
  • NETWORK
  • Ethernet RJ-45 (10/100BASE-T)
  • Video Compression Format H.264 (MPEG-4 Part 10/AVC), MJPEG
  • Resolution
  • 3M Mode - 2048 x 1536 / 1920 x 1080 / 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 720 / 1024 x 768
  • 800 x 600 / 800 x 450 / 640 x 480 / 640 x 360 / 320 x 240 / 320 x 180
  • 2M Mode - 1920 x 1080 / 1280 x 1024 / 1280 x 960 / 1280 x 720 / 1024 x 768 / 800 x 600 / 800 x 450
  • 640 x 480 / 640 x 360 / 320 x 240 / 320 x 180
  • Max. Framerate
  • 3M Mode - H.264 : Max 20fps at all resolutions MJPEG : 800 x 600 ~ 320 x 180 - 20 fps
  • 1024 x 768 ~ 1920 x 1080 - 15 fps / 2048 x 1536 - 10 fps
  • 2M Mode - H.264 : Max 30fps at all resolutions MJPEG : 800x600~320x180 - 30 fps
  • 1024 x 768 ~ 1920 x 1080 : 15 fps
  • Smart Codec Yes (Area based method)
  • Video Quality Adjustment H.264 : Compression level, Target bitrate level control / MJPEG : Quality level control
  • Bitrate Control Method H.264 : CBR or VBR / MJPEG : VBR
  • Streaming Capability Multiple streaming (Up to 6 profiles)
  • Audio I/O Mic/Line in , Line out
  • Audio Compression Format G.711 u-law, G.726 (16Kbps, 24Kbps, 32Kbps, 40Kbps)
  • Audio Communication Bi-directional
  • IP IPv4, IPv6
  • Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP,
  • IGMP, SNMPv1/ v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP
  • Security HTTPS (SSL) login authentication, Digest login authentication, IP address filtering,
  • User access log, 802.1X authentication
  • Streaming Method Unicast / Multicast
  • Max. User Access 10 users at unicast mode
  • Memory Slot SD / SDHC memory slot
  • ONVIF Conformance Yes
  • Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish,
  • Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
  • Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7 or higher
  • Supported Browser : Internet explorer 7.0 or higher, Firefox 9.0 or higher, Chrome 15.0 or higher, Safari 5.1 or higher
  • Central Management Software NET-i viewer
  • ENVIRONMENTAL
  • Operating Temperature / Humidity -10C ~ +55C (+14F ~ +131F) / 20% ~ 80% RH
  • ELECTRICAL
  • Input Voltage / Current DC 12V, PoE (IEEE802.3af)
  • Power Consumption Max. 9.0W (DC 12V, PoE (class3)
  • MECHANICAL
  • Color / Material Body : Ivory / Plastic
  • Dimension (WxH) SND-7082 : Ø133 x 129.4 mm (5.24" x 5.09")/ SND-7082F : 159.9 x 125 mm (Ø6.3" x 4.92") (Flush mounting type)
  • Weight SND-7082 : 635g (1.41lb) / SND-7082F : 700g (1.54lb)
