Everfocus EMV1200 12 channel Mobile DVR system 120fps D1

  • Everfocus EMV1200 12ch Mobile DVR system
  • Everfocus EMV1200 12ch Mobile DVR Front Panel
  • Everfocus EMV1200 12ch Mobile DVR Rear Panel

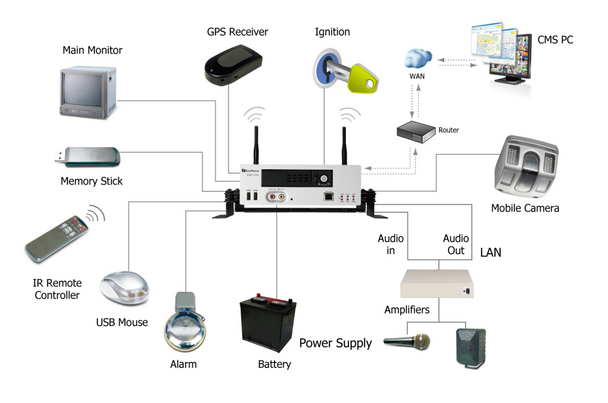

  • Everfocus EMV1200 12ch Mobile DVR Diagram
  • Everfocus EMV1200 12ch Mobile DVR Specifications

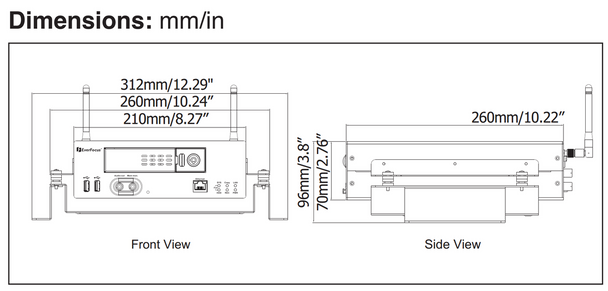

  • Everfocus EMV1200 12ch Mobile DVR Size
Contact us for Pricing

Product Description

Everfocus EMV1200 12 channel Mobile DVR system is a cutting-edge Digital Video Recorder for all types of transit, transportation or vehicle CCTV surveillance systems. The rugged Linux Embedded Mobile DVR supports H.264 codec and enables up to 120fps video recording at D1 high resolution. The Everfocus EM1200 is a comprehensive solution for mobile security camera systems and surveillance offers superior hardware and software benefits. The compact unit serves maximum reliability, capacity and feature set.

The compact 12ch DVR includes complete hardware interface for 12 channel Audio input and Two Way Audio support. Furthermore I/O communications and RS-485 PTZ Camera function including PTZ joystick support enable sophisticated CCTV security system designs of all types. The Mobile DVR system includes an optimized GUI for effective mobile operation even with lower resolution screens plus support for main and spot monitor outputs. Also provided is operation from the front panel controls, USB mouse or IR remote control. From Molex connectors to rugged mobile mount for anti-shock and anti-vibration design the Everfocus EMV1200 Digital Video Recorder is certainly built solid.

From intelligent local viewing to advanced remote monitoring the Everfocus EMV1200 12 channel Mobile DVR has you covered. Smart Phone and Tablets are supported as well as remote viewing with applications like CMS or Client Software. The innovative solution includes embedded and configurable G-sensor, add-on GPS including real-time mapping and EMV1200W offers Wireless options like WiFi. Flexible voltage input allows 12VDC-36VDC power input and the Everfocus offers professional video surveillance software abilities for all types of mobile surveillance in cars, trucks, trains, boats or aircraft.

Everfocus EMV1200 Main Features:

  • Rugged Linux Embedded Mobile DVR (Anti-Vibration/Shock)
  • 12 Channel Video Inputs (Locking Molex connection)
  • D1/4CIF Resolution at 120fps to CIF at Real-time 480fps
  • H.264 Compression w/Dual Streams for optimized file size and network transmission
  • 12 Channel Audio input and 1 Audio output
  • Supports Removable Hot Swap Hard Drive Bay (1TB max size)
  • Optional Wireless WIFI MODEL: EMV1200W
  • Intelligent DVR Software for professional local and remote video management
  • 10 User Security Profile Levels with specific rules
  • Local Operation with Front Panel, IR Remote or DVR Keyboard Joystick or USB Mouse
  • BNC or RCA Main Monitor and Call Monitor
  • Free Mobile viewing with Everfocus MobileFocus Application: Supports iPhone, Android and Blackberry
  • FREE DDNS Service Hosted by Everfocus for simple Remote Access without Static IP
  • Advanced Detection, Event Triggers and Event Notifications to Digital Zoom on Live Video or Playback
  • Optional GPS sensor supports Tracking including speed and geographical rules
  • Includes Specialized Mounting Bracket with Anti-Vibration and Anti-Shock Design
  • Features Anti-Vibration resistant Molex Locking Cabling Connections
  • Embedded 3-axis G Sensor: data recorded and alarm (user configurable)
  • Optional External EDGE/GPRS/DCMA/WiFi modules for cellular and other wireless transmission
  • Extended Operating Temperature (F | C) -40°F~131°F | -40°C~55°C
  • Power Source 10VDC-32VDC input


EMV1200/500: 12 Channel Mobile DVR with 500 GB
EMV1200W/500: 12 Channel Wi-Fi Mobile DVR with 500 GB
