Dahua OEM IPC-EBW81200 12MP Vandal IR Fisheye IP Camera

  • Dahua OEM IPC-EBW81200 12MP Vandal IR Fisheye IP Camera
  • Dahua IPC-EBW81200 12MP Fisheye IP Camera Multi-view sample
  • Dahua IPC-EBW81200 Fisheye IP Camera Multi-view sample 2

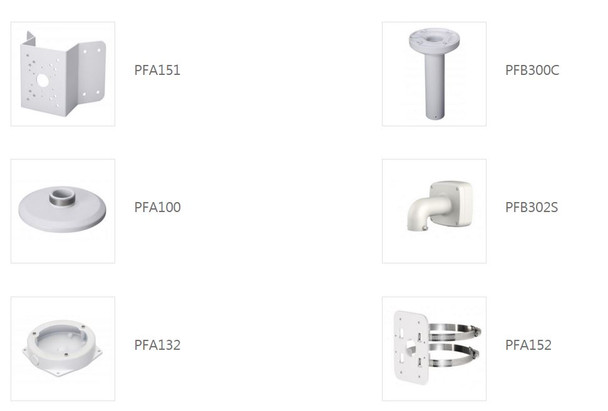

  • Dahua IPC-EBW81200 12MP Fisheye Optional Accessories
  • Dahua IPC-EBW81200 12MP Fisheye Camera Dimensions
Calculated at checkout

Product Description

Dahua OEM IPC-EBW81200 12MP Vandal IR Fisheye IP Camera is an outstanding new single sensor, Panoramic IP surveillance solution packed with best in class features. The device is built on a new 1/2.3" 12 megapixel CMOS Sensor that delivers not only high frame rate 15fps real-motion in full 12MP, 8MP or 6MP modes but likewise offers Real-time in 3MP or below resolutions. H.264 and MJPEG codecs plus dual streaming provide flexible video management. Meanwhile enhanced imaging like Digital WDR and 3D Noise Reduction plus true day/night operation and IR LED Illumination promise a round the clock security solution. The unit is well designed in every aspect from its internal functionality to external construction and added perks. Benefits in every including a rugged weatherproof and vandal proof casing, flexible power input to Audio, I/O alarm and SD Card Slot are all present. The new 12MP fisheye IP Camera further gives you a well-developed web browser interface for all-in-one Surveillance System operations while mobile viewing applications to free CMS and VMS software for PC or MAC are also included. Overall, this camera supports third party integration via ONVIF and is a top choice for any professional security system fisheye requirement.

Dahua OEM IPC-EBW81200 Fisheye Main Features:

  • 1/2.3” 12MP progressive scan CMOS Image Sensor
  • 12MP (4000x3000), 8MP or 6MP at 15fps Real-motion, 3MP, 1080P or below 30fps
  • H.264 or MJPEG codec with dual-streaming
  • Digital WDR, Day/Night (ICR), 3D Noise Reduction, ROI, AWB, AGC, BLC
  • Panoramic IR LED Illumination enables night vision to about 30 feet or 10 meters
  • Fisheye 185° Lens provides panoramic coverage horizontally, vertically and diagonally
  • Built-in De-wrap Mode: Original, Panoramic, Double Panoramic, 1+3, Digital ptz, 4
  • Network IT Protocol Support like: ARP, RTSP, SMTP, FTP, PPPOE, IPv4/IPv6, SNMP, QoS, UPnP and more
  • ONVIF Compliant for 3rd Party integration
  • Full Function Web Interface plus PC or MAC supported VMS and CMS Software (DSS/SmartPSS)
  • DMSS Dahua Mobile Viewing Applications are also available for Windows, iPhone, iPad and Android devices
  • Two Way Audio 1/1 Input/Output (Plus Built in-Microphone)
  • Alarm I/O Interface 2/1 Input/Output
  • Micro SD Card Slot for Local Recording
  • IP67 Weatherproof Rated for Very Harsh Environments
  • IK10 Vandal Proof Rated for High Impact plus Tamper Resistance
  • Flexible Power Input: 12VDC or PoE (802.3at)
  • Temperature Range: -22 °F to 140 °F or -30°C to +60°C
  • Dimensions Φ5.9" x 1.99" or Φ150mm x 50.7mm
  • Weight: 1.27lbs. Or 0.58kg (1.89lbs. or 0.86kg with packaging)


Super Ultra HD 12 Megapixel and Panoramic Viewing:
The Dahua OEM IPC-EBW81200 12MP Vandal IR Fisheye IP Camera sets the standards for a new level in single sensor, low profile, full featured outdoor ready Fisheye IP Cameras. The unit is outfitted with the latest 12 Megapixel CMOS Sensor and couples true day/night operation with a wide area IR LED array for strict IP Surveillance in any lighting. The device has in-depth adjustable camera image settings plus imaging advances like DWDR or 3DNR. Multiple Codec selection and Dual Streaming enable versatile bandwidth and storage management with Main stream at any resolution and sub stream up to D1. In addition to ONVIF integration numerous other compatibilities like PSIA, CGI or RSTP enable 3rd party systems to take advantage of this Fisheye Camera's stunning 12MP Ultra HD and panoramic coverage. Multiple De-warping Modes for Panoramic Views to Quad Region of Interest (ROI) screen divisions with Digital PTZ are all built-in.

Superb Features and Solid Construction:
This next generation 12 megapixel Fisheye IP Camera packs a rich set of the most desired attributes for any Panoramic Surveillance or Security System project. Full operations of live viewing, search, playback, export of local recording and of course camera configuration is all achievable via the web interface alone. This Fisheye Security Camera further provides Event Detection, Notification, Privacy Masking, to Two Way Audio, Alarm I/O, SD Card recording and all other features in an intelligent combination for many sophisticated deployments. The units provides likewise all the mobile viewing and remote monitoring needs with applications for Windows Phone, Android, iPhone and iPad. Additionally the Free SmartPSS CMS Software or DSS NVR Software can be run on MAC or PC computers. Take in account the Rugged IK10 High Impact rating, Vandal Proof and Weatherproof IP67 casing plus optional mounting brackets to 12VDC or standard PoE power input and this Fisheye is clearly prepared for nearly any security installation.
