Bosch FlexiDome NDN-832V03-P 1080P HD Rugged IP Dome Camera

  • Bosch FlexiDome NDN-832V03-P 1080P HD Vandal IP Dome Camera
  • Bosch FlexiDome NDN-832V03-P Key Features:
  • Bosch FlexiDome NDN-832V03-P dimensions
  • Bosch FlexiDome NDN-832V03-P Pan adjustment
  • Bosch FlexiDome NDN-832V03-P Tilt adjustment
  • Bosch FlexiDome NDN-832V03-P Twist adjustment

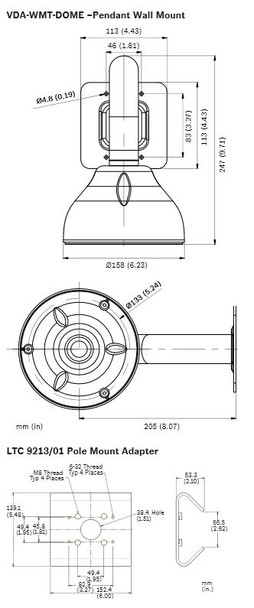

  • Bosch FlexiDome NDN-832V03-P Mounting Options

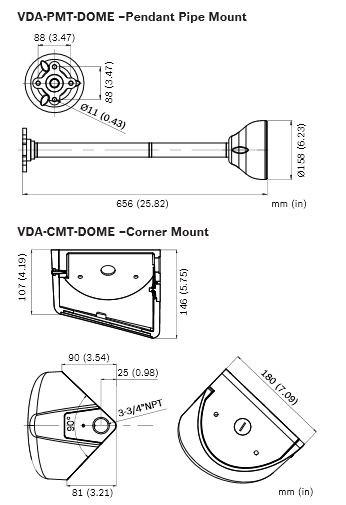

  • Bosch FlexiDome NDN-832V03-P Mounting Options 2
Price:
$1,027.00
SKU:
NDN-832V03-P
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Bosch FlexiDome NDN-832V03-P 1080P HD Vandal IP Dome Cameras are an innovative line of next generation and intelligent dome style network IP cameras. The Bosch FlexiDome NDN-832V Series deliver real-time 30fps high definition IP Surveillance with advanced H.264 and MJPEG multi-streaming. The units also provide true day/night operation with mechanical IR Cut-filter and feature Digital WDR (Wide Dynamic Range) for superior performance in challenging lighting. The Bosch FlexiDome HD Ruggedized IP Dome Cameras also include a wide range of lens options for ultra wide viewing without de-warping software, standard and telephoto applications. Available FlexiDome lens options (excluding models with IVA, HDR, etc.) include the NDN-832V02-P 1.8-3mm ultra wide angle lens, the NDN-832V03-P for 3.8-13mm Varifocal and NDN-832V09-P 9-40mm Varifocal Telephoto Lens choice.
The Bosch FlexiDome NDN-832V03-P Rugged HD IP Dome Camera includes (IVA) Bosch Motion+ for edge based motion detection and hardware enhanced versions with more advanced IVA Intelligent Video Analytics are available. The FlexiDome unit also has a built-in memory card slot for on-board high capacity recording. Other features including support for Audio, Relay and Alarm inputs are included. Numerous camera settings, functions and other attributes like service monitor output benefit installers. The Bosch FlexiDome is also flexible on power sources allowing 24VAC, 12VDC and PoE (power over Ethernet) system integration. ONVIF compliance is just another highlight which enables all sorts of third party IP Camera Systems to take advantage of the superior FlexiDome Ruggedized HD Dome Cameras.

Bosch FlexiDome NDN-832V03-P Main Features:

  • 1080P HD (High Definition) IP Video Surveillance
  • Real-time 30fps Multi-codec streaming of H.264 and MJPEG
  • True Day/Night with SensUP and Intelligent Dynamic Noise Reduction (iDNR)
  • Innovative C-BIT (Content-Based Image Technology)
  • IVA Motion+ Detection (full IVA model optional)
  • 1.8-3mm, 3.8-13mm or 9-40mm Varifocal Lens Options
  • Automatic motorized back focus with pixel mapping
  • Ruggedized Vandal Proof High Impact IK10 Tamper Resistant design.
  • Weatherproof IP66 Outdoor Ready.
  • Variety of Mounting options and accessories.
  • On-Board Memory Card Slot for local Recording.
  • ONVIF Compliant for integration with third party IP Camera Systems.
  • Flexible power input with 12VDC, 24VAC or PoE (power over Ethernet) support.


Bosch FlexiDome NDN-832V03-P Technical specifications

Electrical
Power Supply
24 VAC ±10% 50/60 Hz
12 VDC ±10%
Power-over-Ethernet 48 VDC nominal
Current Consumption
1 A (12 VDC)
0.8 A (24 VAC)
0.3 A (PoE 48 VDC)
Power Consumption
12 W
Sensor
Type
1/3-inch CMOS HD
Active Pixels
1920 x 1080
Video
Video compression
H.264 (ISO/IEC 14496-10); M- JPEG,
JPEG
Streaming
Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth.
Resolutions (H x V)
- 1080p HD
1920 x 1080
- 720p HD
1280 x 720
- 480p SD
Encoding: 704 x 480;
Displayed: 854 x 480
- 432p SD
768 x 432
- 288p SD
512 x 288
- 240p SD
Encoding: 352 x 240;
Displayed: 432 x 240
- 144p SD
256 x 144
- corridor mode
400 x 720
- D1 4:3 cropped
704 x 480
Overall IP Delay
Min. 120 ms, Max. 240 ms
GOP structure
IP, IBP, IBBP
Sensitivity
(3200 K, scene reflectivity 89%, F1.2)
Minimum illumination (30 IRE)
Color
0.25 lx (0.025 fc)
Monochrome
0.08 lx (0.008 fc)
Day/Night
Color, Monochrome, Auto
White Balance
ATW (2500 to 10000K), ATW hold and manual
Indoor and Outdoor ATW
Shutter
Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/150000)
selectable
Default shutter
Backlight compensation
Off/Auto/IntelligentAE
Wide dynamic range
On/off
Noise reduction
Intelligent Dynamic Noise Reduction
(iDNR) with separate temporal and spatial adjustments
Contrast enhancement
On/off
Sharpness
Sharpness enhancement level selectable
Dynamic Range
90 dB typical
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Intelligent Video Analysis
Audio
Standard
AAC
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex / half duplex
Input/output
Audio
1 x mono line in, 1 x mono line out
• signal line in
12 kOhm typical, 1 Vrms max
• signal line out
1 Vrms at 1.5 kOhm typical,
Alarm
2 inputs
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-
up resistor)
Relay
1 output
• voltage
30 VAC or +40 VDC max.
Maximum 0.5 A continuous, 10VA
Local Storage
Memory card slot
Supports SDHC and SDXC MicroSD cards
Recording
Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remote programmable
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB-II),802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/full duplex, RJ45
PoE supply
IEEE 802.3at compliant
Connectivity
ONVIF Profile S
Auto-MDIX
Optical
Lens
Varifocal SR (Super Resolution)
Focus control
Automatic focus adjustment
Iris control
Automatic iris control
Viewing angle
1.8 to 3 mm
Wide 98 x 67º (H x V)
Tele 70º x 43º (H x V)
3.8 to 13 mm
Wide: 63º x 36º (H x V)
Tele: 19º x 11.1º (H x V )
9 to 40 mm
Wide: 26º x 15º (H x V)
Tele: 6.1º x 3.1º (H x V )
Mechanical
Dimensions (D x H)
208 x 151 mm (8.2 x 5.95 in)
Weight
2200 g (4.85 lb.)
Color
RAL 9007 Metallic Titanium
Environmental
Operating Temperature
-50°C to +50°C (-58°F to 122°F)
Cold Start Temperature
-20°C (-4°F)
Storage Temperature
-30°C to +70°C (-22°F to +158°F)
Operating Humidity
20% to 100% RH
Storage Humidity
up to 100% RH
Vandal Resistance
IK10
Ingress Resistance
IP 66, NEMA-4X


Ordering information

Ordering Info non-IVA models.

HD Dome 1080p 1/2.7-inch CMOS, IP Dome Camera, 1080p HD, Motion+, 1.8 -- 3 mm lens
Commercial Type No: NDN-832V02-P

HD Dome 1080p 1/2.7-inch CMOS, IP Dome Camera, 1080p HD, Motion+, 3.8 -- 13 mm lens
Commercial Type No: NDN-832V03-P

HD Dome 1080p 1/2.7-inch CMOS, IP Dome Camera, 1080p HD, Motion+, 9 -- 40 mm lens
Commercial Type No: NDN-832V09-P


LTC 9213/01 Pole Mount Adapter
Pole mount adapter with stainless steel straps, light
gray finish
Order number
LTC 9213/01
S1460 Service/Monitor Cable
2.5 mm connector to BNC for analog and IP cameras,
1 m
Order number
S1460
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license
is required only once per installation. It enables
encrypted communication between BVIP devices and
management stations.
Order number
MVS-FENC-AES
VJT-XTCXF
Videojet XTC XF, H.264 video transcoder
Order number
VJT-XTCXF
Accessories
VDA-832FHD-WMT
Wall mount bracket for HD FlexiDomes
Order number
VDA-832FHD-WMT
VDA-832FHD-PMT
Pendant pipe mount bracket for HD FlexiDomes
Order number
VDA-832FHD-PMT
