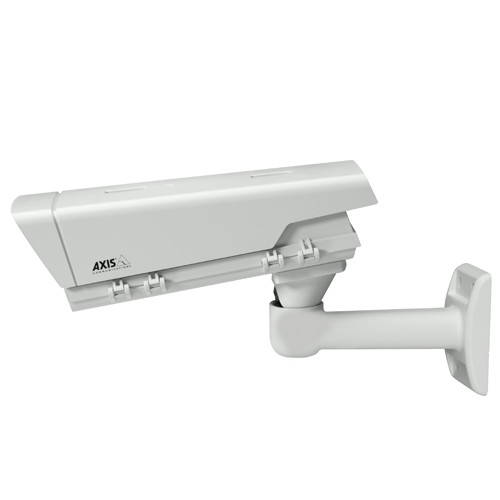

Axis M1113-E Outdoor Network IP Security Camera

Axis M1113-E Outdoor Network IP Security Cameras are a weatherproof version of the Axis M11 Series Network Camera line. The Axis M1113-E IP Security Camera is a high frame rate, high resolution SVGA (800 x 600) IP camera with built in varifocal Auto Iris Lens. The Axis M1113-4 also provides dual streaming of Motion JPEG and H.264 compression with individual configuration for each stream. The unit also offers in depth image settings and on board intelligent video motion detection. The intelligent video feature of the Axis M1113-E outdoor IP camera allows the camera to trigger functions based on motion detection such as network based storage of events or email notification. The Axis M1113-E further uses single cable installation with PoE (Power Over Ethernet) support. The Axis M1113-E version most notably offers an outdoor, weatherproof IP66 camera housing and wall mount. The Axis M1113-E security camera is designed as a cost effective, all in one, outdoor ready solution for professional security camera systems and IP Surveillance.

Axis M1113-E Main Features:

AXIS M1113-E: varifocal, DC-iris lens: SVGA resolution

• Image sensor Progressive scan RGB CMOS 1/4”
• DC-iris, CS mount: Varifocal 2.9 - 8.2 mm: 65° - 25° view*, F1.4 *horizontal angle of view
• Light sensitivity/Min. Illumination: 0.6 lux, F1.4
• Shutter time 1/24 500 s to 1/6 s
• Video
• Video compression H.264 (MPEG-4 Part 10/AVC), Motion JPEG
• Resolutions: 800x600 to 160x90
• Frame rate H.264 and Motion JPEG in 30 fps in all resolutions
• Video streaming Multiple, individually configurable streams in H.264 and Motion JPEG
• Controllable frame rate and bandwidth VBR/CBR H.264
• Pan/Tilt/Zoom Digital PTZ, preset positions, guard tour
• Image settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, mirroring of images, Rotation – including Corridor Format, Text and image overlay, privacy mask
• Network
• Security Password protection, IP address filtering, HTTPS** encryption, digest authentication, user access log
• Supported protocols
• IPv4/v6, HTTP, HTTPS**, QoS Layer 3 DiffServ, FTP, SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
• System integration Application Programming Interface
• Open API for software integration, including VAPIX® from Axis Communications, specifications available at www.axis.com AXIS Video Hosting System (AVHS) with One-Click Camera connection
• Intelligent video Video motion detection, active tampering alarm
• Event triggers: Intelligent video
• Event actions File upload: FTP, HTTP, network share and email
• Notification: email, HTTP and TCP
• Pre- and post-alarm video buffering
• Data Streaming Event data
• Installation aids in software
• Pixel counter
• General
• Casing Camera: Aluminum and plastic
• Housing: IP66-rated acrylate weatherproof enclosure
• Color: white NCS S 1002-B
• Processor and memory: 128 MB RAM, 128 MB Flash
• Power: PoE Power over Ethernet IEEE 802.3af Class 1
• Connectors: RJ-45 10BASE-T/100BASE-TX PoE
• Edge storage Support for recording to network share (Network Attached Storage or file server)
• Operating conditions: -20 °C to 50 °C (-4 °F to 122 °F)
• Humidity 15 - 100% RH (condensing)
• Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22,KCC Class A, IEC/EN 60950-22,
• IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60529 IP66, IEC 60068-2-30, IEC 60068-2-78
• Weight: 780 g (1.72 lb.)
• Included accessories
• Wall bracket, sunshield, User’s Guide, CD with installation tools, recording software and Windows decoder 1-user license, Desiccant bag
• Optional accessories
• AXIS T93E05 Protective Housing (for AXIS M11 Network Cameras)(Housing Already included)
• Mounting Accessories
• AXIS T8414 Installation Display
• AXIS P8221 Network I/O Audio Module
• AXIS Power over Ethernet products
