Geovision GV-EBX1100 Target 1.3MP IR Box IP Camera

  • Geovision GV-EBX1100 1.3 Megapixel IP Camera
  • Geovision GV-EBX1100 IP Camera Wall Mounted
  • Geovision GV-EBX1100 IP Camera Ceiling Mounted

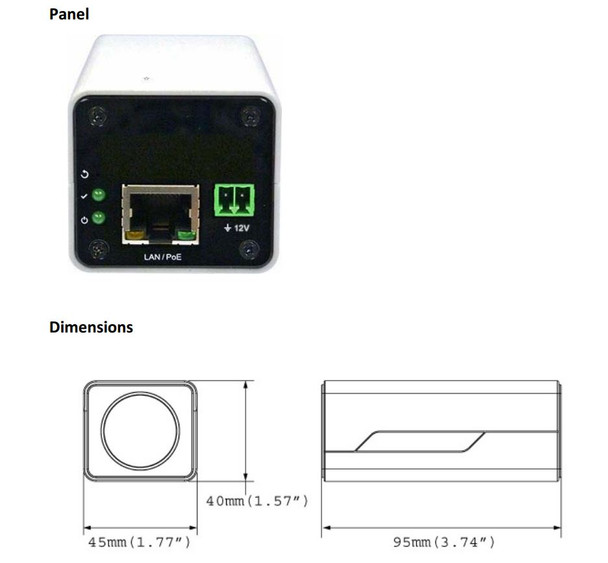

  • Geovision GV-EBX1100 Rear Camera Panel
  • Geovision GV-EBX1100 Security Camera Dimensions
  • Geovision IP Camera Built-in Motion Detection
  • Geovision IP Camera Built-in Privacy Masking
Calculated at checkout

Product Description

Geovision GV-EBX1100 Target Series 1.3 Megapixel IR Box IP Camera is a great choice for high quality indoor IP video surveillance. These units deliver the traditional Box style Security Camera design except with an integrated Lens of 3.6mm or 2.8mm wide angle coverage as well as IR Night Vision. Similar to the Ultra Box series this unit offers economic all in one construction packed with all the desirable features. Enhanced Imaging including WDR, ONVIF compliance for universal security system integration to PoE support for easy installation. Geovision GV-EBX1100 IR Box IP Camera is a superior choice, including Free Geovision GV-NVR Software it’s a perfect building block for professional IP Surveillance Systems.

Geovision GV-EBX1100 Main Features:

  • 1/3" progressive scan low lux CMOS sensor
  • Dual streaming with H.264 and MJPEG
  • Real-time 30fps at 1.3 Megapixel HD Resolution (1280 x 1024)
  • Intelligent IR Illumination to 50ft (15m)
  • Optional Megapixel Lens of 3.6mm GV-EBX1100-1F (64°H-FOV) or 2.8mm GV-EBX1100-0F (93° H-FOV)
  • True Day/Night Operation (Mechanical IR-cut filter)
  • Built-in microphone w/G.711 or AAC options
  • Wide Dynamic Range (WDR), Defog, Shutter Speed, Image Orientation, BLC, WB and other Image Enhancements
  • Advanced On-board functions like Motion detection, Tampering alarm, Text overlay, Privacy mask
  • IP address filtering, HTTPS, RTSP, QoS, FTP, ONVIF (Profile S) conformance and more
  • 12VDC Power Input or PoE (Power over Ethernet IEEE 802.3af)
  • Supports iPhone, iPad, Android & 3GPP
  • Web interface supports 31 languages
  • 95mm x 45mm x 40mm (3.7 x 1.8 x 1.6”)
  • Weight: 120g (0.26 lbs.)

TWO Optional Models:

GV-EBX1100-0F Fixed 2.8 mm F/2.0 1/2.7"
GV-EBX1100-1F Fixed 3.8 mm F/1.8 1/2.7"


High Quality Video Surveillance:
Utilizing a 1/3" progressive scan Low Lux CMOS 1.3 Megapixel Sensor, added true day/night operation and imaging features like WDR (Wide Dynamic Range) ensure crystal clear security camera footage. This 1.3 Megapixel HD resolution is roughly four times sharper than your traditional CCTV solution and the latest compression methods like H.264 and MJPEG to 16:9 format 720p HD support enable highly flexible IP video security. Added Intelligent IR LEDs provide about 50ft (15m) of infrared illumination for absolute protection regardless of the lighting conditions and intelligently counter over exposure.

Smart Design:
Despite being a cost effective IP Security Camera, the Geovision Target Series IP Cameras offer professional attributes like more than a dozen network protocols including ONVIF, RTSP, QoS, UPnP, FTP and more. The security cameras allow in-depth image configurations ranging from shutter speed to image orientation and advanced functions like Defog. Another included perk is the built-in Microphone for added audio surveillance and of course it can be activated or deactivated as projects demand. A Truly Compact Construction the cameras are attractively shaped and sized with a sleek design that offer a low profile, yet noticeable deterrence.

Complete Solution:
The Geovision GV-EBX1100 MegaPixel IR Box IP Camera is an excellent selection for indoor IP surveillance systems and along-side Geovision's GV-NVR or GV-VMS can offer an economic security camera systems at enterprise levels. The Cameras are ready to go out of the box, included is 12V or POE power input and the basic wall or ceiling mount covers practically all your install requirements. Countless other pro qualities are found in the Geovision Target series IP Cameras and though considered entry-level they are nothing less than an excellent choice for Pro Security Camera Systems.

In the Box:
Target Box Camera
Camera Bracket
Screw x 3
Screw anchor x 3
GV-IPCAM H.264 Quick Start Guide
GV-IPCAM H.264 Software DVD
GV-NVR Quick Start Guide
GV-NVR Software DVD

Last Updated March 22, 2015
