A2Z AZ56NVIR36S-L 36x WDR Laser IR Mobile PTZ Camera System

  • A2Z AZ56NVIR36S-L 36x WDR Laser Infrared Mobile PTZ Camera System

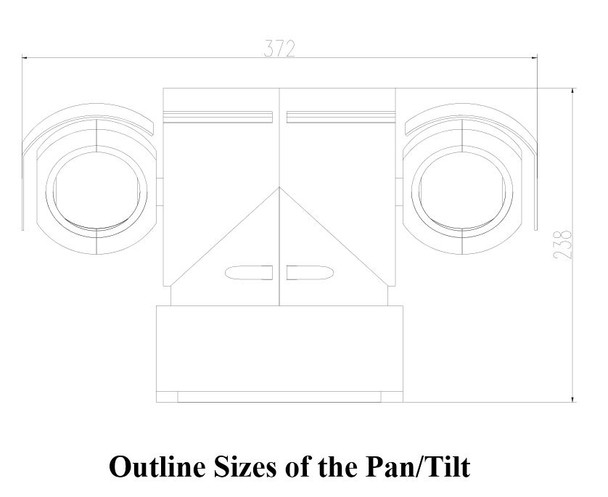

  • A2Z AZ56NVIR36S-L IR PTZ Camera Dimensions
Calculated at checkout

Product Description

A2Z Security Cameras introduces the new AZ56NVIR36S-L Laser Infrared Mobile PTZ Camera System for incredible anytime, anywhere video surveillance. The Camera unit is an advanced Dual Head Mobile Pan/Tilt/Zoom Camera System featuring the high performance Sony 36x WDR Day/Night Motorized Zoom Camera for superior image performance in all types of lighting. The Camera provides 530TVL High Resolution and OSD Display Menu with in depth camera settings help to configure camera purpose to specific operations or environments. The PTZ Camera's Laser Powered Infrared Illuminator achieves a unique night vision range up to 1200ft for incredible versatility and long range target tracking in zero light. The Camera ensures critical performance in the most adverse lighting conditions overcoming glare, high contrast light differences and other lighting challenges thanks to true WDR (Wide Dynamic Range) function.

When it comes to ruggedized solutions, the PTZ unit is weatherproof IP66 with anti-corrosion coating and die-cast aluminum construction. Built-in temperature controls extend operating range while added perks like wiper and defog satisfy needs in  even the harshest environments. In Addition to this, The PTZ camera is anti-shock ready with a supplied shock absorber for total shock-proof design. This unit is built for Mobile applications typically installed on the rooftop of vehicles like cars, trucks or suv. The unit likewise works exceptionally well in fixed security systems adding a powerful asset to any system design. More advantages are found within the cameras precision, speed and highly flexible pan/tilt mechanism. Settings like presets or cruising guard tours are all easily defined while universal multi-protocol ptz telemetry support allow integration with nearly all CCTV camera systems. If you require above standard performance, the AZ56NVIR36S-L provides a pre-built solution at a cost effective price point.

A2Z AZ56NVIR36S-L  Main Features:

  • Sony 530TVL High Resolution Camera
  • 36z Motorized Optical Zoom
  • True WDR - Wide Dynamic Range and True Day/Night
  • High Intensity Laser Beam IR (infrared) illumination w/1200Ft IR Beam Range
  • Superb performance with harsh conditions and long range targets
  • Weatherproof construction, Die cast aluminum , Anti-shock , Anti-corrosion,
  • Shock-proof Design ideal for mobile or fixed applications
  • Including Heater/Blower, sun-shields and wiper function
  • 360° panoramic continuous rotation, 180° Vertical rotation
  • Intelligent 128 Preset positions with 6 cruise tracks
  • Multi-protocol Support provides easy system integration
  • 24VAC Power input - Low Power Consumption

Specification: AZ56NVIR36S-L

Type: Sony made 36x WDR Zoom Block Camera
Pick-up Device: 1/4" Exview HAD CCD
Horizontal Resolution: High Resolution 530TVL
Scanning System: 2:1 Interlace Scanning system
Mini Illumination: 0.01 LUX
Sync. System: Internal
High Resolution Color Camera
S/N Ratio: > 50dB
Electronic Shutter: 1/4~1/10000s
Focal Length: f=3.4~122.4mm
White Balance: Auto / Manual
Lens: f=4.1~7.8mm
Zoom: Total 432X, Optical 36X, Digital 12X
Gamma: 0.45
Video Output: 1.0Vp-p (75 ohm BNC)
Focal & Iris: Auto / Manual

Pan/Tilt Mechanism Parameter:

Preset Pan Speed:
Preset Tilt Speed:
Manual Pan Speed:
Manual Tilt Speed:
Pan Range:
Tilt Range:
+88° ~ -87°
Preset Position & Cruising Track: 128 (MAX) , 6 Tracks
Multiprotocol, RS485
Power Supply:
Operating Temperature:
(-35°C ~ +55°C)
Relative Humidity:
