Samsung SCD-2021 CCTV Dome Security Camera

  • SCD2021 Samsung Domes
  • dome camera front scd2021

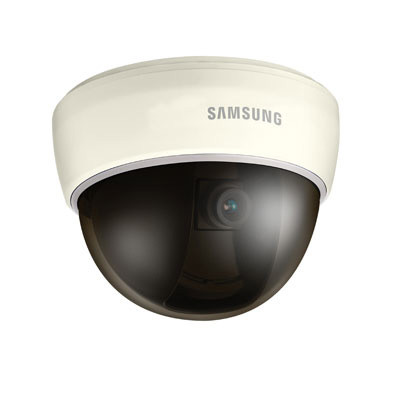

  • scd2021 side view
Calculated at checkout

Product Description

Samsung SCD-2021 CCTV Dome Security camera is an economic and performance driven indoor color dome camera. The unit provides vivid 600tvl high resolution color surveillance and is equipped with the Samsung W-V DSP chipset. The dome is built with a 3.7mm fixed lens and has an optional 8mm lens choice. The Camera also includes the powerful Samsung Sens Up technology for ultra low light performance in as little as 0.0003 Lux! Other attributes from SSNRIII to SSDR, Backlight to White balance settings all configurable by OSD. The camera OSD (on screen display) is further controllable via the coaxil communication method for easy remote config. The Samsung SCD-2021 Dome even supports Dual voltage input for easy installation in all types of security camera systems. The camera is truly a discreet and compact device measuring just over three by four inches. Regardless of its compact size or affordable cost, the Samsung SCD-2021 Dome Security Camera is perfect solution for high quality video security and monitoring.

Samsung SCD-2021 Main Features:

  • Supreme 600TVL High Resolution Color
  • Excellent sensitivity (0.15Lux) and 0.0003Lux (w/ Sens-up, 512x)
  • 3-Axis mechanical design for easy camera adjustment (Indoor)
  • SSNRIII (Samsung Super Noise Reduction), SSDR, Sens Up,
  • Coaxial OSD control

Samsung SCD-2021 Specifications:

  • Input Voltage: Dual (12VDC/ 24VAC)
  • Power Consumption: Max. 3.5W
  • Imaging Device: 1/3” Super HAD CCD
  • Total Pixels: 811(H) x 508(V) 795(H) x 596(V)
  • Effective Pixels: 768(H) x 494(V) 752(H) x 582(V)
  • Scanning System: 2 : 1 Interlace
  • Synchronization: Internal / Line lock
  • Frequency: H :15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
  • Horizontal Resolution: 600TV lines (Min.)
  • Min. Illumination: Color : 0.15Lux (50 IRE@F1.2), 0.0003Lux (Sens-up, 512x)
  • S / N (Y signal): 52dB
  • Video Output: CVBS : 1.0Vp-p / 75O composite
  • Zoom Ratio: Fixed
  • Focal Length: 3.7mm, 8mm
  • Max. Aperture Ratio: F2.0
  • Min. Object Distance: 0.4m (1.31ft)
  • Angular Field of View: H : 71°, V : 52° H : 33°, V : 25°
  • Pan Range: 0° ~ 352°
  • Tilt Range: 0° ~ 75°
  • Rotate Range: 0° ~ 348°
  • On Screen Display: English, Japanese, Spanish, English, French, German, Spanish, Italian, Chinese,
  • : French, Portuguese, Taiwanese, Korean Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
  • Camera Title: On / Off (Displayed 15 characters)
  • Day & Night: Auto (Electrical) / Color / B/W
  • SSDR: On / Off (Level adjustable)
  • Backlight Compensation: BLC / HLC / Off
  • Motion Detection: On / Off (8 programmable zones)
  • Digital Image Stabilization DIS: On / Off
  • Privacy Masking: On / Off (12 Programmable zones)
  • 2D+3D Noise Filter (SSNRIII): On / Off
  • Sens-up (Frame Integration): Auto / Off (Selectable 2x ~ 512x)
  • Gain Control: Low / High / Off
  • White Balance: ATW / AWC / Manual / Indoor / Outdoor
  • Electronic Shutter Speed: ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
  • Communication: Coaxial Control
  • Flip / Mirror: On / Off
  • Operating Temperature: -10°C ~ +50°C (+14°F ~ +122°F)
  • Operating Humidity: 30% ~ 90% RH
  • Dimension (WxH): Ø107.6 x 83.7mm (Ø4.24” x 3.3”)
  • Weight: 285g (0.63 lb)
  • Certifications: FCC (Class A), UL/cUL listed CE (Class A), UL/cUL listed

SCD-2021 Standard White Casing
SCD-2021B Black Casing (special order)
