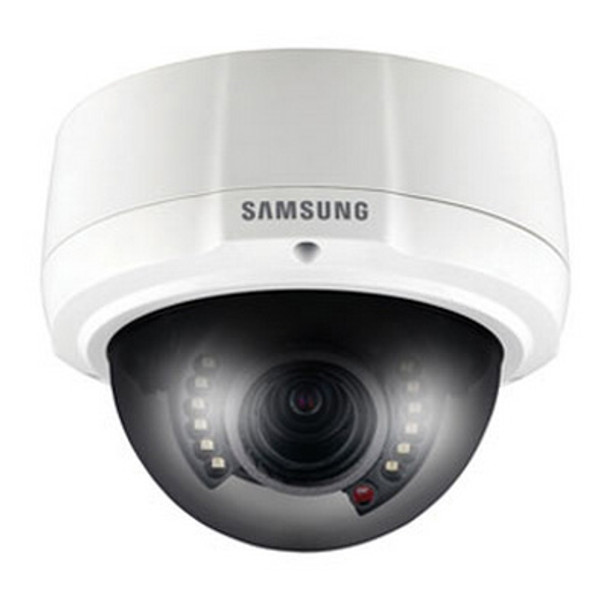

Samsung SCV-2081R Vandal Proof IR Dome Security Camera

Product Description

Samsung SCV-2081R Vandal Proof IR Dome Security Camera is an compact and rugged dome camera for 24/7 surveillance. The Samsung SCV-2081R includes 20 high power Infrared LEDs with automatic illumination Intensity confrol for optimal IR night vision up to 20m. In addition the camera offers superb 600tvl color and 700tvl b/w imaging. The unit is equipped with a 3 axis camera bracket and varifocal dc iris lens for superior flexibility when positioning. The Samsung SCV-2081R CCTV IR Dome Camera also boast advanced features like SSNRIII, SSDR, and Sens UP to enable super crisp and low light video capture. The Samsung SCV-2080R has an on board OSD for fully loaded set of camera settings and support coaxil communication for remote camera control. The Samsung unit as well offers dual voltage power input for 12VDC or 24VAC systems. The camera again built in rugged case rated to IP66 weatherproof standards. Its Vandal Resistant design ensure protection against tampering and assualt. The Samsung SCV-2080R Vandal Infrared Dome Security Camera is the perfect choice for expert level surveillance and video security systems.

Samsung SCV-2080R Main Features:

High resolution of 600TVL Color or 700TVL (B/W)
Min. illumination 0Lux (IR LED on), IR distance 20m
True Day & Night (ICR), MD, SSNRIII, SSDR, Sens Up, DIS
3.6x DC Auto Iris Varifocal lens (2.8 ~ 10mm)
On board OSD with Coaxil Communication : Pelco-C (Coaxitron)
Dual Voltage power input 12VDC or 24VAC

Sasung SCV-2080R Specifications:

Imaging Device 1/3" Super HAD CCD II
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination
Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x)
B/W : 0Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vp-p / 75O composite
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x)
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Lens Type DC auto iris
Mount Type Board type
PAN / TILT
Pan Range 0° ~ 352°
Tilt Range 0° ~ 73°
Rotate Range 0° ~ 348°
On Screen Display
English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian,Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation BLC / HLC / Off
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Motion Detection Off / On (8 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev (Off / On) / V-Rev (Off / On)
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
IR Infrared Distance 20m (IR LED 20ea)
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
Ingress Protection: Weatherproof IP66 Grade
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 3W / Max. 4W (IR LED on)
Color / Material Ivory / Aluminum, Plastic (Dome cover : Smoked)
Dimensions (WxH) Ø137.0 x 106.0mm (Ø5.39" x 4.17")
Weight 710g (1.57 lb)
