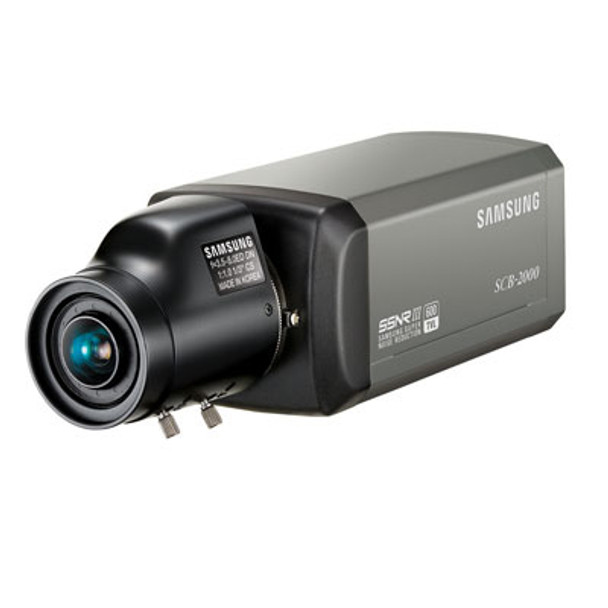

Samsung SCB-2000 Color Security Camera

Samsung SCB-2000 Color Security Camera is an advanced box style cctv camera. The Samsung SCB-2000 begins by offering 600tvl high resolution color video surveillance. The camera unit is further equipped with superior Samsung Image Technology like SSNR III, HLC, and Sens Up provide superior clarity with super low light ability. This high grade CCTV Security camera additionally provides Coaxil Control or rear directional button control for a multi language OSD. Samsung SCB-2000 utilizes a universal C or CS style lens mount with support for DC Auto Iris Lenses. The Camera again offers flexibility with much desired 12VDC or 24VAC dual voltage power input. The model is built in a high quality plastic and metal casing Other attributes like Digital Image Stabilization, Privacy Masking and Motion detection secure the SCB-2000 as a top choice for security camera systems seeking unmatched image quality, features and cost effectiveness.

Samsung SCB-2000 Main Features:

• Razor Sharp 600TVL High Resolution Color Images
• Ultra Low Light Level of 0.05Lux or 0.0001Lux (Sens-up, 512X)
• 2D/3D Filtering Noise Reduction Technology SSNRIII
• HLC (Highlight Compensation) Backlight Compensation Technology
• SSDR (Samsung Super Dynamic Range)
• DIS (Digital Image Stabilization) Technology,
• COAX Control and Communication including OSD
• Dual Voltage 12VDC or 24VAC

Samsung SCB-2000 specifications:

• Imaging Device: 1/3” Super HAD CCD
• Total Pixels: 811(H) x 508(V) 795(H) x 596(V)
• Effective Pixels: 678(H) x 494(V) 752(H) x 582(V)
• Scanning System: 2 : 1 Interlace
• Synchronization: Internal / Line lock Internal Internal / Line lock Internal Internal / Line lock
• Frequency: H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
• Horizontal Resolution: 600TV lines (Min.)
• Min. Illumination: Color : 0.05Lux (50 IRE@F1.2), 0.0001Lux (Sens-up, 512X)
• S / N (Y signal): 52dB (AGC off, Weight on)
• Video Output: CVBS : 1.0 Vp-p / 75 composite
• On Screen Display
• NTSC: English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
• PAL: English, French, German, Spanish, Italian, Chinese, Russian,Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• Camera Title: Off / On (Displayed 15 characters)
• Day & Night: Auto (Electrical) / Color / B/W
• SSDR: On / Off (Level adjustable)
• Backlight Compensation: BLC / HLC / Off
• Motion Detection: On / Off (8 programmable zones)
• Digital Zoom: On / Off (1x ~ 16x)
• Digital Image Stabilization: On / Off
• Privacy Masking: On / Off (12 programmable zones)
• 2D+3D Noise Filter (SSNRIII): On / Off
• Sens-up (Frame Integration): Auto / Off (Selectable 2x ~ 512x)
• Gain Control: Low / High / Off
• White Balance: ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
• Electronic Shutter Speed: 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
• Sharpness: On / Off (Level adjustable)
• Flip / Mirror: On / Off
• Communication: Coaxial control
• Operating Temperature / Humidity: -10°C ~ +50°C (+14°F ~ +122°F) / 30% ~ 90% RH
• Dimension (WxHxD): 58 x 52 x 121mm (2.28” x 2.05” x 4.76”)
• Weight: 310g (0.68 lb) 290g (0.64 lb) 310g (0.68 lb) 290g (0.64 lb) 510g (1.12 lb)
• Lens Mount: C / CS
• Certifications: FCC (Class A), UL/cUL listed FCC (Class A)
• Input Voltage: Dual (12V DC / 24V AC) 12V DC Dual (12V DC / 24V AC) 12V DC 230V AC
• Power Consumption: Max. 3.5W Max. 2.5W Max. 3.5W Max. 2.5W Max. 4.0W
