Messoa SCR368-HN5 WDR IR Bullet Security Camera 700TVL

  • Messoa SCR368-HN5 High Performance WDR Infrared Bullet Style Security Camera
  • Messoa SCR368-HN5 Key features
  • Messoa SCR368-HN5 DIMENSIONS
Calculated at checkout

Product Description

Messoa SCR368-HN5 WDR IR Bullet Security Camera is a high performance CCTV Infrared camera ideal for medium to long range surveillance and video security requirements. The Messoa SCR368-HN5 IR Bullet Camera delivers stunning 700TVL images and with added Messoa Lumii Technology provides superior clarity to typical 700tvl cameras especially in low light. The unit is equipped with a powerful array of IR LEDs for 50m (164ft) of IR illumination. Other advanced qualities such as WDR (Wide Dynamic Range), High Light Compensation (HLC) and Digital Noise Reduction enable absolute video clarity in even the most adverse lighting conditions.
The Messoa SCR368-HN5 Infrared Bullet Security Camera is also perfectly adapted for outdoor use with an IP66 weatherproof rating. The IR Camera also features a sun-shield and cable management bracket for added protection. Easy installation is aided by a built-in OSD (on screen display) while external varifocal 6-50mm Lens helps achieve a wide range of focal points. More benefits like built-in Motion detection and Privacy Masking enable advanced system design while support for 12VDC or 24VAC power allows easy integration with professional CCTV Camera systems.

Messoa SCR368-HN5 Main Features:

  • 1/3" SONY Exview HAD CCD II
  • Ultra-High Resolution 700TVL
  • 6-50mm Varifocal Externally Adjustable Lens
  • Infrared IR LEDs for absolute night vision to 50 meters (164ft)
  • IP66 Weatherproof outdoor Ready
  • WDR (Wide Dynamic Range), DNR (Digital Noise Reduction), HLC (High Light Compensation)
  • OSD Menu and Service Monitor Output
  • Dual Voltage 12VDC or 24VAC with Low Power Consumption

Messoa SCR368-HN5 Specifications:

Signal System NTSC PAL
Image System
Image Pickup Device 1/3" SONY Exview HAD CCD II
Effective Pixels (HxV) 976 (H) × 494 (V) 976 (H) × 582 (V)
Scanning System 2:1 Interlace V: 59.94 Hz , H: 15.734KHz 2:1 Interlace V: 50 Hz , H: 15.625 KHz
Sync System Internal/Line lock
Horizontal Resolution 700 TV lines
Built-in Lens f=6mm~50mm,F1.6 DC iris varifocal IR-corrected lens
External adjustments (zoom and focus)
View Angle Horizontal:43.9°(wide)~5.7°(tele)
Gamma Correction 0.45
Minimum Illumination F1.6 color mode: 0.04 lux@50IRE, 0.02lux@30IRE, B/W mode: 0.02 lux@50IRE, 0.01 lux@30IRE,
IR LED ON:0 lux
S/N Ratio More than 50dB (AGC off)
Gain Control On / Off (selectable)
White Balance ATW/ Manual/ User/ Push/ Push lock
Electric shutter 1/60 sec 1/50 sec
Flickerless On / Off (selectable)
BLC Off/ BLC/ HLC (High light compensation) (selectable)
Day/Night Mode Mechanical (ICR) control (Auto/Color/ B/W)
Motion Detection Yes, 4 areas (max)
Privacy Mask Yes, 8 zones (max)
High Light Compensation HLC: Yes
ATR=WDR: On / Off (selectable)
Multi Language English, Japanese, German, French, Russia, Portuguese, Spanish, Simplified Chinese
Video Output 1Vpp composite output, 75 ohm
IR LED Super power LED 32pcs
IR Wavelength 850nm
IR Distance 50M(164ft)
IR Turn On Status Under 10 lux by photocell auto controlled
LED Life More than 10,000 hours (50°C)
Power Supply
Power Requirement DC 12V & AC 24V ± 10%
Power Consumption 7W (max)
Operating Temperature -10°C ~ 50°C
Operating Humidity 90% MAX
Storage Temperature -20°C ~ 60°C
Storage Humidity 70% MAX
Case Material Metal

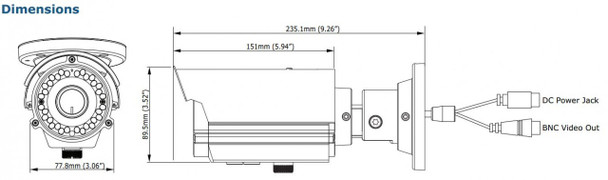

Dimension(FxHxD) F77.8mm x 89.5mm x 235.1mm (3.06"x3.52"x9.26")
Weight 1600g (3.54lb) approx.
Construction Sunshield; Cable management bracket;
Compact die-cast aluminum; Tempered Glass
Protection Class IP66
Ordering information SCR368-HN5 SCR368-HP5
