Dahua OEM HDBW2220E HD CVI 1080P IR Vandal Dome Camera IP66

  • Dahua OEM HDBW2220E HD CVI IR Vandal Dome Camera 1080P
  • Dahua HDBW2220E HD CVI IR Vandal Dome Camera

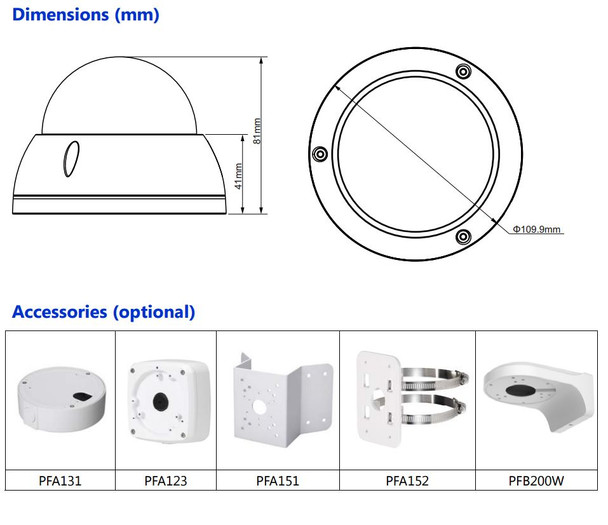

  • Dahua OEM HDBW2220E HD CVI IR Vandal Dome Dimensions and Accessories
Calculated at checkout

Product Description

OEM Dahua HDBW2220E HD CVI 1080P IR Vandal Dome Security Cameras are an amazing solution for cost effective, high definition video security. Featuring a 2.4 Megapixel HD Low Lux CMOS Image Sensor this unit provides full 1080P HD in real-time 30fps using no more than the traditional BNC and coaxial cable used for analog CCTV. This new format of HD CCTV leaps these security cameras into a class that rivals modern IP Cameras. This particular Vandal Proof IR Dome Camera employs a wide range of pro features accustom to pro CCTV Vandal Domes, yet it includes a more compact casing and unmatched price per performance. The unit is well outfitted with everything from rugged construction, flexible positioning to powerful Smart IR Illumination promises solid results in any environment and at an amazing low cost.

Dahua HDBW2220E Main Features:

  • 1/2.8" 2.4 Megapixel HD CMOS Low Lux
  • 1080P at Real-time 30fps or 720P at Superior 60fps
  • True Day/Night (ICR), Fast to Slow Shutter Speeds, AWB, AGC, BLC, 3D-DNR
  • Fixed 3.6mm Megapixel fixed lens (6mm, 8mm optional)
  • Smart IR (Infrared) Illumination to 60ft (or 20 meters)
  • Real-time, long distance coaxial HD transmission
  • OSD (on-screen display) Menu with control communication over coax cable
  • Weatherproof IP66 and Vandal Proof, High Impact IK10
  • Low Power: 12VDC with no more than 3.5 watts draw
  • Dimensions (W×D×H): Φ4.3" × 3.19"
  • Weight: 0.66 lbs


Superb Performance, Smart Design:
In addition to high frame rate, 1080P video at 30fps, this unit can produce 60fps 720P High Definition video for high speed target requirements. The integrated image enhancements like Flexible Shutter Speed, True Day/Night or AWB, AGC, BLC and 3D-DNR (Digital Noise Reduction) ensure optimal video clarity. Smart IR (Infrared) is a technology that works to avoid over-exposure of night vision as can be common with standard IR units and subjects being over illuminated. Likewise the powerful IR Array still delivers up to 20 meters or about 60ft of coverage. The Default 3.6mm lens also give a wide horizontal viewing angle of 88º but more telephoto 6mm and 8mm options are available for special order. It is almost inconceivable how such a compact, low cost and simple design can deliver such powerful features and as it has, become a market leading solution for anyone on a budget.

Flexible Installation:
Without question this IR Vandal Dome HD-CVI Security Camera is a well-designed, high performing and absolutely budget friendly option simply based on its performance versus price. However, despite its cost, it is not cheaply constructed and will certainly make you appreciate every penny spent on it. Technology has definitely come leaps and bounds and it is clearly apparent with this product. Transmission via the same CCTV Coaxial Cable yet now in HD is only even more impressive with its support of coax communication allow full control of the devices functions and OSD remotely. Integration is versatile, in fact these units can even be switched for backwards compatibility with standard CCTV recorders, not that we can think of many reasons you would do that with the also reasonably priced, HD CCTV recorders now offered. Regardless, 12VDC power input and multiple mounting angles, plus mounting accessories make all types of installs easily accessible. Likewise the units weatherproof IP66 and rugged IK10 vandal proof design guarantee a tough build ready for the harshest conditions.

Last Updated March 25, 2016
