Geovision GV-VD2530 2MP IR Vandal Dome IP Camera Low Lux

  • Geovision GV-VD2530 1080P Intelligent IR Vandal Dome IP Camera
  • Geovision GV-VD2530 Infrared Vandal Proof Dome IP Security Camera

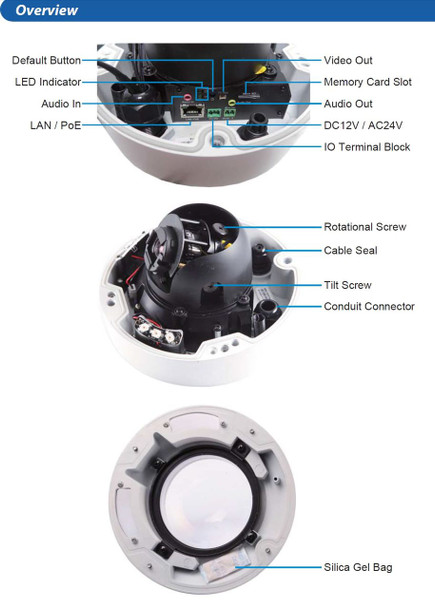

  • Geovision GV-VD2530 Vandal Dome Internal Diagram
  • Geovision GV-VD2530 Vandal Dome Dimensions
  • Geovision GV-VD series internal top view
  • Geovision GV-VD1530 Top view Vandal Proof Dome Series II

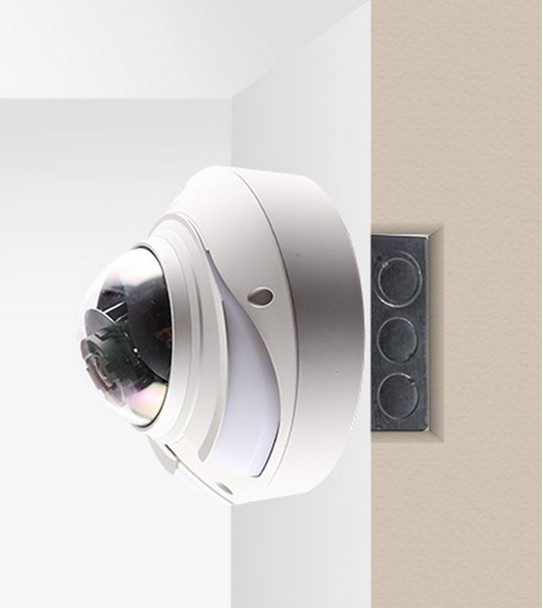

  • Geovision Electrical Power Box Dome Adapter
  • Image 8
  • Geovision Wall Pendant Mount
  • Geovision Vandal Dome with L-Type Wall Bracket
  • Geovision Vandal Dome with Mini Pendant Wall Bracket
  • Geovision Vandal Dome Wall L-Bracket with Pole Mount Adapter
  • Geovision Vandal Dome Wall Pendant Mount with Pole Mount Adapter
  • Image 14
  • Geovision Vandal Dome Convex Corner Wall Pendant Mount with Box
  • Geovision Vandal Dome Convex Corner L-Type Wall Bracket and Pendant Mount
  • Geovision Vandal Dome Concave Corner Wall Pendant Mount
  • Geovision Vandal Dome with Ceiling Mount Straight Tube Pendant Mount
  • Geovision Vandal Dome with Ceiling Mount Straight Tube Pendant Mount with Box
Price:
$495.00
SKU:
GV-VD2530
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Geovision GV-VD2530 2MP IR Vandal Dome IP Camera with Super Low Lux performance is part of Geovision's innovative new line of megapixel vandal proof security cameras. Full featured these modernized units yield professional video results and this model provides up to 30fps Real-time streaming of 1080P HD resolution. But more impressive is the clarity of image performance both in color or b/w mode due to its super low light enhancements. As addition to this a new concept of case embedded IR LED Illumination delivers superior night vision results compared to traditional IR Dome cameras. Users will also undoubtedly benefit from many on-board imaging enhancements while likewise intelligent built-in functions provide a diverse set of security possibilities like on-board detection, local recording, audio or external device support. Security System integration with 3rd party systems is made easy with ONVIF compliance and in the same fashion install is made simple with flexible power inputs. Installers also has a vast selection of optional mounts and of course a weatherproof IP67, vandal resistant IK10 construction promises rugged protection anywhere.


Geovision GV-VD2530 Main Features:

  • 1/2.8” progressive scan 2MP Super Low Lux CMOS Sensor
  • Dual video streams, individually configured H.264 or MJPEG
  • Real-time 30fps at Full 2 Megapixel 1080P HD (1920 x 1080)
  • Varifocal megapixel lens 3-9mm DC Iris
  • 3-axis adjustment (pan/tilt/roll)
  • Mechanical IR-cut filter for True Day/Night Color or B/W 0.02 Lux
  • Six High Power Case Mounted IR LEDs, Infrared Range of 25m (82 ft.)
  • Intelligent IR counters over exposure for detailed Night Vision
  • Wide Dynamic Range (WDR), 3D noise reduction (DNR), Defog
  • Motion detection, Tampering alarms and Privacy masking
  • Diverse Network Functions: IP address filtering, RTSP, FTP, QoS, UPnP, HTTPs, DynDNS, more
  • Two way audio with external Microphone Input and Speaker Output
  • Alarm I/O for Sensor Input and Relay Output
  • TV-out support for composite display
  • On-board Recording with micro SD card slot (SD/SDHC)
  • ONVIF (Profile S) conformance
  • Supports iPhone, iPad, Android & 3GPP mobile viewing
  • Support for 31 languages on Web interface and comprehensive monitoring controls
  • Outdoor ready, Weatherproof IP67 and Vandal Resistant, High Impact IK10+ rated
  • Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
  • Dimensions: ø 176.5mm x 118mm (6.9" x 4.6")
  • Weight: 1.76 kg (3.88 lbs.)
  • 12VDC, 24VAC or PoE+ (IEEE 802.3at)


Superior Low Light HD IP Surveillance:
The Geovision GV-VD2530 2 Megapixel IR Vandal Dome IP Security Cameras employ a 1/2.8" super low lux CMOS image sensor for unsurpassed, best in class day/night performance. Operating in as little as 0.02 Lux regardless of in Color or Black/White, the security camera displays powerful abilities even before considering other advantages of Infrared or Imaging Technology. The units True Day/Night operation coupled with a new style of High Powered IR LEDs give absolute night vision with an equal, well spread coverage unmatched by common IR dome types. With an Effective IR range of 25 meters (82 ft.) the difference is clearly noticeable especially in wide angle shots. Other perks add even more assurance of optimal video like DNR (Digital Noise Reduction), Intelligent IR for avoiding over exposure or WDR (Wide Dynamic Range) for overcoming scenes of high bright and dark areas. Access to dual streaming with optional H.264 or MJPEG compression plus individual streaming configurations allow fully professional system design. All around this security camera produces IP video surveillance that will please anyone's expectation of quality 1080P HD video stream.


Intelligent Design and Full Functionality:
The Geovision GV-VD2530 2MP IR Vandal Dome IP Cameras are sure to please you with a wide range of excellent features, superb quality and an effective cost. The device offers a wide range of configurable technology from imaging properties to network selections, on-board detection methods to event triggers, live monitoring or recording and beyond. A well-developed web interface allows easy modification of these settings and likewise gives you a powerful, easy to operate live monitoring solution. Access to all sorts of controls including Digital PTZ, Picture in Picture (PiP), Visual Automation, Privacy Masking, Two Way Audio and Alarm I/O allow you to manage countless actions in real-time directly from the IP Camera web interface. Multiple network services or IT protocols are supported too like RTSP, QoS, UPnP, HTTPs, DynDNS plus more for all kinds of project demands. Thought ONVIF promises you easy integration with ONVIF compliant systems, a variety of well-developed Geovision surveillance System management solutions are offered, many free of Charge. Applications such as the Geovision Mobile Viewing app, GV-EYE or the highly popular GV-NVR Software with support for up to 32 channels at no extra cost are both included. More choices from Geo like the new GV-VMS 64 channel platform or GV-Recording server allowing up to 128 channels per server are likewise great products for large scale deployments.


Rugged Construction, Flexible Installation:
Built to deliver a new generation of IP Surveillance in a modernized vandal dome design, the unit employs seemingly the best combination of features, innovative enhancements, quality, and versatility along with a best cost for performance ratio. On top of the all the smart functions and high performing attributes is a solution that is ingeniously constructed. Take as example a full range 3 axis camera positioning combined with a 3-9mm DC iris lens that provide perfect orientation regardless of the security cameras mounting location. The unit is surface mount by default, yet a huge assortment of mounting accessories enable in-ceiling, pendant, wall, pole or even corner mounting with ease. A weatherproof IP67 as well as vandal resistant, high impact IK10 rating confirm this product is outdoor ready, fully prepared for the harshest of environmental conditions. Install perks such as triple power input of 12vdc, 24vac or PoE+ is just one last example that ensures you can adapt this powerful surveillance solution to any security camera system.




Last Updated March 29, 2015
