Geovision GV-VD2430 2MP WDR IR Vandal Dome IP Camera

  • Geovision GV-VD2430 2 MegaPixel 1080P IR Vandal Dome IP Camera IP67
  • Geovision GV-VD2430 2MP 1080P IR Vandal Dome IP Camera IP67 PoE+
  • Geovision GV-VD2430 Internal Dome Overview Diagram

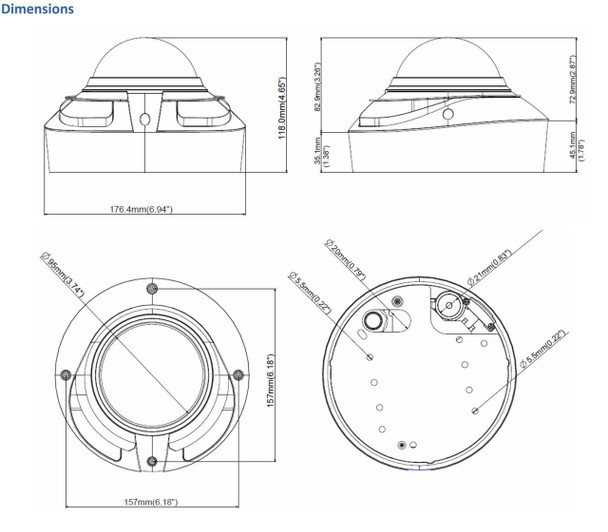

  • Geovision GV-VD2430 dome dimensions
  • Geovision GV-VD2430 Top view Vandal Proof Dome Series II
  • Geovision Electrical Power Box Dome Adapter

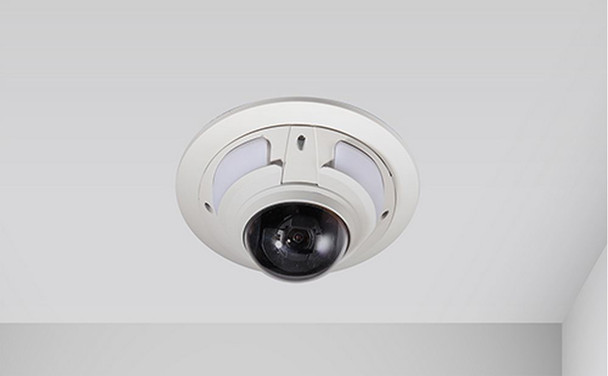

  • Geovision Vandal Dome In-Ceiling Mounted
  • Geovision Wall Pendant Mount

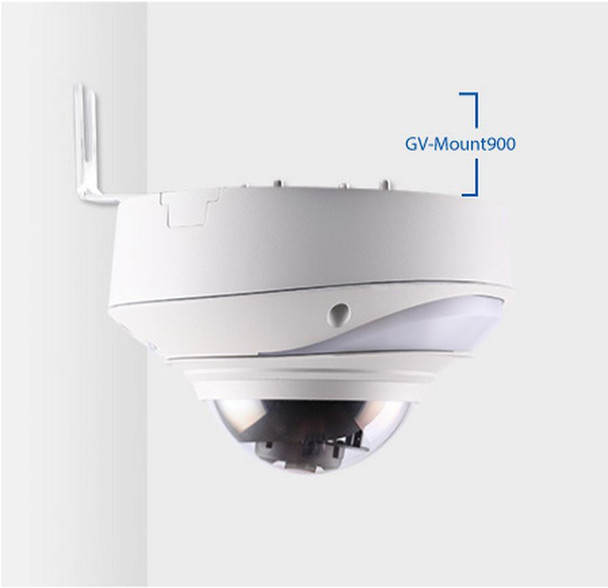

  • Geovision Vandal Dome with L-Type Wall Bracket

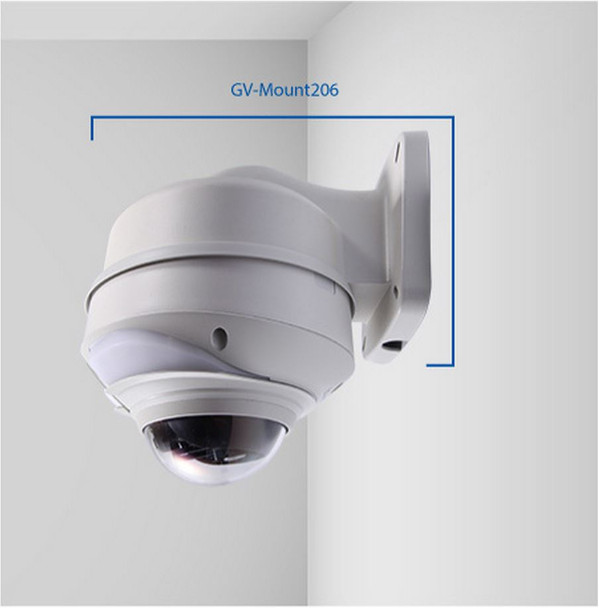

  • Geovision Vandal Dome with Mini Pendant Wall Bracket

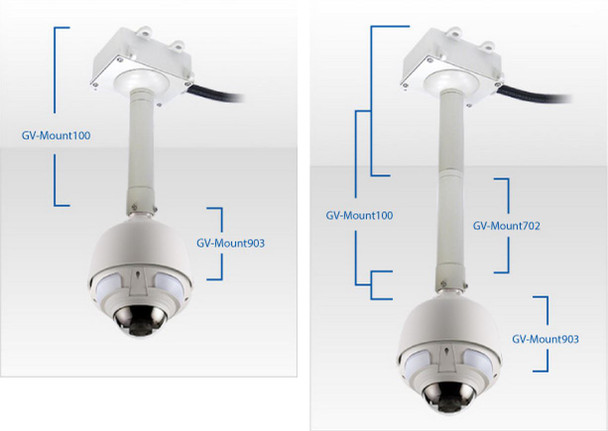

  • Geovision Vandal Dome with Ceiling Mount Straight Tube Pendant Mount with Box
  • Geovision Vandal Dome with Ceiling Mount Straight Tube Pendant Mount

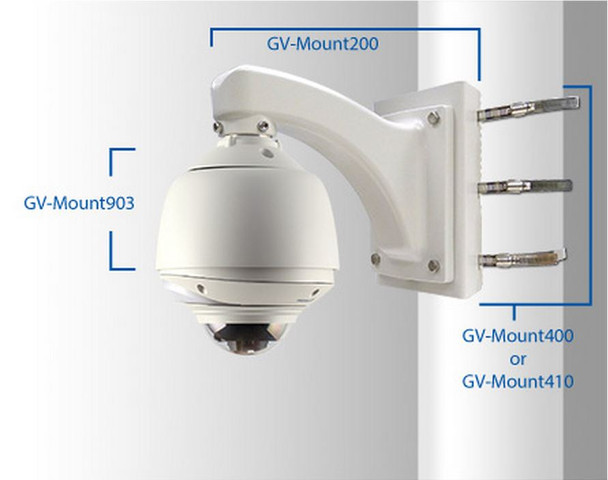

  • Geovision Vandal Dome Wall Pendant Mount with Pole Mount Adapter

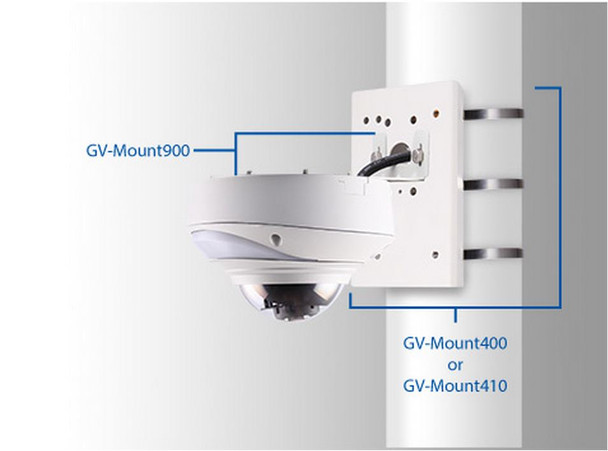

  • Geovision Vandal Dome Wall L-Bracket with Pole Mount Adapter

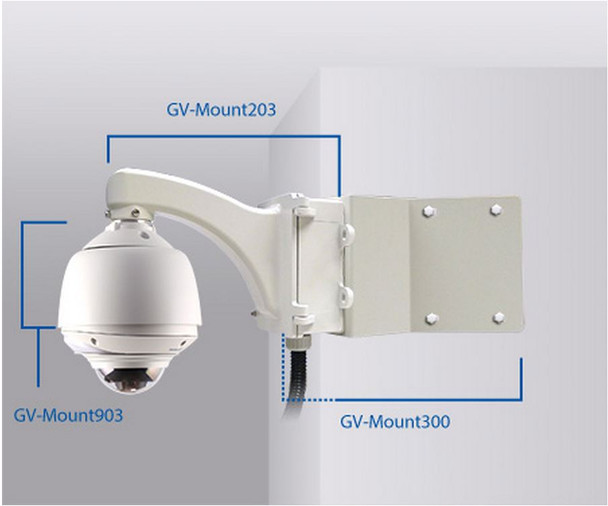

  • Geovision Vandal Dome Convex Corner Wall Pendant Mount with Box
  • Image 16

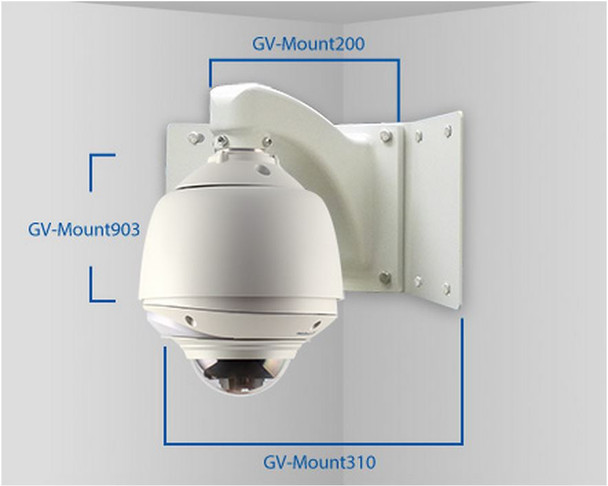

  • Geovision Vandal Dome Concave Corner Wall Pendant Mount
Price:
$495.00
SKU:
GV-VD2430
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Geovision GV-VD2430 2MP Vandal WDR IR Dome IP Security Cameras are a new breed of vandal proof IP dome cameras displaying superior results compared to traditional IR vandal domes. Obviously outfitted with a progressive scan Megapixel HD sensor this model gives you 1080P HD video surveillance in up to real-time 30fps. Superb video quality is achieved with a combination of advanced attributes like a unique externally integrated, high power IR LED array to a powerful Wide Dynamic Range function. In-depth control for camera video settings to added enhancements like DNR or Defog promise a high clarity video even in the most challenging applications. All around the unit employs cutting edge features like Audio, Local SD Card Recording or PoE+ for single cable installation. Installation is further benefited with a wide range of optional mounting accessories and its Rugged IK10 Vandal Resistant, IP67 weatherproof rating ensures maximum protection in any environment. Fully ready for third party system integration via ONVIF and other methods you can also enjoy Geovision GV-NVR 32ch Network Video Recorder Software free of charge or check out the new GV-VMS for up to 64 channel deployments of Geovision IP Cameras with maximum cost effectiveness.


Geovision GV-VD2430 Main Features:

  • 1/2.8” progressive scan 2MP HD CMOS Sensor
  • Dual video streams, individually configured H.264 or MJPEG
  • Real-time 30fps at Full 2 Megapixel 1080P HD (1920 x 1080)
  • Varifocal megapixel lens 3-9mm DC Iris
  • 3-axis adjustment (pan/tilt/roll)
  • Mechanical IR-cut filter for True Day/Night Color 0.08 Lux or B/W 0.05 Lux
  • Six High Power Case Mounted IR LEDs, Infrared Range of 20m (65 ft.)
  • Intelligent IR counters over exposure for detailed Night Vision
  • Wide Dynamic Range (WDR), 3D noise reduction (DNR), Defog
  • Motion detection, Tampering alarms and Privacy masking
  • Diverse Network Functions: IP address filtering, RTSP, FTP, QoS, UPnP, HTTPs, DynDNS, more
  • Two way audio with external Microphone Input and Speaker Output
  • Alarm I/O for Sensor Input and Relay Output
  • TV-out support for composite display
  • On-board Recording with micro SD card slot (SD/SDHC)
  • ONVIF (Profile S) conformance
  • Supports iPhone, iPad, Android & 3GPP mobile viewing
  • Support for 31 languages on Web interface and comprehensive monitoring controls
  • Outdoor ready, Weatherproof IP67 and Vandal Resistant, High Impact IK10+ rated
  • Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
  • Dimensions: ø 176.5mm x 118mm (6.9" x 4.6")
  • Weight: 1.76 kg (3.88 lbs.)
  • 12VDC, 24VAC or PoE+ (IEEE 802.3at)


Superior HD IP Surveillance, Day or Night:
The GV-VD2430 Geovision 2 MegaPixel WDR IR Vandal Dome IP Camera is equipped for unfailing video security in scenes of total darkness to complex day time lighting. Built on a 1/3.2" HD CMOS image sensor the unit provides up to 1080P High Definition at up to Real-time 30fps. Dual Streaming in H.264 or MJPEG including individually configured video streams ensures flexible adaptation to all sorts of bandwidth and storage requirements. The units excel in low light performance be it color or b/w mode, while the addition of ICR true Day/Night plus the innovative IR LED illumination make for absolute night vision. Featuring an externally constructed, High Power IR LED array in the Dome Casing this modernized design allows you a more equally distributed infrared night vision while also eliminating IR bounce back issues often faced by traditional IR domes. DNR (Digital noise Reduction) to Intelligent IR even further enhances night time viewing ensuring proper IR exposure for clear identification of subject details. The WDR Pro (Wide Dynamic Range Pro) attribute is just another example of many that optimize this security cameras video to help you overcome situations of high bright and/or dark areas in scenes that would otherwise often make video useless.


Smart Design, Solid Construction:
In addition to this IR Vandal Domes innovating IR array and superb video abilities, it comes with a wide set of physical characteristics that define a solid security camera design. Internally this unit includes gimbals for 3 axis adjustment plus a Varifocal 3-9mm DC Auto Iris Lens giving maximum versatility in positioning. The default unit is a surface mount vandal dome, however a wide selection of optional mounting accessories like pendant or wall brackets, sun-shield or in-ceiling mounts and more are all available. Customized installation with 12VDC, 24VAC or PoE+ (high PoE IEEE 802.3at) further allows you to adapt to all types of security system requirements. Even more hardware benefits can be found such as line input/output for Two Way Audio as well as an Alarm Terminal block for Sensor Input or Relay output connections. Another aspect to appreciate is these units are designed to withstand harsh environmental conditions, extreme low temperatures and even direct assault. Constructed to weatherproof IP67 ratings, you can hardly find a better outdoor ready vandal dome, IK10 high impact standard plus a vandal resistant casing promise rugged protection against all the elements.


Intelligent Functions, Comprehensive Features:
Each level of the Geovision GV-VD2430 1080P HD WDR IR Vandal Dome IP Cameras on-board intelligence provides easy deployment to feature rich capabilities. In-depth Image Control is granted so you can define the best images settings to suit a wide variety of projects. There is also multiple alarm detection methods with event triggers to local SD recording or FTP upload as examples of its stand-alone IP Surveillance ability. Similarly numerous network protocols and network services are accessible such as RTSP, QoS, UPnP, HTTPs, 3GPP to DynDNS or of course ONVIF for easy 3rd party IP video integration. Geovision's Web interface also grants you easy control with rich functionality for many forms of monitoring. An advanced set of software options like the FREE GV-eye Mobile device viewing, the FREE 32 channel GV-NVR Network Video Recorder, GV-Recording Server or new Geovision GV-VMS 64 channel software yield plenty of video management options.



Last Updated March 29, 2015
