Geovision GV-FE3402 3MP WDR 360 Fisheye IP Camera

  • Geovision GV-FE3402 3MP Fisheye IP Camera
  • Image 2
  • Geovision GV-FE3402 Surface or In-ceiling Mount Fisheye IP Camera
  • Geovision GV-FE3402 Function Diagram

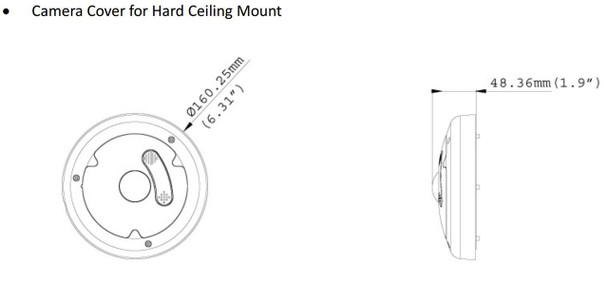

  • Geovision GV-FE3402 Surface Mount Dimensions

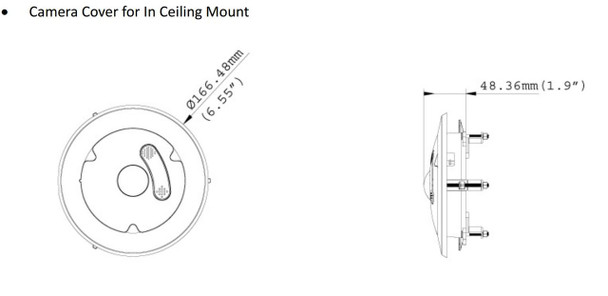

  • Geovision GV-FE3402 In-Ceiling Mount Dimensions

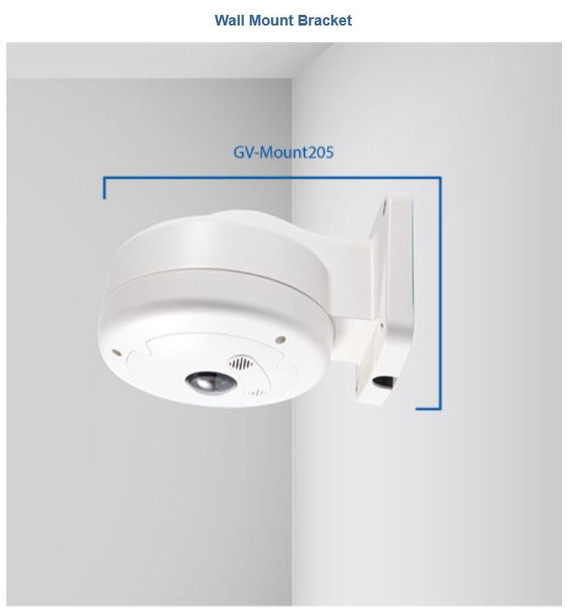

  • Geovision Compact Wall Mount

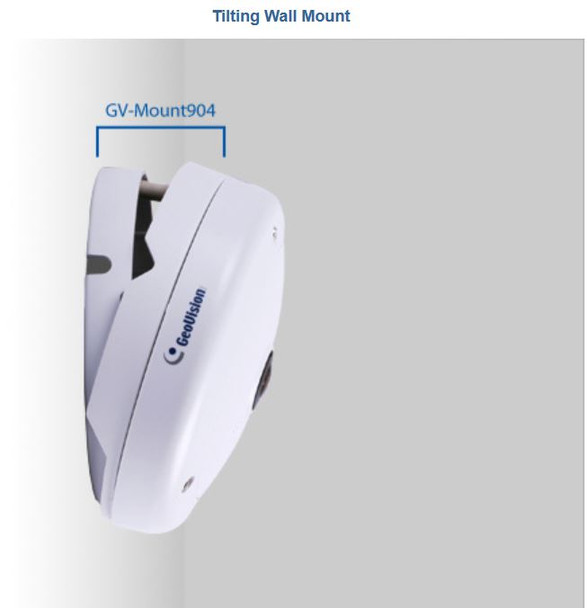

  • Geovision Fisheye Tilting Wall Mount

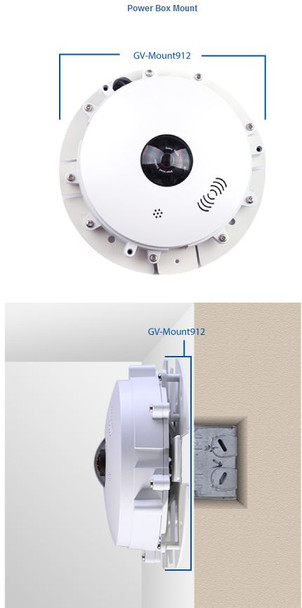

  • Geovision Fisheye IP Camera Electrical Power Box Mounting Adapter
  • Geovision Pendant Wall Mount Bracket
  • Geovision Pendant Wall Mount Bracket with Concave Wall Mount Adapter
  • Geovision Pendant Wall Mount Bracket with Box and Convex Wall Mounting Adapter
  • Geovision Pendant Wall Mount Bracket with Convex Wall Mounting Adapter

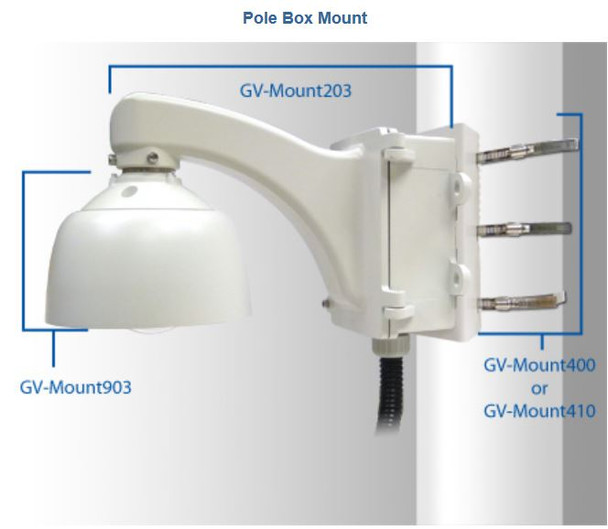

  • Geovision Pendant Wall Mount with Back Box and Pole Mount Adapter
  • Geovision Pendant Wall Mount and Pole Mount Adapter
  • Geovision Pendant Straight Tube Mount

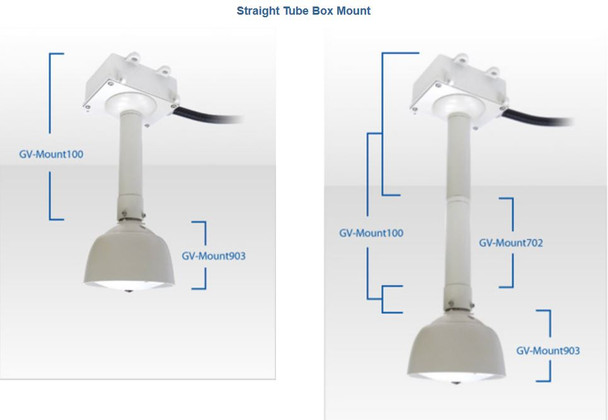

  • Geovision Pendant Straight Tube Mount with Box
  • Geovision Fisheye Digital Object Tracking
Calculated at checkout

Product Description

Geovision GV-FE3402 3MP WDR 360 Fisheye IP Camera is an innovative indoor IP Surveillance solution for a wide range of applications. The unit delivers real-motion (15fps) 3 megapixel high definition video surveillance in 360 degree or 180 degree panoramic viewing. Designed to mount on the ceiling or wall, this unit has a sleek, unobtrusive appearance yet it packed with professional security functionality. The device includes True Day/Night operation, superior wide dynamic range (WDR Pro) and Digital Noise Reduction for excellent image quality. Provided with a surface and in-ceiling (recessed) casing, offering countless other advantages like Built-in Two Way Audio, Flexible Power input and Local SD Card Recording is just the beginning of this highly capable Fisheye security camera.

geovision-gv-fe3402-gv-fe5302-flush-in-ceiling-fisheye.jpg  geovision-gv-fe3402-gv-fe5302-surface-fisheye.jpg

Geovision GV-FE3402 Main Features:

  • 1/3.2" progressive scan CMOS
  • Single stream from H.264 and MJPEG
  • Real-motion 15fps at (2048 x 1536) 3 Megapixel
  • Day/Night (Mechanical IR-cut filter)
  • WDR Pro (Wide Dynamic Range Pro), 2DNR (Digital Noise Reduction), Defog
  • Vandal resistance (IK10+ for metal casing)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Micro SD card slot (SD/SDHC) for local storage
  • Two Way Audio with Built-in microphone and speaker
  • Complete 360° and 180° panorama surveillance
  • Live Viewing and Playback from any angle and zoom level
  • Digital Object Tracking, Virtual PTZ function, Auto Pan Function
  • Tampering alarm, Privacy mask, Visual automation, Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformance
  • 12VDC, 24VAC or PoE (IEEE 802.3af)
  • Operating Temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F)
  • Dimensions: Hard-Ceiling Mount Ø 160.2mm x 48.36mm (6.31” x 1.93”)
  • Dimensions: In-Ceiling Mount Ø 166.48mm x 48.36mm (6.55” x 1.93”)
  • Weight 410 grams (0.9 lbs)


Fisheye Panoramic HD Video Surveillance:
The Fisheye concept isn't new, but this level of Megapixel HD IP surveillance is nothing less than cutting edge. The unit is capable of producing high frame rate total 360 degree or 180 degree surveillance monitoring and coverage. The option of MJPEG or H.264 streaming to numerous video settings allow customized video performance. The units have in-depth camera controls and offer image enhancements like WDR Pro (Wide Dynamic Range) for adverse lighting, 2DNR (Digital Noise Reduction) for image noise and Mechanical Day/Night function for excellent low light performance. Fisheye Surveillance is a unique solution now highly effective thanks to megapixel imaging, used in small spaces they deliver exceptional detail of all surroundings, used on larger spaces (depending on size versus megapixel) units offer comprehensive area coverage.


Smart IP Camera Design:
The Geovision GV-FE3402 Fisheye IP Cameras are so advanced they can literally be a solution on their own. On-board video capture plus dewarping of Megapixel HD 360 Degree/180 Degree Fisheye/Panoramic Video, including all sorts of monitoring tools like Digital PTZ coupled with Detection methods and local recording enable a powerful IP Surveillance System. Even more than that Geovision's Fisheye IP Camera GV-FE3402 offers add-on features like GV-WiFi Adapter for Wireless Communications or External USB Hard Drive Support for large capacity, long-term local video storage. The unit is packed with recording methods, device integration via alarm input/output, Two way audio to diverse network protocol support including FTP, DynDNS, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS, RTSP, SMTP, UPnP and more. This Fisheye IP Security Camera is capable of so much more, visual automation, virtual PTZ, region of interest and beyond.


Flexible Install, Quality Construction:
Built to provide indoor dominating 360 degree or 180 degree IP surveillance the units include both surface or recessed mounting kits and the casing of the units is IK10 high impact, vandal resistant rated. The security cameras are also available with a wide range of optional mounting accessories like pendant mounts, wall mounts, adapters, dome covers and otherwise. Geovision GV-FE3402 also allows 12VDC, 24VAC or the popular PoE (power over Ethernet) power inputs for flexible install adaptation. Overall the Geovision GV-FE3402 are easy to deploy, configure and maintain and have become highly popular in a wide range of markets and security system applications.


Included in the Box:

Fisheye Camera
Camera Cover (Hard Ceiling Mount)
Screw (Hard Ceiling Mount) x 3
Plastic Screw Anchor x 3
Camera Cover (In-Ceiling Mount)
Screw (In-Ceiling Mount) x 3
Support Bracket x 3
Torx Wrench
Mini USB Extension Cable
Installation Sticker
Power Adapter
GV-IPCAM H.264 Software DVD
GV-Fisheye IP Dome Hardware Installation Guide
GV-NVR Software DVD
GV-NVR Quick Start Guide

Last Updated: March 19, 2015
