Geovision GV-EFD2100 2MP 1080P IR Mini Dome IP camera

  • Geovision GV-EFD2100 1080P WDR IR Mini Dome IP camera
  • Geovision GV-EFD2100 IR Mini Dome IP camera Ceiling
  • Geovision GV-EFD2100 Mini Dome IP camera Wall mounted

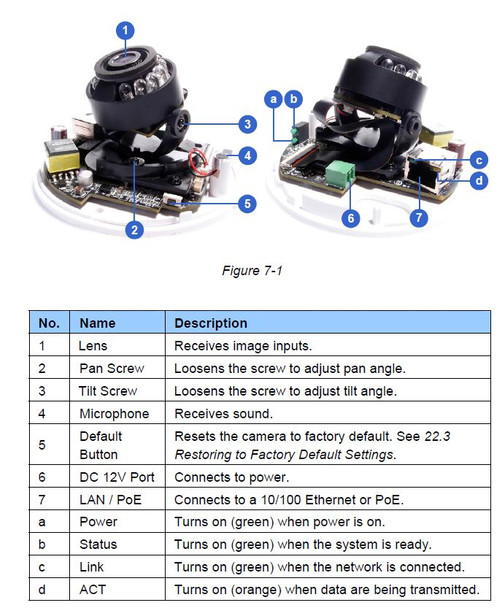

  • Geovision GV-EFD2100 Functions
  • Geovision GV-EFD2100 Dimensions
  • Geovision GV-EFD2100 mini dome with GV-Mount900
  • Geovision GV-EFD2100 mini dome with GV-Mount909
  • Geovision GV-EFD2100 mini dome with GV-Mount910 or GV-Mount913
  • Geovision GV-EFD2100 mini dome with GV-Mount910 or GV-Mount913
Price:
Call Us
SKU:
GV-EFD2100
Brand:


Product Description

Geovision GV-EFD2100 Target series 2MP 1080P IR Mini Dome IP camera is a powerful new surveillance solution with cutting edge features and a cost cutting price. This ultra-compact Dome Security Camera is loaded with numerous of the latest and most desired attributes from high definition video surveillance to intelligent network and security functions. Equipped with a 2MP Progressive Scan HD CMOS, True Day/Night operation, Intelligent IR and WDR is enough to tell you this security camera is ready to perform in nearly any lighting. Layers of technology be it IT network protocols, image settings or security functions ensure maximum adaptability to all sorts of professional security camera system demands.

Geovision GV-EFD2100 Main Features:

  • 1/2.8" progressive scan low lux CMOS sensor
  • Dual streaming with H.264 or MJPEG compression
  • Up to 25fps at 1920 x 1080 (1080P HD 2 Megapixel)
  • Intelligent IR reduces over exposure w/15m (50ft) IR Range
  • Optional Megapixel Lens: 3.8mm (GV-EFD2100-2F) or 2.8mm (GV-EFD2100-0F)
  • Day and night function (with removable IR-cut filter)
  • 2-axis mechanism (pan / tilt)
  • Built-in microphone for easy audio surveillance
  • Wide Dynamic Range (WDR) for adverse lighting
  • On-Board functions: Defog, Motion detection, Tamper Alarm, Text overlay, Privacy mask
  • Smart Networking: IP address filtering, HTTPs, DynDNS, FTP, NTP, RTSP, UPnP and more
  • Support for Mobile Viewing on iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) con formant
  • Operating Temperature: 0 °C ~ 45 °C (32 °F ~ 113 °F)
  • Size: ø 100mm x 60mm (3.9’’ x 2.4”)
  • Weight: 148 grams (0.33 lbs)
  • 12VDC or PoE (IEEE 802.3af) Power Input


High Quality, High Definition:
Outfitted with a progressive Scan 2 megapixel HD CMOS image sensor the Geovision GV-EFD2100 Target Series produces up to 25fps in full 1080P HD format. Excellent Image quality is the combination of this low lux HD image sensor and added technologies like True Day/Night IR Cut-filter plus Smart IR that automatically adjust for perfect exposure of subjects. This IR Illumination is also effective up to 50ft giving powerful protection of long hallways to open rooms. The model also offers a 3.8mm (GV-EDF2100-2F) or 2.8mm (GV-EDF2100-0F) Megapixel lens selection for those different areas of the installation. There are a variety of other beneficial image enhancements and controls available on this IP camera notable perks include basic Wide Dynamic Range (WDR) rating to sometimes highly helpful configurations like image orientation.

Advanced Surveillance System:
Regardless of its size, without concern for its cost, the Geovision GV-EFD2100 is an economic IP Camera to be proud of. It provides all the primary imaging needs for 24/7 video surveillance. But even better than that, it seems to lack little to nothing of all the primary abilities you might expect in a high grade network security camera. Certainly Dual Streaming with individually set streams of H.264 or MJPEG to on-board Tamper plus Motion Detection, Privacy Masking and Network Security features are all included. Multiples of IT protocols such as RTSP, QoS, FTP, HTTPs, UPnP and more allow sophisticated networking requirements. The units Web Browser interface allows all sorts of monitoring options and easy to navigate menus for fine tuning.

Superior Design:
Geovision GV-EDF2100 1080P Mini Dome IP Camera is a practically everything you can ask for in a small form factor, high powered yet low cost IP security camera. The model offers a flexible mounting options with various accessories though one should consider it is a 2-axis camera. The units utilize PoE power input or alternatively can run off 12VDC. The ultra-small form factor is great for discreet IP security camera system designs and benefits like Geovision GV-NVR software at no extra cost are the stepping stones to a fully professional, high performing security camera system. ONVIF compliance is simply another advantage allowing 3rd party systems to also integrated Geovision IP cameras.

Inside the Box:

Target Mini Fixed Dome
Screw x 2
Screw Anchor x 2
Focus adjustment clip
GV-IPCAM H.264 Quick Start Guide
GV-IPCAM H.264 Software DVD
GV-NVR Quick Start Guide
GV-NVR Software DVD


Optional Mounting Accessories:

GV-Mount900 Wall Mount Bracket
GV-Mount909 Wall Mount Bracket (Feed Through Cable)
GV-Mount910 Power Box Mount Bracket
GV-Mount913 Power Box Mount Bracket

Two Available Models:

EDF2100-0F2 2.8mm
EDF2100-2F3 3.6mm

Last Updated: March 22, 2015
