Geovision GV-EFD1100 1.3MP WDR IR Mini Dome IP Camera

  • Geovision GV-EFD1100 IP Camera IR Mini Dome
  • Geovision GV-EFD1100 IP Camera IR Dome wall mounted
  • Geovision GV-EFD1100 IP Camera IR Dome ceiling mounted

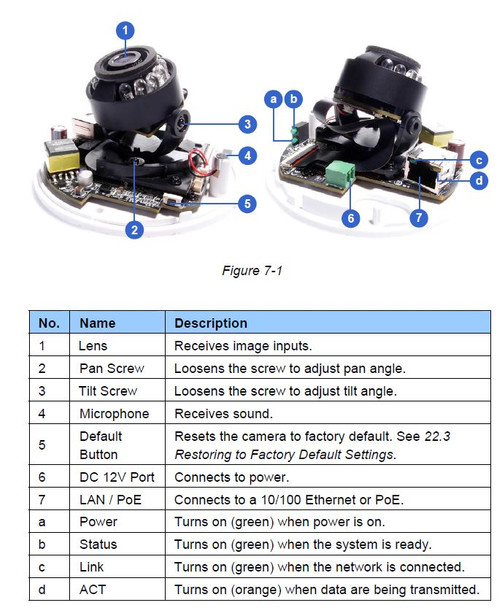

  • Geovision GV-EFD1100 IP Camera Functions

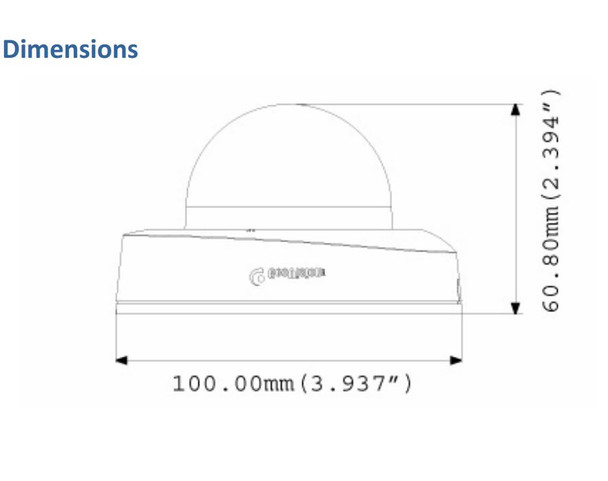

  • Geovision GV-EFD1100 Mini Dome Camera Dimensions
  • Geovision GV-EFD1100 Mini Dome with GV-Mount900
  • Geovision GV-EFD1100 Mini Dome with GV-Mount909
  • Geovision GV-EFD1100 Mini Dome with GV-Mount910 or GV-Mount913
  • GV-Mount910 or GV-Mount913 (not shown with Mini Dome)
Calculated at checkout

Product Description

Geovision GV-EFD1100 1.3MP IR Mini Dome IP Camera is an excellent selection for indoor IP surveillance requiring round the clock, high performance at a reasonable cost. The units are loaded with qualifying factors like sleek low profile design that includes True Day/Night operation that is further enhanced with IR Night Vision to WDR function. Offered with a 3.6mm or 2.8mm lens units ideal for hallways or wide area coverage are selectable and likewise the units include countless other professional settings. In-depth image adjustment to multiple IT network protocols are supported to meet the widest range of demands. With advantages found on all levels for such an attractive price it is highly unlikely you could be unsatisfied with this product. The combination of Geovision GV-NVR at no extra cost is just another of many points that prove it a best in class choice for pro security systems.

Geovision GV-EFD1100 Main Features:

  • 1/3” progressive scan low lux CMOS
  • Dual video streaming H.264 or MJPEG
  • Real-time 30fps at 1280 x 1024 (1.3 Megapixel)
  • Intelligent IR avoids over Exposure 15m (50ft) effective Infrared
  • Day/Night function auto IR-Cut filter)
  • Optional Megapixel Lens: GV-EFD1100-0F 2.8mm 93° HFOV or GV-EFD1100-2F 3.8mm 64° HFOV
  • 2-axis mechanism (pan / tilt)
  • Built-in microphone easy audio surveillance
  • Wide Dynamic Range (WDR) For High Contrast Scene
  • Pro Functions: Defog, Motion detection, Tampering alarm, Text overlay and Privacy mask
  • IP address filtering, HTTPs, FTP, NTP, QoS, UPnP, RTSP, SNMP, SMTP, DynDNS and more
  • NAS Recording via GV-Edge Recording Manager (Windows & Mac)
  • Support for Mobile Viewing: iPhone, iPad, Android & 3GPP
  • Feature Packed Web interface that easy to navigate
  • ONVIF (Profile S) conformance for easy third party security system integration
  • 12VDC or PoE (IEEE 802.3af) Power Input
  • Dimensions: ø 100mm x 60mm (3.9" x 2.4”)
  • Weight: 148 grams (0.33 lbs)
  • Operating Temperature: 0 °C ~ 45 °C (32 °F ~ 113 °F)

Tow Optional Models:

GV-EFD1100-0F Fixed 2.8mm F/2.0
GV-EFD1100-1F Fixed 3.8mm F/1.8


Quality Video Surveillance:
Utilizing a low lux 1.3 Megapixel HD progressive scan CMOS sensor coupled with a True Day/Night Mechanical IR Cut-filter this unit at its base is a powerful capture solution. The addition of intelligent IR LED illumination and enhancements like WDR (Wide Dynamic Range) ensure crisp, clear video security round the clock. The Geovision GV-EFD1100 Mini IR Dome IP Camera is also built with a comprehensive web interface that includes detailed image settings to dual streaming with H.264 or MJPEG codecs. Real-time 1.3 Megapixel Resolution (1280 x 1024) at up to 30fps this device can also meet 720P HD video format standards. All together the Geovision Target series Dome IP Security Cameras provide a full spectrum of the most desirable features for low price yet quality results rivalling higher cost units.

Intelligent Design:
A smart design is apparent in all aspects of this mini dome including a well-developed web interface rich with features and selections, this compact unit provides a superb combination of pro-grade attributes. Multiple Network Protocols are supported from RTSP to QoS and ONVIF standards for easy integration with any professional security camera system. So long as mounting on a flat vertical or horizontal surface, the 2-axis gimbals allows adequate adjustment and optional 2.8mm or 3.6mm Megapixel Lens allow wide angle to a more narrow field of view (FOV) for better adaptation. Benefits are discovered with countless on-board technologies like Privacy Masking, Motion Detection, and Tamper Detection to NAS Recording or support for Mobile Devices. The list goes on, such as a built-in Microphone to expand your video surveillance with audio surveillance for comprehensive area awareness.

Easy, Flexible Install:
Installation is also easy with PoE (Power over Ethernet) support yet flexibility is included with optional 12VDC power input. The Mini Dome Camera is also available with a few different mounting accessories like wall mount brackets and electrical box adapter’s mounts. Super Low profile at no more than 2 1/2 inches tall, this Mini IR Dome IP Camera is the perfect, discreet IP surveillance system for practically any indoor requirement. Super Easy to install with Geovision's GV-NVR software and there is no added licensing cost.

In the Box:

Target Mini Fixed Dome
Screw x 2
Screw Anchor x 2
Focus adjustment clip
GV-IPCAM H.264 Quick Start Guide
GV-IPCAM H.264 Software DVD
GV-NVR Quick Start Guide
GV-NVR Software DVD

Last Updated March 22, 2015
