Dahua OEM IPC-HDBW4421F-AS 4MP IR Vandal Dome IP Camera

  • Dahua OEM HDBW4421F-AS 4MP IR Dome IP Camera IP67 IK10
  • Dahua OEM HDBW4421F-AS 4 MegaPixel IR Dome side and top view

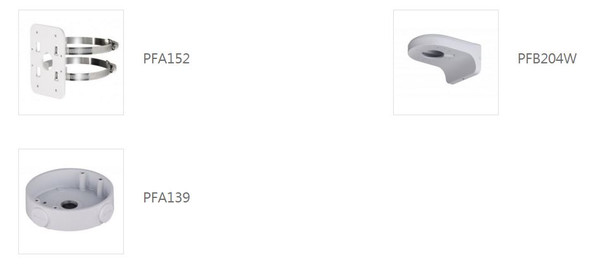

  • Dahua OEM HDBW4421F-AS 4MP IR Dome Optional Accessories

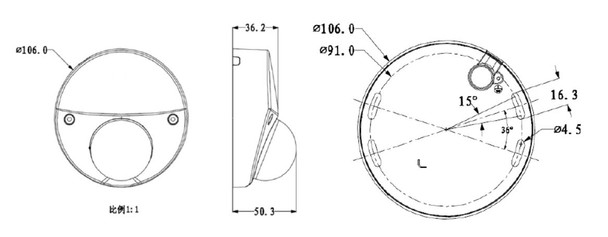

  • Dahua OEM HDBW4421F-AS 4MP IR Dome Dimensions
Calculated at checkout

Product Description

Dahua OEM IPC-HDBW4421F-AS 4 Megapixel IR Vandal Mini Dome IP Camera is a powerhouse in an ultra-compact or sometimes called "wedge" casing with a super compact dome cover. This unit is particular model Dahua IPC-HDBW4421F-AS28 is fully loaded and for starts yield great High Definition 4 megapixel resolution at up to 20fps. At 3 Megapixel and below you can achieve a full 30fps real-time and of course there is multi-streaming with multiple codec selections like H.264 compression. Superbly discreet this model is equipped with a 2.8mm ultra-wide view lens and boast true day/night, IR LED night vision plus powerful Wide Dynamic Range (WDR). Additionally it’s packed with intelligent attributes such as Video Analytics, On-board SD card Recording, Two Way Audio and I/O external device support. If that’s not enough the device is also very rugged with solid outdoor and high impact ratings. Be it part of larger system or as a stand-alone IP Surveillance System the products quality, performance and cost are sure to satisfy.

OEM Dahua IPC-HDBW4421F-AS28 Main Features:

  • 1/3” 4 Megapixel Progressive CMOS Image Sensor
  • H.264 or MJPEG dual streaming multi-codec
  • 20fps at 4MP (2688×1520) and 30fps at 3MP (2304x1296) or below
  • 2.8mm wide angle fixed lens w/HFOV 106° (3.6mm, 6mm optional)
  • On-board IR LED night vision with effective range to 20 meters
  • Built-in Video Analytics Smart Detection such as Tripwire, Intrusion, Missing, Face, etc.
  • True WDR (120dB) and Day/Night (ICR) plus in-depth video control with 3DNR, AWB, AGC, BLC, Shutter, etc.
  • Remote Monitoring: Web Interface, CMS (DSS/PSS) Client Software & DMSS Mobile application
  • Common Protocol Support including: HTTPS, SSL, UPnP, RTSP, DNS, PPPOE, DDNS, FTP, QoS, ONVIF and more
  • I/O Alarm Input/Relay Output
  • Two Way Audio with I/O
  • Micro SD Card Slot for local storage (Max memory 128GB)
  • Rugged IP67 Weatherproof and IK10 High Impact plus Vandal Proof
  • Operating Range: -30°C~+60°C, Less than 95% RH
  • Dimensions: Φ106mm× 50.3mm or Φ4.17" x 1.98"
  • Weight: 0.35kg or 0.77 lbs.
  • Power: 12VDC or PoE 802.3af


Optimal Video Performance in the smallest form factor:
The Dahua IPC-HDBW4421F-AS28 Vandal Mini Dome IP Cameras seem to have everything you could ask for in this ultra-compact security camera design. The device is loaded with professional attributes and the ability to fine tune them, while out of the box it’s built to perform well in nearly any scene. The latest 4 Megapixel Progressive Scan CMOS image sensor couples with mechanical Day/Night plus integrated IR LED Array for strict 24/7 video security. The added image enhancements of a 120dB WDR and powerful 3DNR (2D+3D digital noise reduction) conquer adverse lighting and low light conditions of all kinds. This specific model features the 2.8mm wide angle Fixed lens selection and yields a wonderful 106° HFOV for wide area coverage. All of this again with high frame rate, high definition video like 4 megapixel at 20fps and resolutions like 3MP, 1080P, 720P or lower at a full 30fps Real-time. Choose from several H.264 codecs as well as MJPEG and individually configure multiple video streams for great versatility.

Great Feature Set with New Age Intelligence:
The Dahua IPC-HDBW4421F-AS28 4MP Vandal Mini IR Dome IP Camera adds great imaging with superb functionality. Administrative benefits like support for numerous leading IT protocols includes everything from HTTPS, SSL and IP Filtering to UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, FTP, QoS and more. Universal Compliance with support for standards like ONVIF also promise simple integration with leading 3rd party security camera systems. Dahua IP Cameras like their NVRs, DVRs and similar products feature a common Web Interface design that is highly intuitive as well as capable. Models such as this allow a completely stand-alone IP Surveillance system with addition of an SD card for local recording the IP Camera's web interface alone provides pro operations. Free CMS Client Software to Mobile Applications likewise enable effective and convenient remote video monitoring.

Great Construction, Quality and Cost:
Despite a low cost the Dahua IPC-HDBW4421F-AS28 4MP Vandal Mini IR Dome IP Camera delivers all the desirable attributes and maintains a quality build. Manufactured to withstand high impact it holds an IK10 rating and when it comes to harsh environments it doesn't get much better than its IP67 outdoor rating. Installers also can enjoy flexible install with both 12VDC and PoE Power support. The unit’s optional mounts like a wall mount, pole mount or round conduit back-box allow easy adaptation to all sorts of indoor or outdoor install needs. Overall, this mini dome IP security camera is well equipped to handle a wide range of applications with some clear advantages to alternative selections.

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specs are otherwise the same as referenced model.

Last Updated January 13, 2016
