Bosch FlexiDome HD NDN-921-V03-IP Vandal-Resistant IP Dome Camera IVA

  • Bosch FlexiDome HD NDN-921-V03-IP CCD 720 Vandal Resistant IP Dome Camera
  • Bosch FlexiDome HD NDN-921-V03-IP Key Features
  • Bosch FlexiDome HD NDN-921-V03-IP dimensions

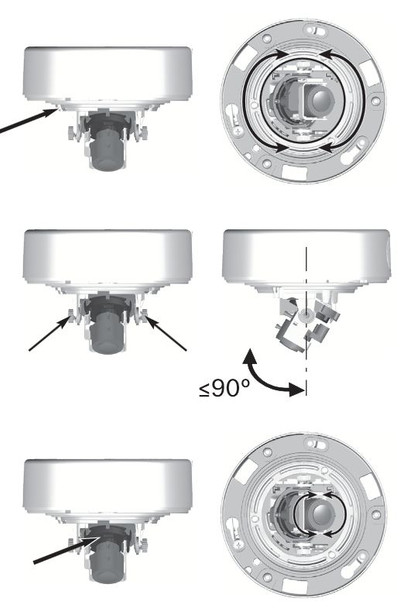

  • Bosch FlexiDome HD NDN-921-V03-IP 3 axis operation
  • Bosch FlexiDome HD NDN-921-V03-IP Flush mount measurement
  • Bosch FlexiDome HD NDN-921-V03-IP Surface Mount
  • Bosch IVA (intelligent Video Anayltics)
  • Bosch FlexiDome HD NDN-921-V03-IP mounting options 1
  • Bosch FlexiDome HD NDN-921-V03-IP mounting options 2
Price:
923.50
SKU:
NDN-921-V03-IP
Brand:


Product Description

Bosch FlexiDome HD NDN-921-V03-IP Vandal-Resistant IP Dome Cameras with IVA provide superior edge-based video analytic and superb HD Video Surveillance Technology. The units includes the latest 720p HD CCD Image sensor, couple with exceptional Bosch image technology like 15-Bit and XF Dynamic video processing. The units enhanced CCD Imaging, DNR (Digital Noise Reduction), Digital Slow Shutter and True Day/Night operation enable powerful IP video security even in low light. The Bosch FlexiDome HD 720p camera further provide H.264 and MJPEG codec with multi-streaming support and high frame rate 30fps Real-time video streams.  The unit is outfitted with a 3-9mm Varifocal DC Auto Iris Lens and offers 3 axis camera rotation for perfect image positioning.
The Bosch FlexiDomeHD with IVA (intelligent video analysis) is a model offering multiple function video analytics for the highest quality in alarm accuracy and advanced detection abilities. The Bosch FlexiDome 720p HD Vandal Dome Cameras also supply a built-in memory card slot for high capacity on-board local recording. Additionally the Bosch FlexiDome Cameras support Bosch mobile applications and remote pc software directly for a complete video surveillance system in a single camera. The device is designed and has exceeded to provide all possible professional needs, while maintaining a reasonable cost. Convenient attributes like support for Audio, Alarm inputs, relay output and monitor output make for flexible integration. Other benefits like ONVIF Compliance, Six preset image modes, triple power input option make the camera easily adaptable to a wide range of IP Camera System needs. The Camera is provided in a surface or flush mount style dome and also has multiple mounting accessories for even further agility.

Bosch FlexiDome NDN-921-V03-I Main Features:

  • 720P HD (High Definition) CCD HD Sensor
  • Twice the speed of Real-time at 60fps Multi-codec streaming of H.264 and MJPEG
  • Bosch Advanced 15-bit and XF Dynamic Image Processing
  • True Day/Night with SensUP and Digital Noise Reduction
  • Bosch IVA Intelligent Video Analysis full Edge based Advanced Video Analytics (Motion+ model optional)
  • 3-9mm Varifocal Lens Options with Automatic Back-focus for optimal imaging day and night.
  • Vandal Resistant High Impact IK10 Tamper proof design.
  • Weatherproof IP66 Outdoor Ready.
  • Flush or Surface mounting model options and accessories.
  • On-Board Memory Card Slot for local Recording.
  • ONVIF Compliant offers universal integration for third party security camera systems.
  • Flexible power input with 12VDC, 24VAC or PoE (power over Ethernet) support.


Bosch FlexiDome NDN-921-V03-PS Technical specifications:

Electrical
Power Supply
24 VAC ±10% 50/60 Hz
12 VDC ±10%
Power-over-Ethernet 48 VDC nominal
Current Consumption
550 mA | 700 mA IVA (12 VDC)
550 mA | 700 mA IVA (24 VAC)
200 mA (PoE 48 VDC)
Power Consumption
6.6 W | 8.4 W IVA (12 VDC)
8.2 W | 10.4 W IVA (24 VAC)
9.6 W (PoE 48 VDC)
Sensor
Type
1/3-inch CCD
Active Pixels
1280 x 960
Network Video Output
Video compression
H.264 (ISO/IEC 14496-10); M-JPEG, JPEG
Streaming
Four individually configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth.
Two independently configurable H.264 streams
Stream 1
:
H.264 Main Profile (MP) 720p 25/30
Stream 2
:
H.264 Baseline Profile plus (BP+)
or
H.264 MP Standard Definition (SD),
or
Copy of stream 1
Two additional streams
M-JPEG stream
and
High Definition (HD) I-frame only stream.
Data rate
9.6 Kbps to 10 Mbps
HD Resolution (H x V)
720p: 1280 x 720
480p Resolution (H x V)
Encoding: 704 x 480
Displayed: 854 x 480
240p Resolution (H x V)
Encoding: 352 x 240
Displayed: 432 x 240
Overall IP Delay
Min. 120 ms, Max. 240 ms
GOP structure
IP, IBP, IBBP
Sensitivity
(3200 K, scene reflectivity 89%)
Minimum illumination (30 IRE)
Color
1 lx
Color + SensUP 10x
0.1 lx
Monochrome
0.4 lx
Monochrome +
SensUP 10x
0.04 lx
Day/Night
Color, Mono, Auto
Pre-configured modes
6 preset programmable modes
Dynamic range
70 dB
Dynamic engine
XF-Dynamic, SmartBLC
SmartBLC
On / Off
AGC
AGC On or Off (0 - 35 dB) selectable
White Balance
ATW (2500 to 10000K), ATW hold and
manual
Shutter
Auto (1/50 [1/60] to 1/10000) selectable
Auto (1/50 [1/60] to 1/50000) automatic
Fixed selectable
Sensitivity up
Adjustable from Off up to 10x
Auto Black
Automatic continuous, Off
DNR Dynamic Noise Reduction
Auto, On/off selectable
Sharpness
Sharpness enhancement level selectable
Privacy Masking
Four independent areas, fully programmable
Video Motion Analysis
Motion+ or IVA
Test Pattern Generator
Color bars 100%, Gray scale 11-step,
Sawtooth 2H, Checker board, Cross hatch, UV plane
Synchronization
Internal, Line Lock, HV-lock and Genlock
(Burst lock) selectable
Audio
Standard
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex
Input/output
Audio
1 x mono line in, 1 x mono line out
• signal line in
9 kohm typical, 5.5 Vpp max
• signal line out
3.0 Vpp at 10 kOhm typical,
2.3 Vpp at 32 Ohm typical,
1.7 Vpp at 16 Ohm typical
Alarm
1 non-isolated closing contact
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-up resistor)
Relay
1 output
• voltage
30 VAC or +40 VDC
Maximum 0.5 A continuous, 10VA
Software Control
Unit Configuration
Via web browser or Configuration Manager
Flicker Control
50/60 Hz, selectable
Software update
Flash ROM, remote programmable
Network
Protocols
RTP, RTSP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, 802.1x, UPnP
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/full duplex, RJ45
PoE SUPPLY
IEEE 802.3af compliant
Optical
Varifocal lens
IR corrected, manual zoom and focus
adjustment
Iris control
Automatic iris control
Viewing angle
92.9º to 31.7º horizontal
67.9º to 23.7º vertical
Mechanical
Weight
0.67 kg (1.48 lb.)
+SMB: 1.29 kg (2.84 lb.)
Mounting
Flush mount or surface mount
Color
White (RAL9010) trim ring with black inner
liner
Adjustment range
360º pan, 90º tilt, ±90º azimuth
Dome bubble
Polycarbonate, clear with UV blocking anti-scratch coating
Trim ring
Aluminum
Environmental
Motion+ versions
IVA versions
Operating temperature
default (with heater off)
-20 ºC to +50 ºC
(-4 ºF to +122 ºF)
cold start
-20 ºC to +45 ºC
(-4 ºF to +113 ºF)
cold start
Operating temperature
(with heater on)
-50 ºC to +50 ºC
(-58 ºF to
+122 ºF)
-50 ºC to +45 ºC
(-58 ºF to
+113 ºF)
Storage temperature
-50 ºC to +70 ºC (-58 ºF to +158 ºF)
Operating humidity
5% to 93% relative humidity
Storage humidity
Up to 98% relative humidity
Impact protection
IEC 60068-2-75 test Eh, 50 J
EN 50102, exceeding IK 10
Water/dust protection
IP 66 and NEMA-4X
Environmental
Test Method
EN50130-5:1999 Alarm systems Part 5
(Class 4 Outdoor in general)



Order Info:


NDN-921-V03-IP FlexiDomeHD 720p
1/3-inch Dome, HD 720p, H.264, IVA enabled, PoE
Order number
NDN-921-V03-IP

NDN-921-V03-IPS FlexiDomeHD 720p
1/3-inch Dome, HD 720p, H.264, IVA enabled, PoE,
Surface mount
Order number
NDN-921-V03-IPS

Accessories:

LTC 9213/01 Pole Mount Adapter
Pole mount adapter with stainless steel straps, light
gray finish
Order number
LTC 9213/01
UPA-2410-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 10 VA Out
Order number
UPA-2410-60
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number
UPA-2430-60
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
Order number
UPA-2420-50
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license
is required only once per installation. It enables
encrypted communication between BVIP devices and
management stations.
Order number
MVS-FENC-AES
MVC-FIVA4-CAM
IVA 4.xx/5.xx VCA software license for IP camera/dome
(e-license)
Order number
MVC-FIVA4-CAM
Accessories
VDA-WMT-DOME Wall Pendant Mount Bracket
Wall pendant mount bracket for FlexiDome cameras
Order number
VDA-WMT-DOME
VDA-CMT-DOME Corner Mount Bracket
Corner mount bracket for FlexiDome cameras
Order number
VDA-CMT-DOME
VDA-PMT-DOME Pendant Pipe Mount Bracket
Pendant pipe mount bracket for FlexiDome cameras
Order number
VDA-PMT-DOME
VDA-455TBL Tinted bubble
Tinted bubble for FlexiDome series
Order number
VDA-455TBL
VDA-455CBL Clear bubble
Clear Bubble for FlexiDome series
Order number
VDA-455CBL
